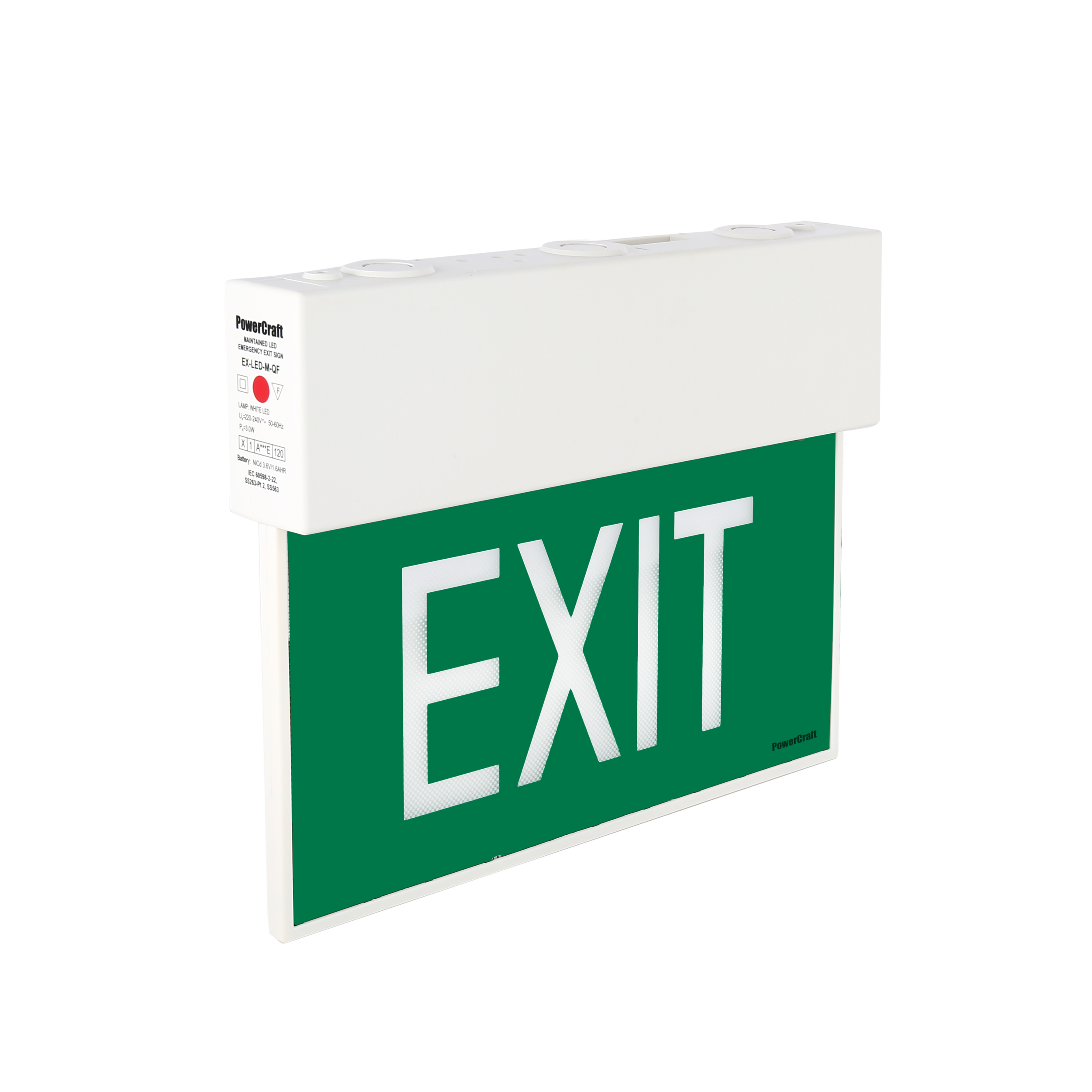

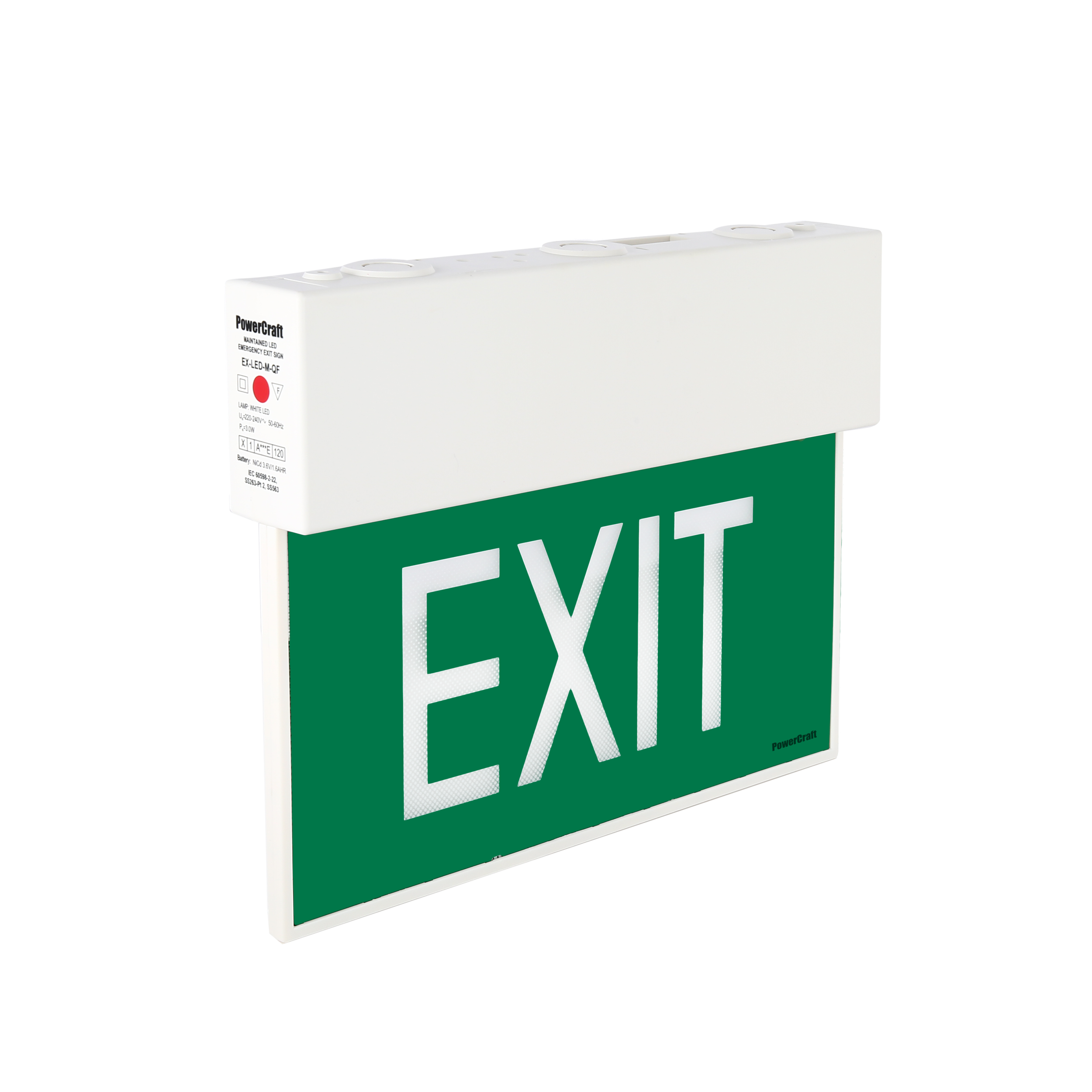

EX-LED-M-QF

Quick Fit Surface LED

Ordering Guide

Legend Single Sided Double Sided

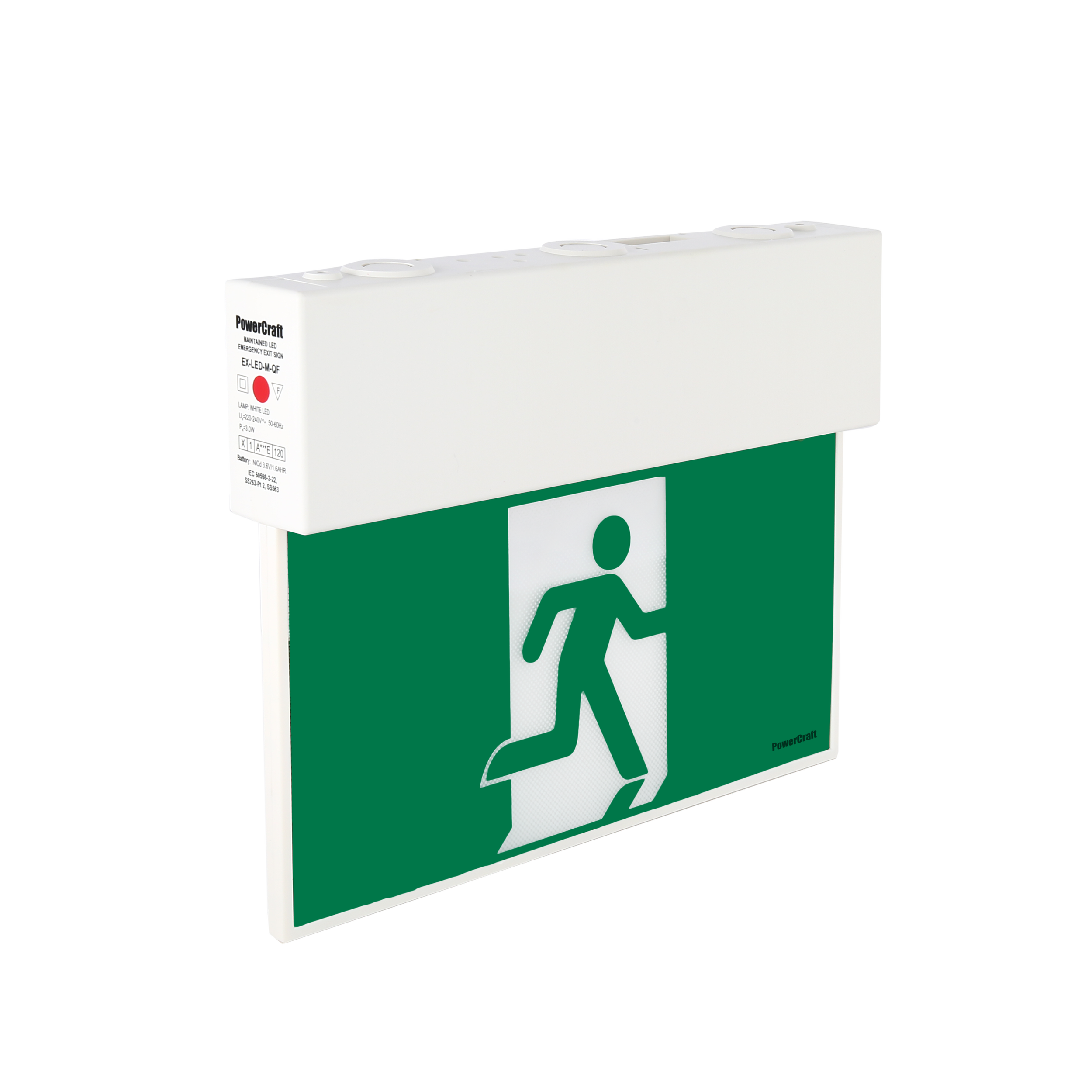

EX-LED-M-QF-S-RM EX-LED-M-QF-D-RM
EX-LED-M-QF-SR-RM EX-LED-M-QF-DR-RM
EX-LED-M-QF-SL-RM EX-LED-M-QF-DL-RM
EX-LED-M-QF-S EX-LED-M-QF-D
EX-LED-M-QF-SR EX-LED-M-QF-DR
EX-LED-M-QF-SL EX-LED-M-QF-DL

Aesthetic and Fuctional Aspects Are Met By The Quick Fit Design

  • Designed for fast installation and easy maintenance
  • Ultra bright white LEDs meeting ISO safety colour requirements
  • Exceeds IEC 60598-2-22 and SS 563 brightness requirements
  • Extra low power consumption
  • High quality, Long Life SMD LED module
  • Numerous installations options availble
  • Series connection of LEDs achieve a high level of uniform light distribution and ensuring maximum life span
  • Low battery voltage cut-off with latch function, to elimate battery over discharge
  • Durable fire retardant construction (UL94) to combat corrosion
  • Lightweight ergonomics design boost productivity of installers
Mode of Operation Maintained
Lamp 1.2W White LED module with burning life-span > 50,000 hours
Rated Duration 3 Hours
Mains Supply 220-240 Volts, 50-60Hz
Power Consumption 3W (Total standby power inclusive of LED converter)
Battery High Temperature Nickel Cadmium
Charger Regulated variable rate
Charge Monitor LED
Test Facility Micro switch
Mounting Suspended / Surface ceiling / Surface wall
Safety Features Low battery voltage cut off to prevent over discharge
Diffuser Acrylic plate (fire retardant)
Fitting Construction Injection moulded with fire retardant (UL94), high impact material
Weight Approximately 1.2 Kg

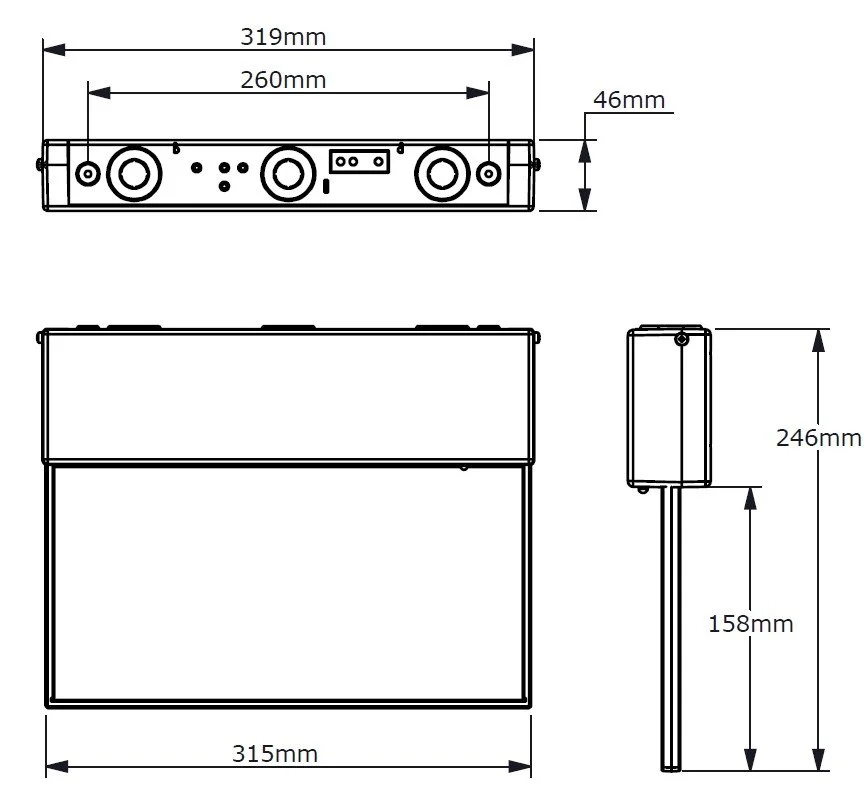

Dimensions 243mm (H) x 320mm (W) x 45mm (D)
Standards / Compliance SS IEC 60598-2-22, SS 563
