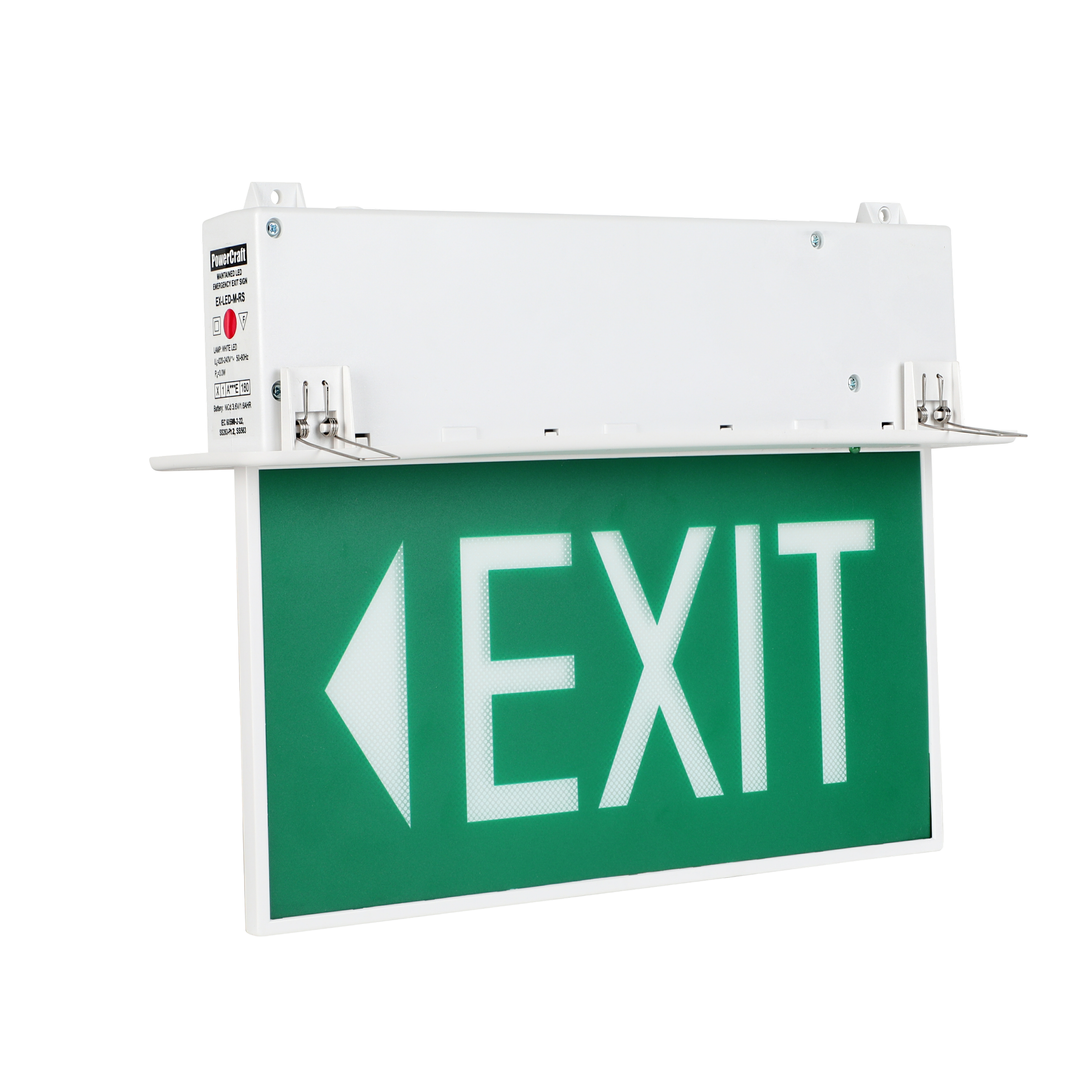

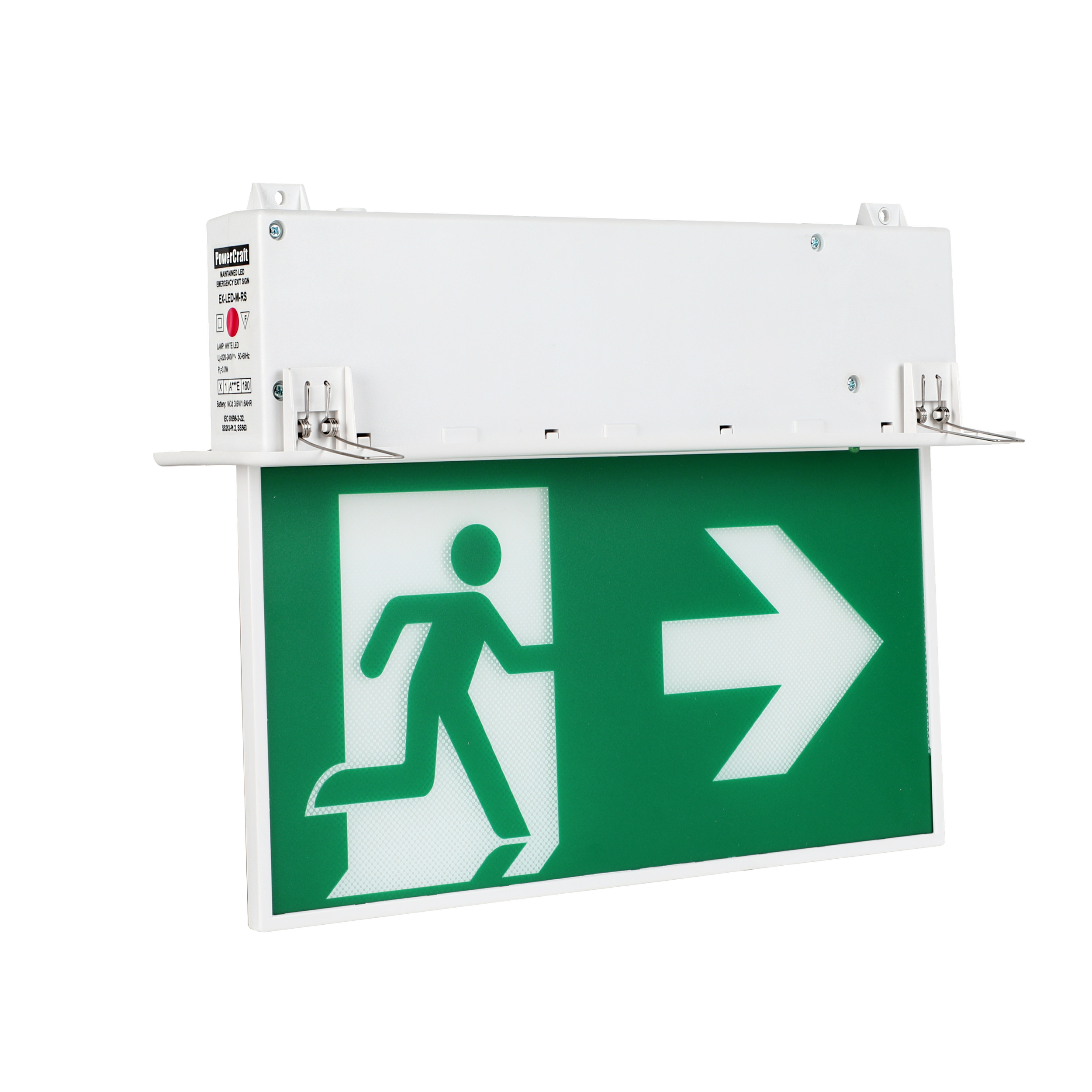

EX-LED-M-RS

Quick Fit Recess LED

Datasheet

Collaborating Safety With Style In An Emergency By The Quick Fit Design

Designed for fast installation and easy maintenance
Ultra bright white LEDs meeting ISO safety colour requirements
Exceeds IEC 60598-2-22 and SS 563 brightness requirements
Extra low power consumption
High quality, Long Life SMD LED module
Series connection of LEDs achieves a high level of uniform light distribution and ensuring maximum life span
Low battery voltage cut-off with latch function, to elimate battery over discharge
Durable fire retardant construction (UL94) to combat corrosion
Lightweight ergonomics design boost productivity of installers

Mode of Operation	Maintained
Lamp	1.2W White LED module with burning life-span > 50,000 hours
Rated Duration	3 Hours
Mains Supply	220-240 Volts, 50-60Hz
Power Consumption	3W (Total standby power inclusive of LED converter)
Battery	High Temperature Nickel Cadmium
Charger	Regulated variable rate
Charge Monitor	LED
Test Facility	Micro switch
Mounting	Recessed Ceiling
Safety Features	Low battery voltage cut off to prevent over discharge
Diffuser	Acrylic plate (fire retardant)
Fitting Construction	Injection moulded with fire retardant (UL94), high impact material
Weight	Approximately 1.2 Kg
Dimensions	243mm (H) x 320mm (W) x 45mm (D)
Standards / Compliance	SS IEC 60598-2-22, SS 563
