TED10NM

Twin-spot LED

Ordering Guide

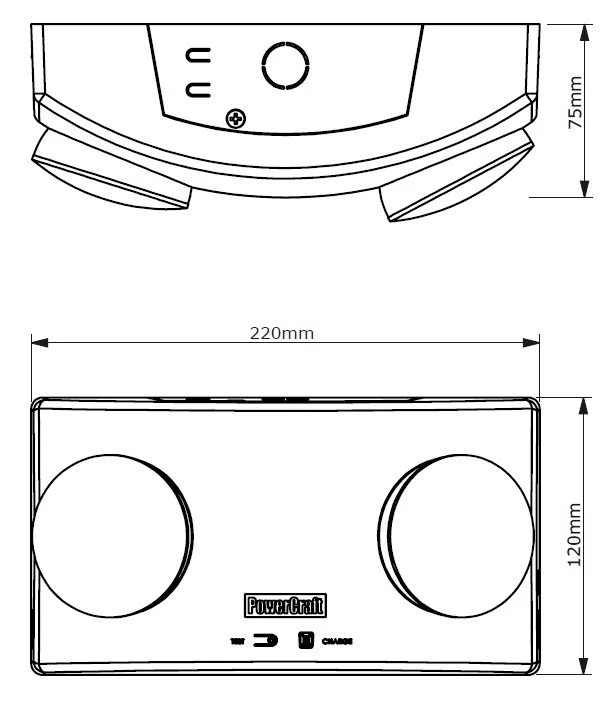

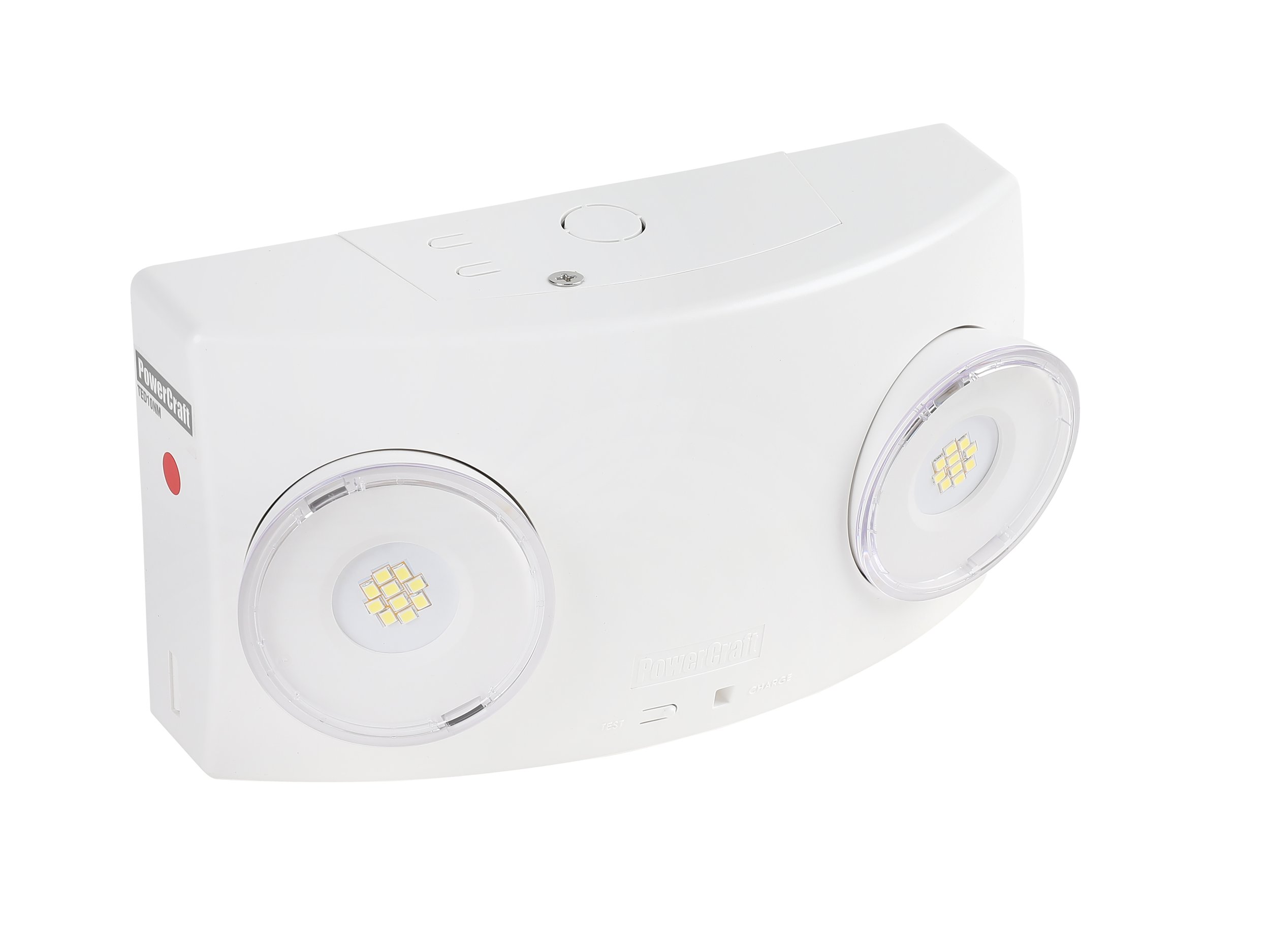

TED10NM

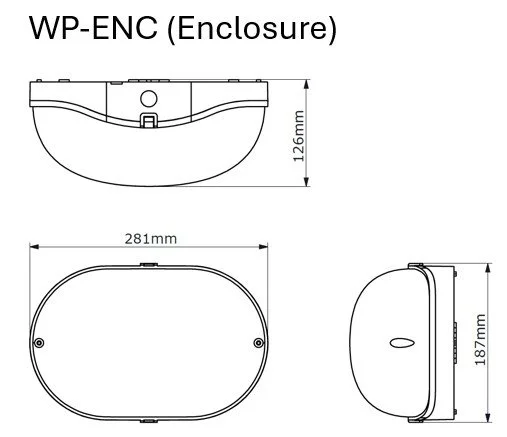

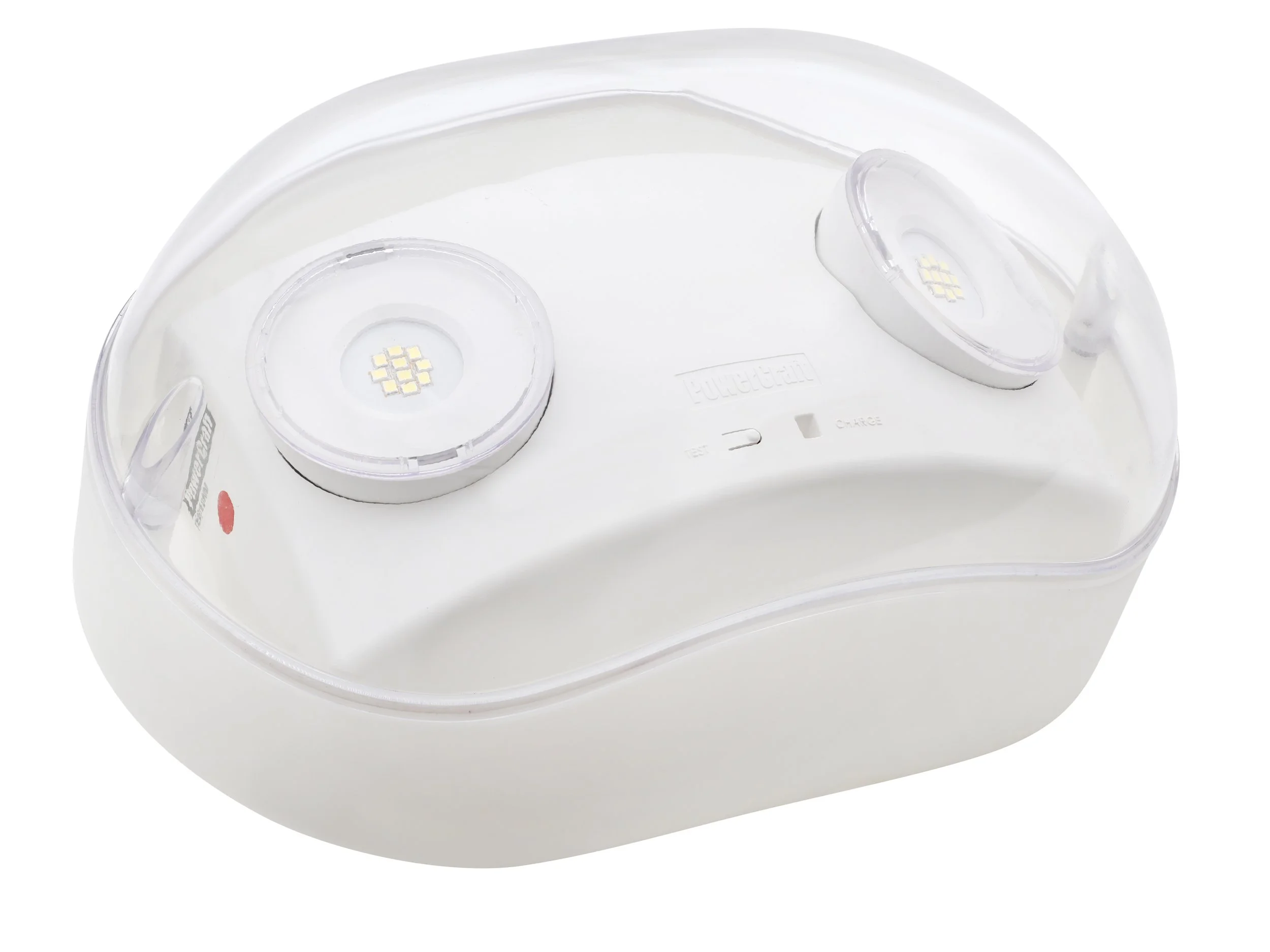

TED10NM (c/w weatherproof enslocure)

Adjustable Lens of Our Twin-Spot is Perfect For High Risk Applications And Large Open Areas

  • Snap in design ensures fast installation and easy maintenance
  • Fire retardant (UL94) housing and UV stabilized diffuser
  • Low heat generation, ensures longer and reliable service life
  • Low battery voltage cut-off with latch function, to elimate battery over discharge
  • Charge LED indicator and test switch available
  • Perfect to use in large open areas and high risk task areas
  • Adjustable lens optimum for matching light output to applications
  • Weatherproof (IP65) enclosure is available
Mode of Operation Non-Maintained
Lamp 2 x 3W Power LED module
Rated Duration 2 Hours (3 Hours on request)
Mains Supply 220-240 Volts, 50-60Hz
Power Consumption < 1.5W
Battery High Temperature Nickel Cadmium
Charger Regulated variable rate
Charge Monitor LED
Test Facility Micro switch
Safety Features Low battery voltage cut off to prevent over discharge
Fitting Construction Moulded Fire retardant (UL94) housing and diffuser
Weight Approximately 1.5 Kg
Dimensions 310mm (W) x 140mm (H) x 105mm (D)
Standards / Compliance SS IEC 60598-2-22, SS 563
