3. ECL-LED1 / ECL-LED3

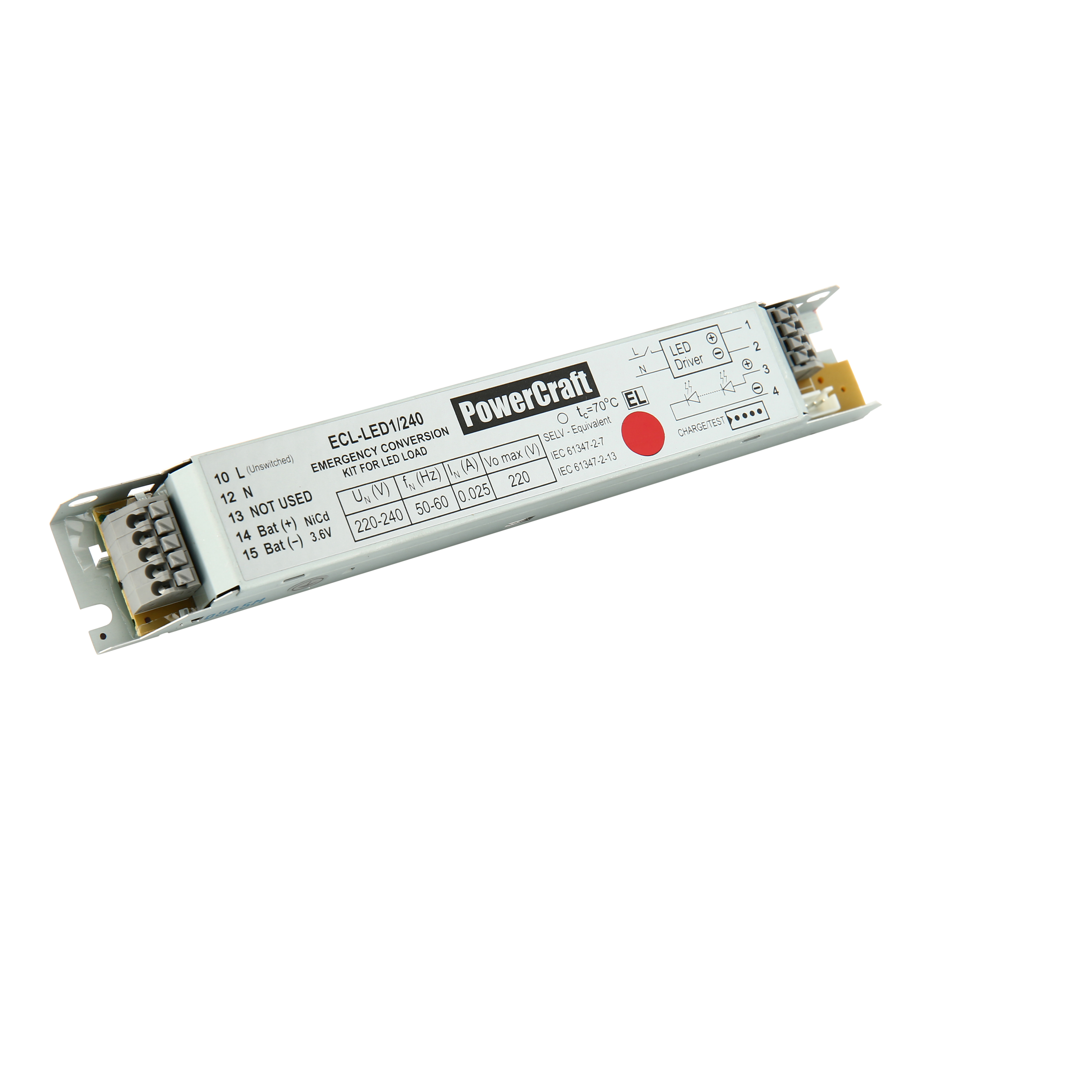

Picture of ECL-LED1 / ECL-LED3
Picture of ECL-LED1 / ECL-LED3 Picture of ECL-LED1 / ECL-LED3

ECL-LED1 / ECL-LED3

LED Range

Ordering Guide

Ordering Code Battery Type Battery Configuration
ECL-LED1/240/3.6/1.6-A NiCd 3.6V 1.6AH Cane
ECL-LED1/240/3.6/1.6-S NiCd 3.6V 1.6AH Side by Side
ECL-LED1/240/3.6/2.5-A NiCd 3.6V 2.5AH Cane
ECL-LED1/240/3.6/2.5-S NiCd 3.6V 2.5AH Side by Side
ECL-LED3/240/2.4/1.6-A NiCd 2.4V 1.6AH Cane
Datasheet

Our Slimmest LED Conversion Kit That is Compact And Efficient

  • LED load
  • Extra low standby power consumption
  • Suitable for a wide range of LED load voltage range
  • Regulated charger output
  • Able to power a LED light fitting at a reduce luminous flux for two hours or more
  • Automatically activated in the event of power cuts
  • Offer a good luminous flux to facilitate the evacuation
Mode of Operation Maintained / Non maintained
Lamp Type 3 - 70V LED load
Rated Duration 2 Hours / 3 Hours
Supply Voltage 220 - 240V, 50 - 60Hz
Supply Current 20mA
Power Consumption < 2.0W
Trickle Charge 80mA / 125mA
Battery Charger Regulated variable rate
Battery Protection Low Battery Voltage Cut-off (Prevents Battery Over Discharge)
Battery Type High Temp Nickel-Cadmium (NiCd)
Charge Monitor LED
Test Facility Momentary test switch
Casing Construction Electro-galvanised steel
Max. Casing Temp, Tc 70°C
Max. Ambient Temp, Ta 50°C
Standards / Compliance IEC 61347-2-7 (SS 490-2-7), IEC 61347-2-13, IEC 62384, SS 563
