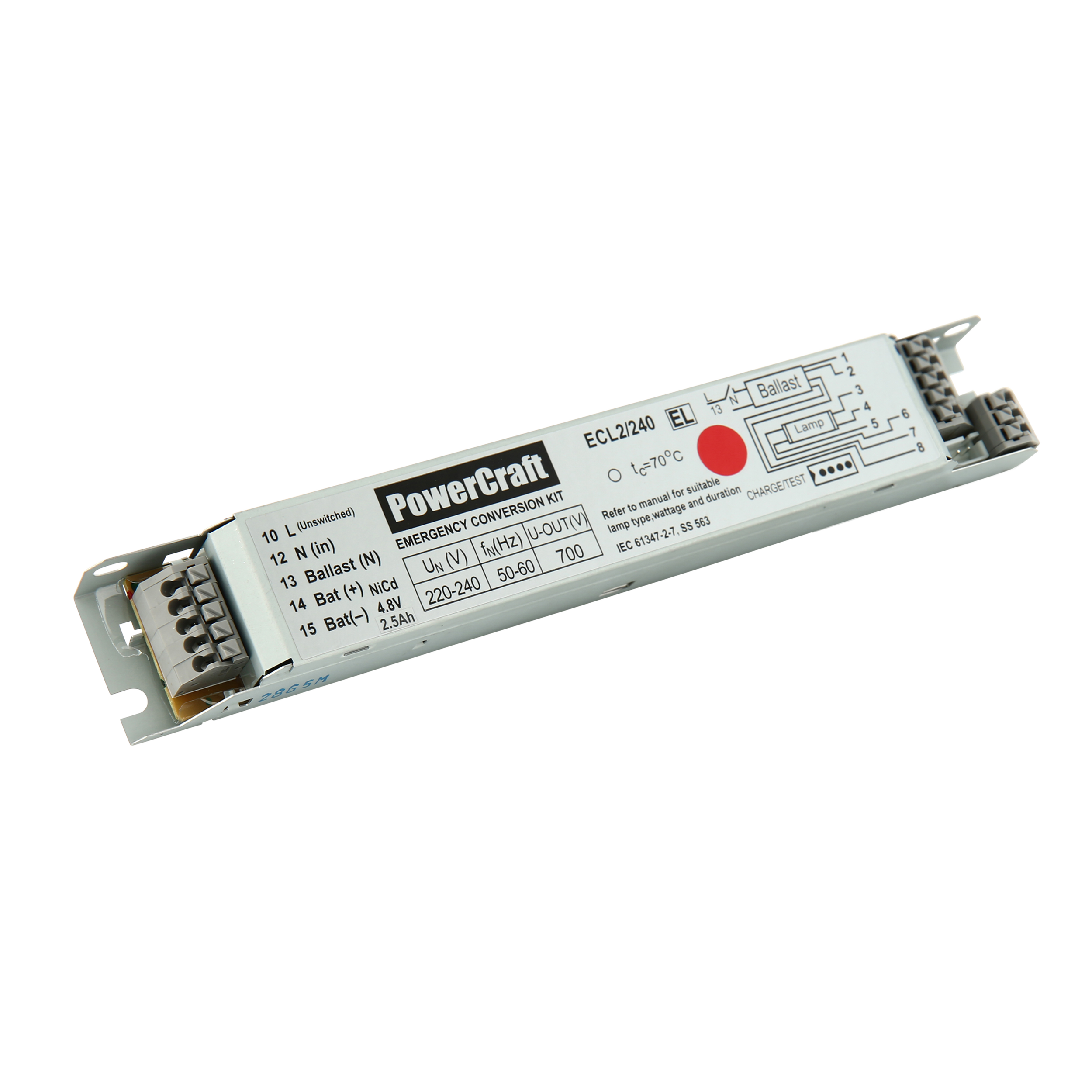

ECL2
NiCd Conversion Kit for Fluorescent and CCFL
OUR SLIMMEST CONVERSION KIT THAT CAN BE EASILY CONCEALED IN THE FLUORESCENT FITTING
Suitable for T5, T8, CFL, and 2D fluorescent lamps
Extra low standby power consumption
Short-circuit protection
Five-pole relay configuration

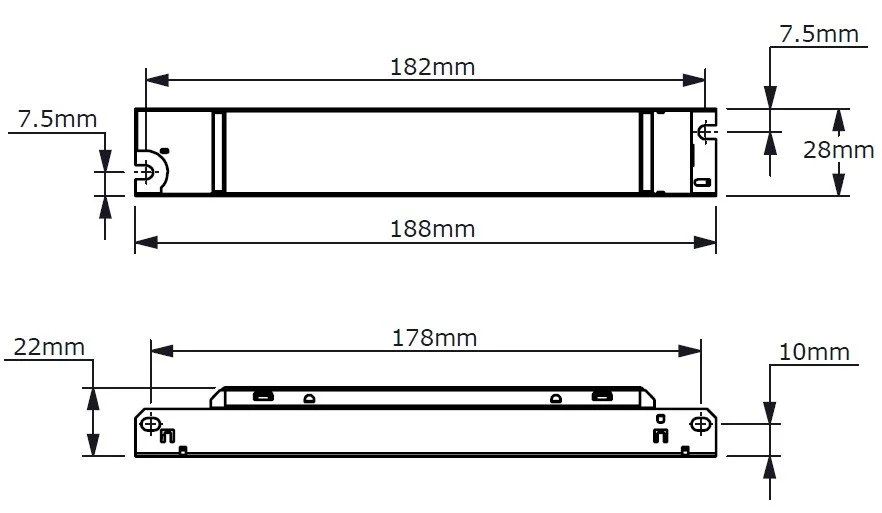

Low-profile casing (22mm x 28mm cross-section)
Ballast control output ensures compatibility with most high frequency ballast
Automatically activated in the event of power cuts
Offer a good luminous flux to facilitate the evacuation
OUR SLIMMEST CONVERSION KIT THAT CAN BE EASILY CONCEALED IN THE FLUORESCENT FITTING
Suitable for T5, T8, CFL, and 2D fluorescent lamps
Extra low standby power consumption
Short-circuit protection
Five-pole relay configuration
Low-profile casing (22mm x 28mm cross-section)
Ballast control output ensures compatibility with most high frequency ballast
Automatically activated in the event of power cuts
Offer a good luminous flux to facilitate the evacuation
TECHNICAL SPECIFICATIONS
ECL2
Model No:
Maintained / Non-Maintained
Mode of Operation:
White LED module with life-span > 100,000 hours
Lamp:
1 Hour / 2 Hours / 3 Hours
Rated Duration:
220-240 Volts, 50-60Hz
(110-240V on request)
Mains Supply:
20mA
Supply Current:
<2.0W
Power Consumption:
80mA / 125mA / 225mA
Trickle Charge:
Regulated variable rate
Battery Charger:
Low battery voltage cut off to prevent over discharge
Battery Protection:
High Temperature Nickel Cadmium
Battery Type:
LED
Charge Monitor:
Test Facility:
Momentary Test Switch
Electro-galvanized steel
Casing Construction:
70°C
Weight:
50°C
Dimensions:
SS IEC 60IEC 61347-2-7 (SS 490-2-7), SS 563598-2-22, SS 563
Standards / Compliance:
