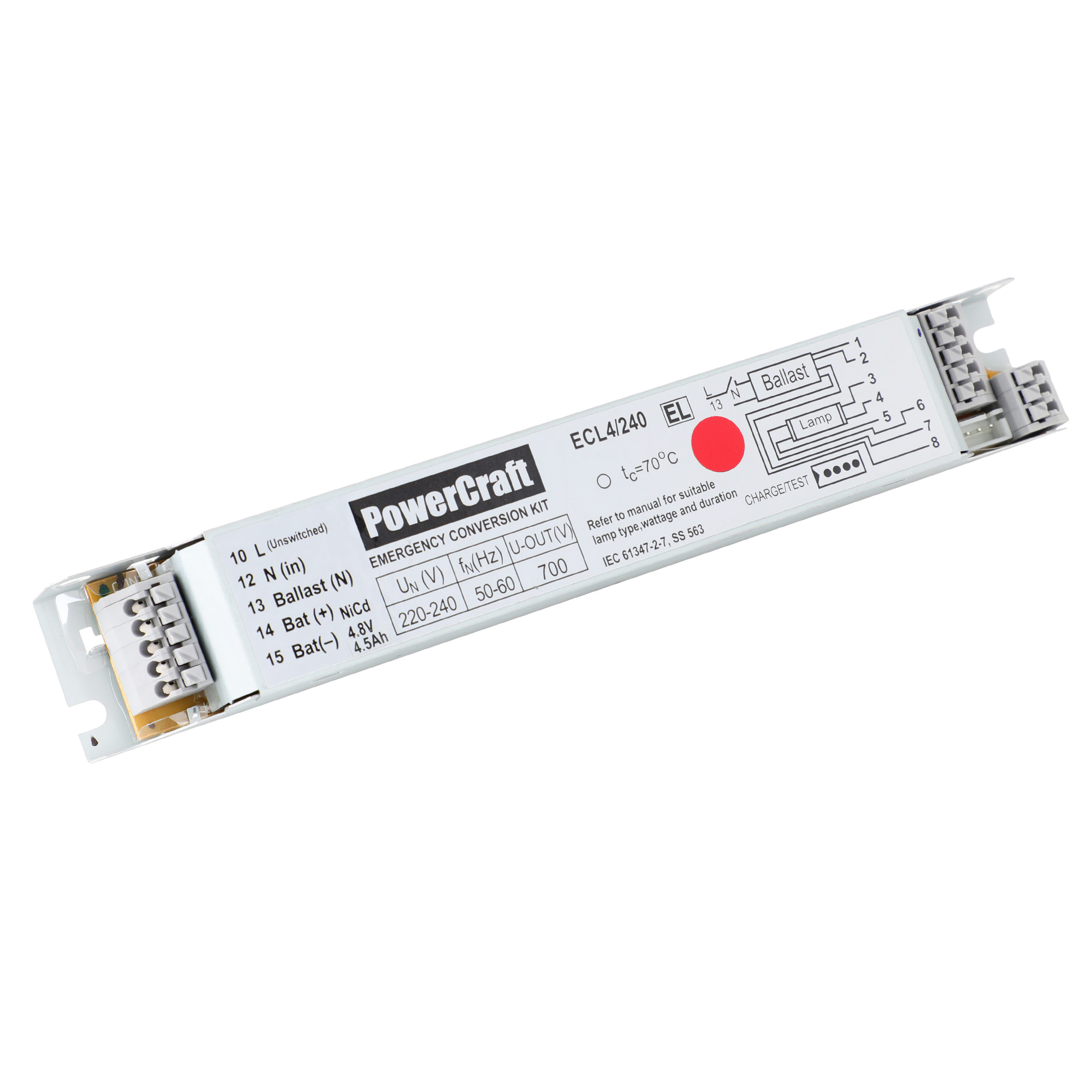

ECL4
NiCd Conversion Kit for Fluorescent and CCFL
Suitable for T5, T8, CFL, and 2D fluorescent lamps
Extra low standby power consumption
Short-circuit protection
Five-pole relay configuration
Low-profile casing (22mm x 28mm cross-section)
Ballast control output ensures compatability withmost high frequency ballast
Automatically activated in the event of power cuts
Offer a good luminous flux to facilitate the evacuation
OUR SLIMMEST CONVERSION KIT THAT CAN BE EASILY CONCEALED IN THE FLUORESCENT FITTING
OUR SLIMMEST CONVERSION KIT THAT CAN BE EASILY CONCEALED IN THE FLUORESCENT FITTING
Designed for fast installation and easy maintenance.
Extra low power consumption
High Quality, Long Life SMD LED module
Numerous installations option available
Low battery voltage cut-off with latch function, to eliminate battery over discharge
Durable fire retardant construction (UL 94)
Lightweight ergonomics design boost productivity of installers
TECHNICAL SPECIFICATIONS
ECL4
Model No:
Maintained / Non-Maintained
Mode of Operation:
White LED module with life-span > 100,000 hours
Lamp:
1 Hour / 2 Hours / 3 Hours
Rated Duration:
220-240 Volts, 50-60Hz
(110-240V on request)
Mains Supply:
20mA
Supply Current:
<2.0W
Power Consumption:
80mA / 125mA / 225mA
Trickle Charge:
Battery Charger:
Battery Protection:
Regulated variable rate
Low battery voltage cut off to prevent over discharge
High Temperature Nickel Cadmium
Battery Type:
LED
Charge Monitor:
Momentary Test Switch
Test Facility:
Electro-galvanized steel
Casing Construction:
70°C
Weight:
50°C

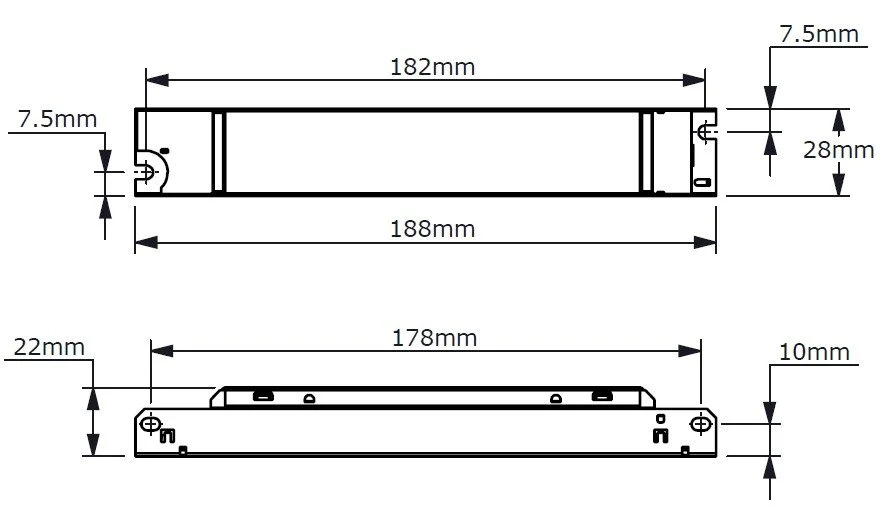

Dimensions:
SS IEC 60IEC 61347-2-7 (SS 490-2-7), SS 563598-2-22, SS 563
Standards / Compliance:
