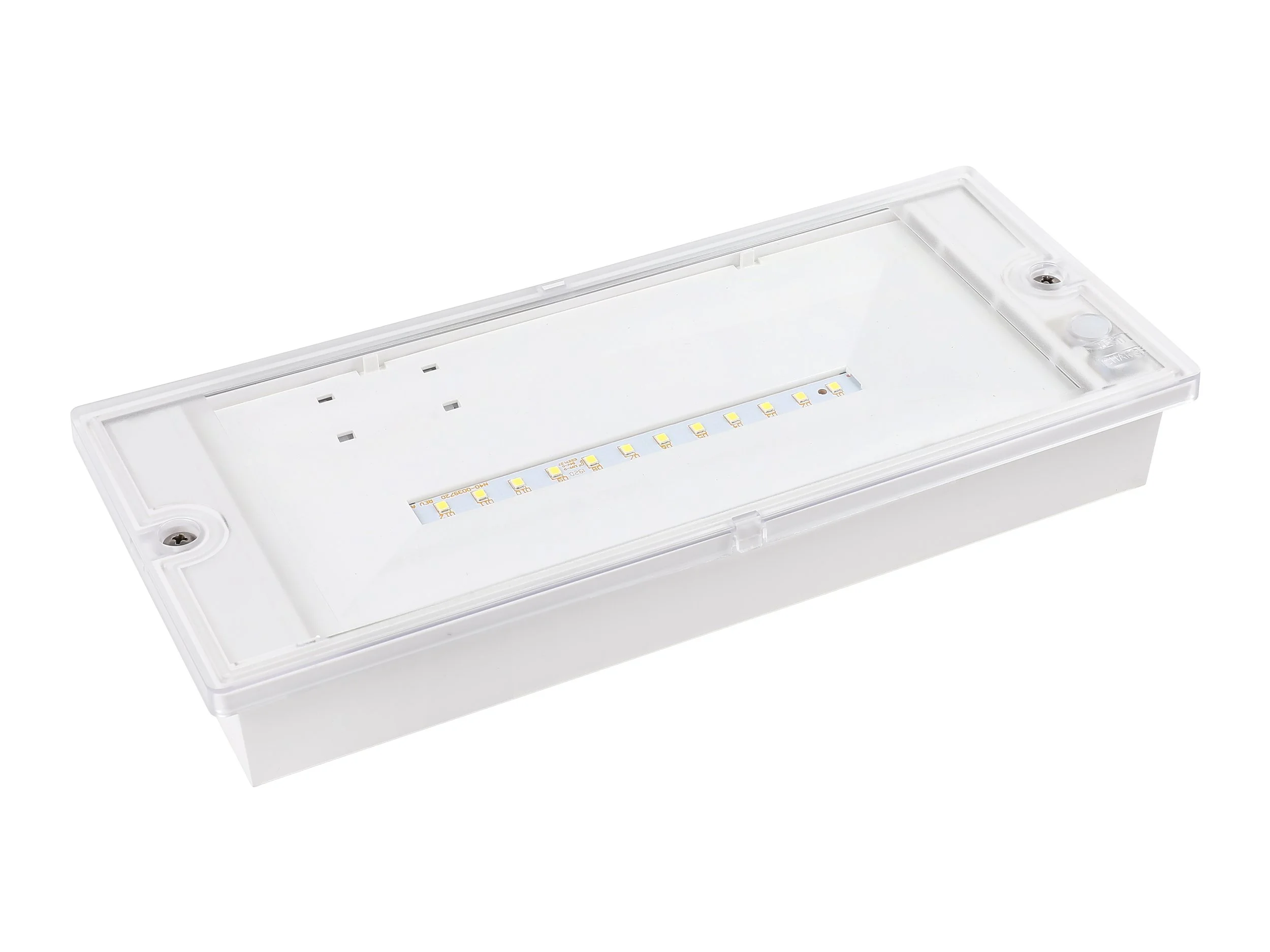

EL-LED1
LED Bulkhead
Low Heat generation, ensures long and reliable service life.
Low battery voltage cut-off with latch function, to eliminate battery over discharge.
Charge LED indicator and test switch
Weatherproof design suitable for wet and dry applications.
Optimal for anti-panic (open area) and escape route lighting applications
High Quality, Long Life LED module.
Spring bracket available for surface or semi recess installation
Recess plate available for fully recess installation (IP40)
NON-MAINTAINED EMERGENCY BULKHEAD SUITABLE FOR WET AND DRY AREAS
NON-MAINTAINED EMERGENCY BULKHEAD SUITABLE FOR WET AND DRY AREAS
Low Heat generation, ensures long and reliable service life.
Low battery voltage cut-off with latch function, to eliminate battery over discharge.
Charge LED indicator and test switch
Weatherproof design suitable for wet and dry applications.
Optimal for anti-panic (open area) and escape route lighting applications
High Quality, Long Life LED module.
Spring bracket available for surface or semi recess installation
Recess plate available for fully recess installation (IP40)
TECHNICAL SPECIFICATIONS
Model No:
EL-LED1
Mode of Operation:
Non-Maintained
3W White LED
Lamp:
Rated Duration:
Mains Supply:
3 Hours
220-240 Volts, 50-60Hz
<0.5W after fully charged
Power Consumption:
Battery:
Charger:
High Temperature Lithium LiFePO4 / High Temperature Nickel Cadmium
Constant current / Constant voltage, short circuit protected
Charge Monitor:
LED
Momentary Test Switch
Test Facility:
Injection moulded with fire retardant (UL94), high impact PC/ABS material
Safety Features:
Low battery voltage cut off to prevent over discharge
Fitting Construction:
IP65 for surface or semi recess IP40 for fully recess installation
Ingress Protection:
Approx. 0.6kg
Weight:
SS IEC 60598-2-22, SS 563

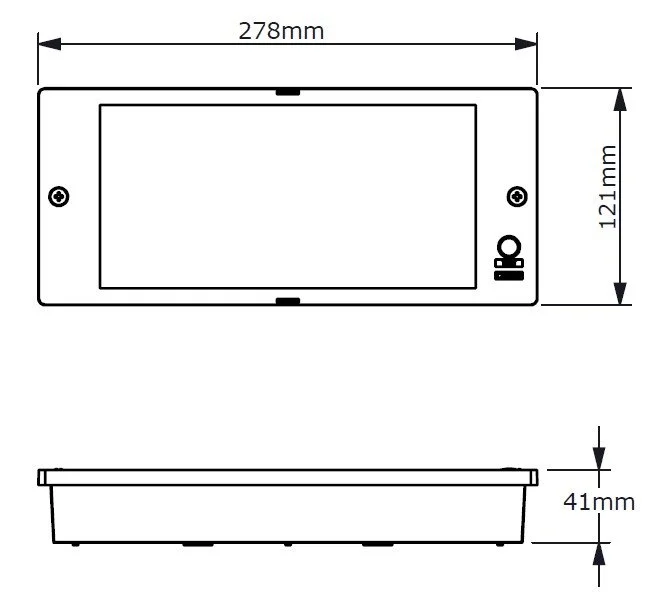

Dimensions:
121mm (H) x 278mm (W) x 41mm (D)
Standards / Compliance:
