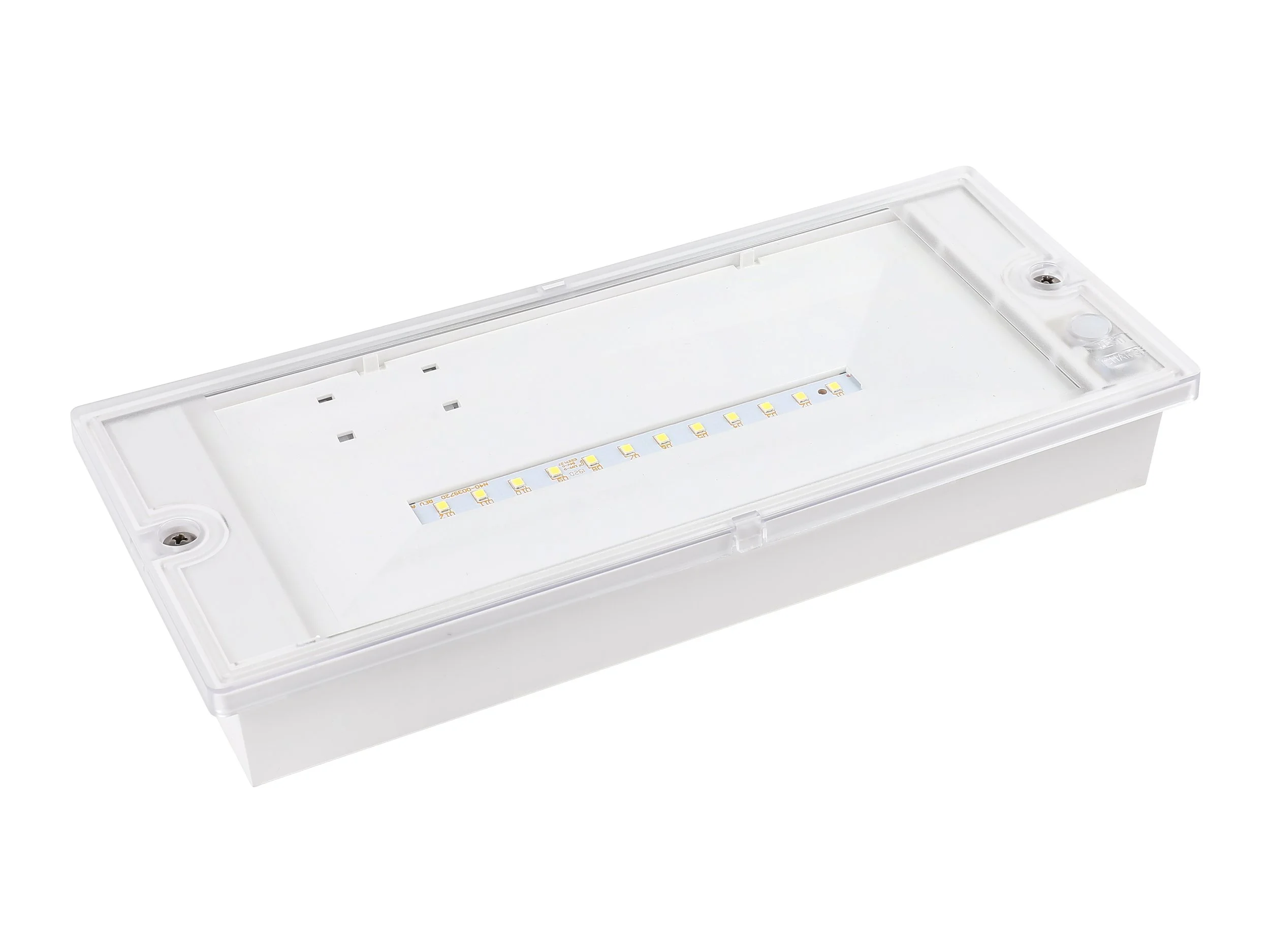

EL-LED2
LED Bulkhead
NON-MAINTAINED EMERGENCY BULKHEAD SUITABLE FOR WET AND DRY AREAS
Low Heat generation, ensures long and reliable service life.
Low battery voltage cut-off with latch function, to eliminate battery over discharge.
Charge LED indicator and test switch
Weatherproof design suitable for wet and dry applications.
Optimal for anti-panic (open area) and escape route lighting applications
High Quality, Long Life LED module.
Spring bracket available for surface or semi recess installation
Recess plate available for fully recess installation (IP40)
Low Heat generation, ensures long and reliable service life.
Low battery voltage cut-off with latch function, to eliminate battery over discharge.
Charge LED indicator and test switch
Weatherproof design suitable for wet and dry applications.
Optimal for anti-panic (open area) and escape route lighting applications
High Quality, Long Life LED module.
Spring bracket available for surface or semi recess installation
Recess plate available for fully recess installation (IP40)
NON-MAINTAINED EMERGENCY BULKHEAD SUITABLE FOR WET AND DRY AREAS
TECHNICAL SPECIFICATIONS
Model No:
EL-LED2
Mode of Operation:
Non-Maintained
6W White LED
Lamp:
Rated Duration:
3 Hours
220-240 Volts, 50-60Hz
Mains Supply:
Power Consumption:
Battery:
<0.5W after fully charged
High Temperature Lithium LiFePO4
Constant current / Constant voltage, short circuit protected
Charger:
Charge Monitor:
LED
Momentary Test Switch
Test Facility:
Low battery voltage cut off to prevent over discharge
Safety Features:
Fitting Construction:
Ingress Protection:
Injection moulded with fire retardant (UL94), high impact PC/ABS material
IP65 for surface or semi recess IP40 for fully recess installation
Weight:
Approx. 0.6kg

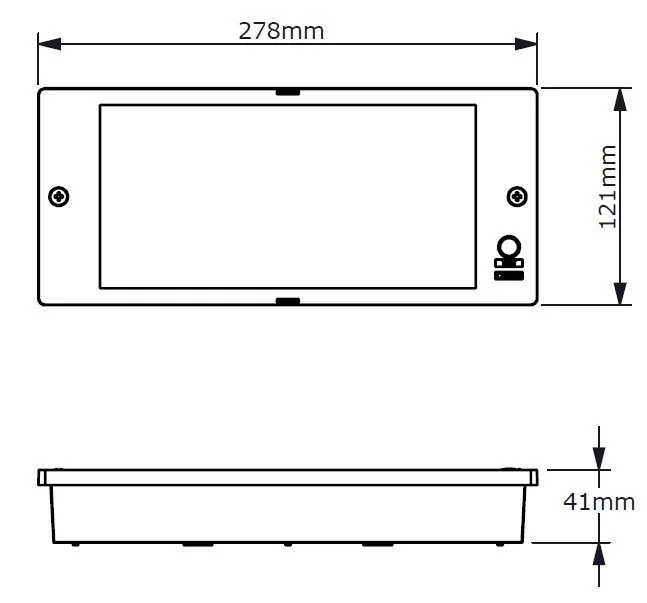

Dimensions:
121mm (H) x 278mm (W) x 41mm (D)
SS IEC 60598-2-22, SS 563
Standards / Compliance:
