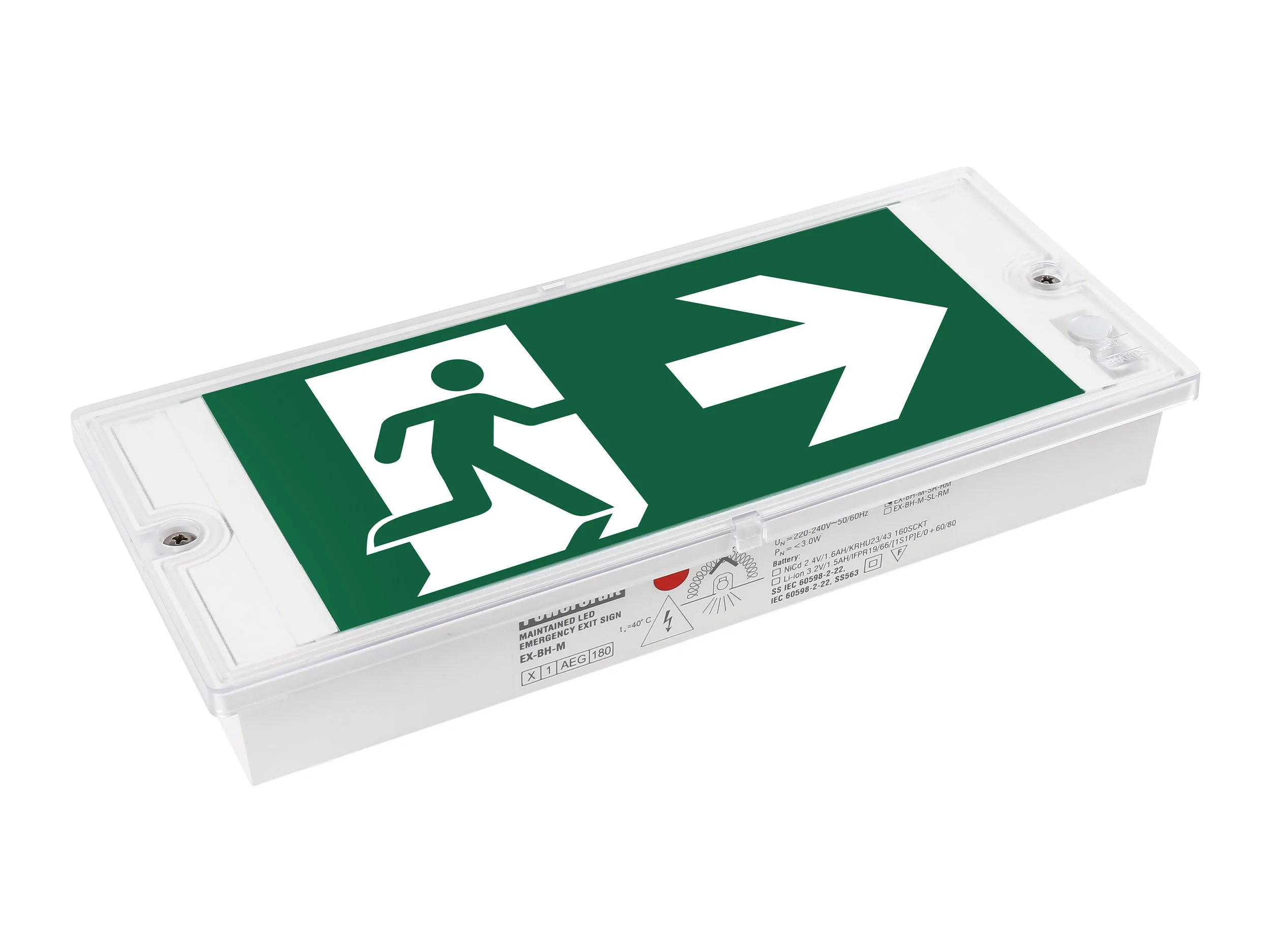

EX-BH-M

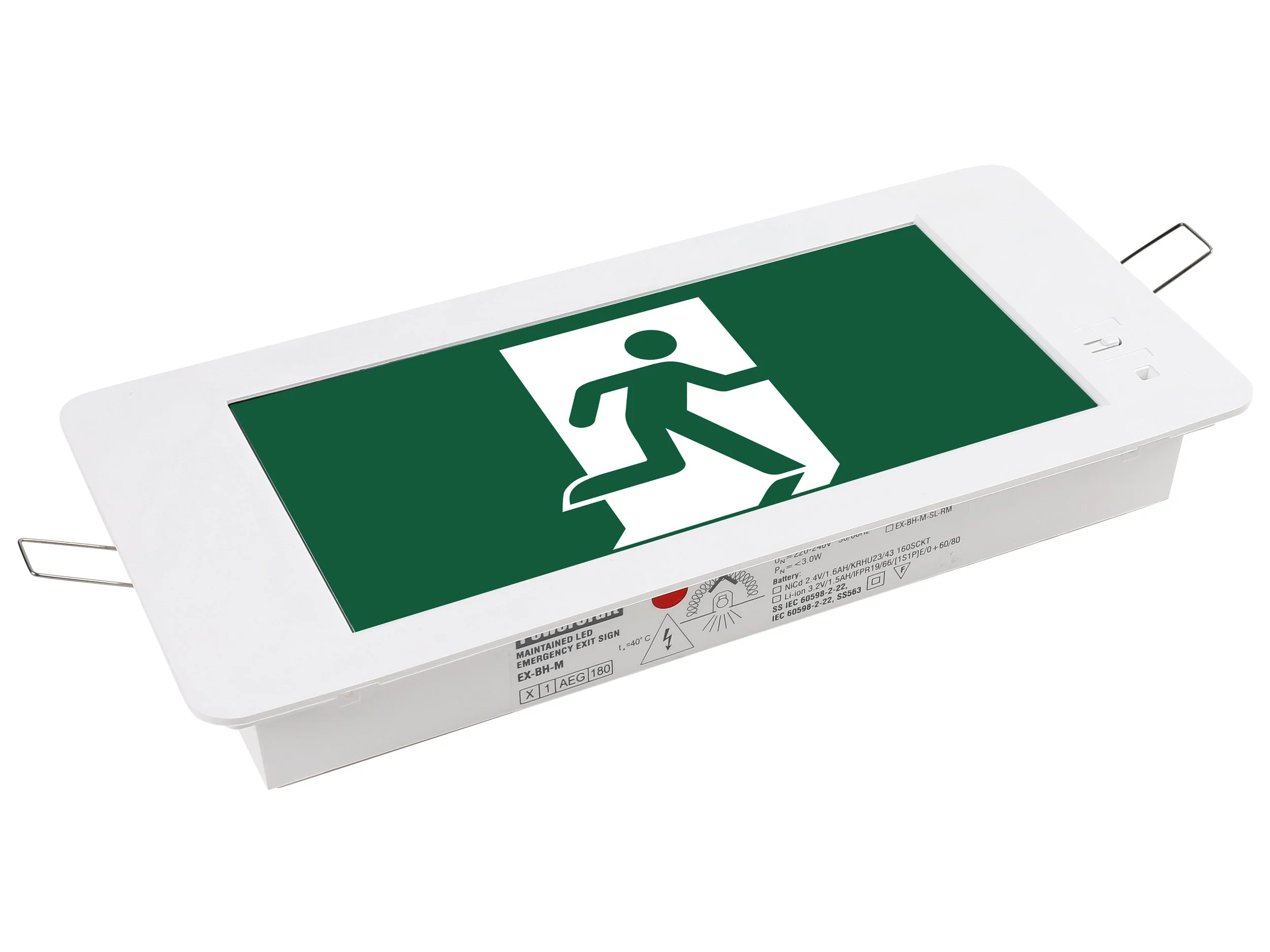

Recess Box LED
Designed for fast installation and easy maintenence.
High quality, Long life SMD LED module
Low heat generation, ensures long and reliable service life
Low battery voltage cut-off with latch function to eliminate battery over discharge
Lightweight ergonomic design boosting productivity of installers
Numerous installation options, surface, recess and low-level applications
COMPACT EXIT LIGHT ENHANCING SAFETY AT FLOOR LEVEL
COMPACT EXIT LIGHT ENHANCING SAFETY AT FLOOR LEVEL
Designed for fast installation and easy maintenence.
High quality, Long life SMD LED module
Low heat generation, ensures long and reliable service life
Low battery voltage cut-off with latch function to eliminate battery over discharge
Lightweight ergonomic design boosting productivity of installers
Numerous installation options, surface, recess and low-level applications
TECHNICAL SPECIFICATIONS
Model No:
EX-BH-M
Mode of Operation:
Maintained
Lamp:
Rated Duration:
White LED module with life-span > 100,000 hours
3 Hours
Mains Supply:
Power Consumption:
220-240 Volts, 50-60Hz
2.5W (Total standby power inclusive of LED converter)
Battery:
Charger:
High Temperature Lithium LiFePO4 / High Temperature Nickel Cadmium
Constant current / Constant voltage, short circuit protected
Charge Monitor:
LED
Test Facility:
Mounting:
Micro switch
Surface / Recess mount
Safety Features:
Diffuser:
Low battery voltage cut off to prevent over discharge
Acrylic plate
Fitting Construction:
Weight:
Injection moulded with fire retardant (UL94), high impact PC/ABS material
Approx. 0.6kg

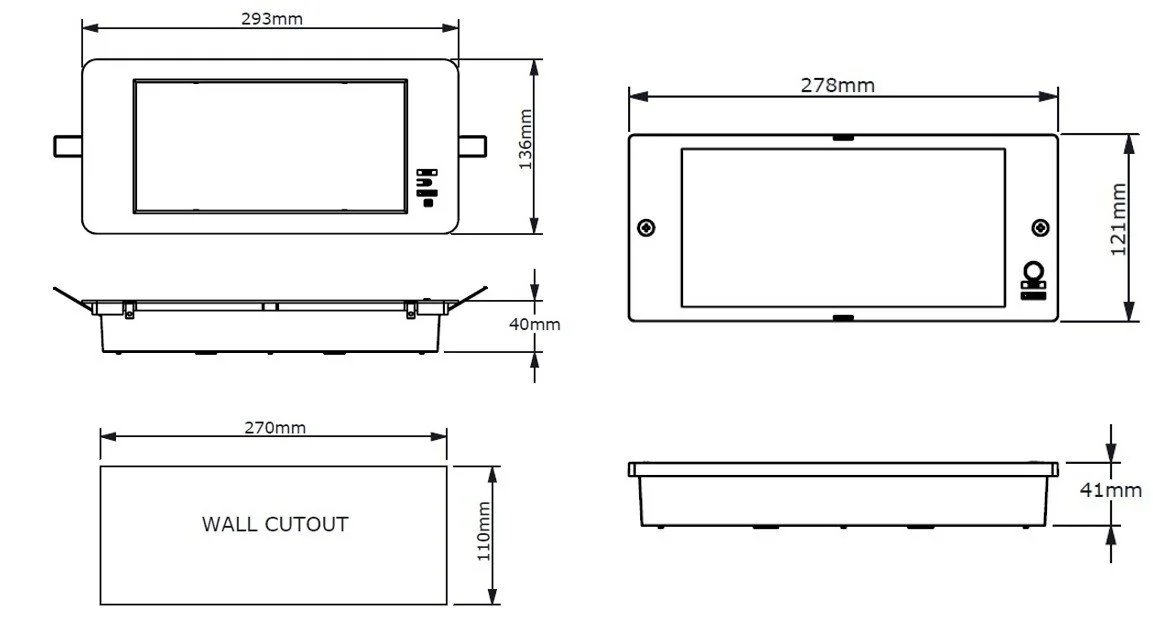

Surface: 121mm (H) x 278mm (W) x 41mm (D)
Recess: 136mm (H) x 293mm (W) x 40mm (D)
Dimensions:
SS IEC 60598-2-22, SS 563
Standards / Compliance:
