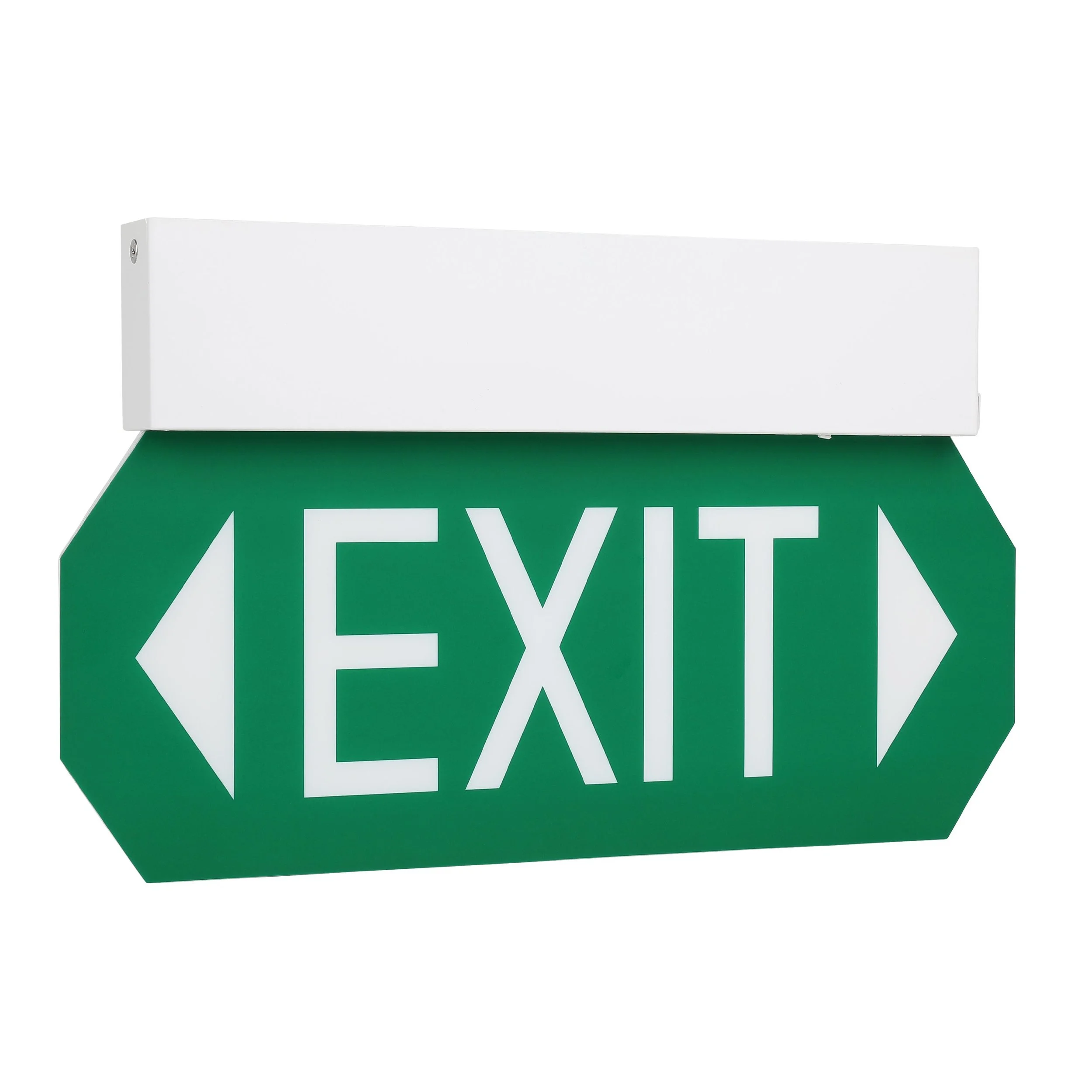

EX-SB-M-SLR/DLR
Slim Blade Exit (Double Arrow)
Designed for fast installation and easy maintenance.
Extra low power consumption
High Quality, Long Life SMD LED module
Numerous installations option available
Low battery voltage cut-off with latch function, to eliminate battery over discharge
Durable fire retardant construction (UL 94)
Lightweight ergonomics design boost productivity of installers
AESTHETIC, FUNCTIONAL
AND COMPACT DESIGN
AESTHETIC, FUNCTIONAL
AND COMPACT DESIGN
Designed for fast installation and easy maintenance.
Extra low power consumption
High Quality, Long Life SMD LED module
Numerous installations option available
Low battery voltage cut-off with latch function, to eliminate battery over discharge
Durable fire retardant construction (UL 94)
Lightweight ergonomics design boost productivity of installers
TECHNICAL SPECIFICATIONS
Model No:
EX-SB-M-SLR / EX-SB-M-DLR
Mode of Operation:
Maintained
Lamp:
White LED module with life-span > 100,000 hours
Rated Duration:
3 Hours
Mains Supply:
Power Consumption:
220-240 Volts, 50-60Hz
2.5W (Total standby power inclusive of LED converter)
High Temperature Lithium LiFePO4 / High Temperature Nickel Cadmium
Battery:
Charger:
Charge Monitor:
Regulated variable rate
LED
Test Facility:
Mounting:
Micro switch
Surface wall / Suspended / Surface ceiling /
Recessed ceiling
Safety Features:
Low battery voltage cut off to prevent over discharge
Acrylic plate (fire retardant)
Diffuser:
Injection moulded with fire retardant (UL94), high impact material
Fitting Construction:
Weight:

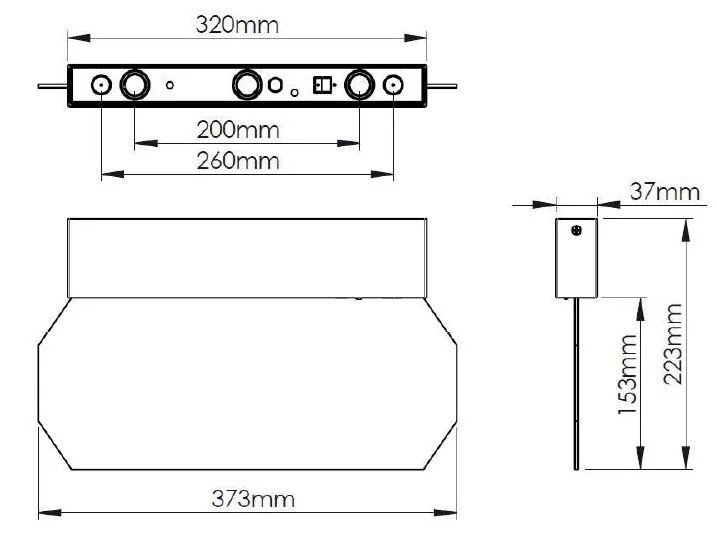

Dimensions:
Approx. 0.6kg
223mm (H) x 373mm (W) x 37mm (D)
SS IEC 60598-2-22, SS 563
Standards / Compliance:
