EX-SB-M-SMART
Smart Slim Blade Exit
Eliminates the manpower cost to manually test and monitor exit lights
Extra low power consumption
Real-time view of all the maintenance activities. Tracking failure in the LEDs or Backup batteries
Timely tests are executed on each Maintenance Routines
Dynamic Online Reporting via Visualization Chart are used for Trending of the performance of the different Zones of exit lights
Durable fire retardant construction (UL 94)
Test results are stored online for easy verification of the maintenance testing
AESTHETIC, FUNCTIONAL, SMART SELF TEST, SEAMLESS WIRELESS MONITORING
AESTHETIC, FUNCTIONAL, SMART SELF TEST, SEAMLESS WIRELESS MONITORING
Eliminates the manpower cost to manually test and monitor exit lights
Extra low power consumption
Real-time view of all the maintenance activities. Tracking failure in the LEDs or Backup batteries
Timely tests are executed on each Maintenance Routines
Dynamic Online Reporting via Visualization Chart are used for Trending of the performance of the different Zones of exit lights
Durable fire retardant construction (UL 94)
Test results are stored online for easy verification of the maintenance testing
TECHNICAL SPECIFICATIONS
Model No:
EX-SB-M-SMART
Mode of Operation:
Maintained
Lamp:
Rated Duration:
White LED module with burning life-span > 100,000 hours
3 Hours
Mains Supply:
Power Consumption:
220-240 Volts, 50-60Hz
2.5W (Total standby power inclusive of LED converter)
Battery:
Charger:
High Temperature Lithium LiFePO4
Regulated variable rate
Charge Monitor:
LED
Test Facility:
Mounting:
Micro switch / Wireless Self Test
Surface wall / Suspended / Surface ceiling /
Recessed ceiling
Safety Features:
Low battery voltage cut off to prevent over discharge
Diffuser:
Fitting Construction:
Acrylic plate (fire retardant)
Injection moulded with fire retardant (UL94), high impact material
Weight:
Approx. 0.6kg
SS IEC 60598-2-22, SS 563

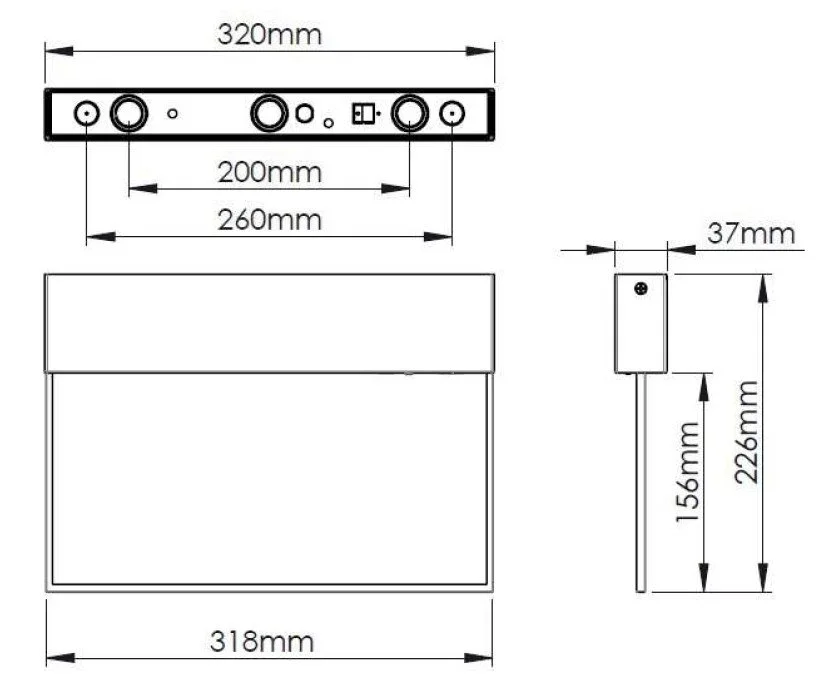

226mm (H) x 318mm (W) x 37mm (D)
Dimensions:
Standards / Compliance:
