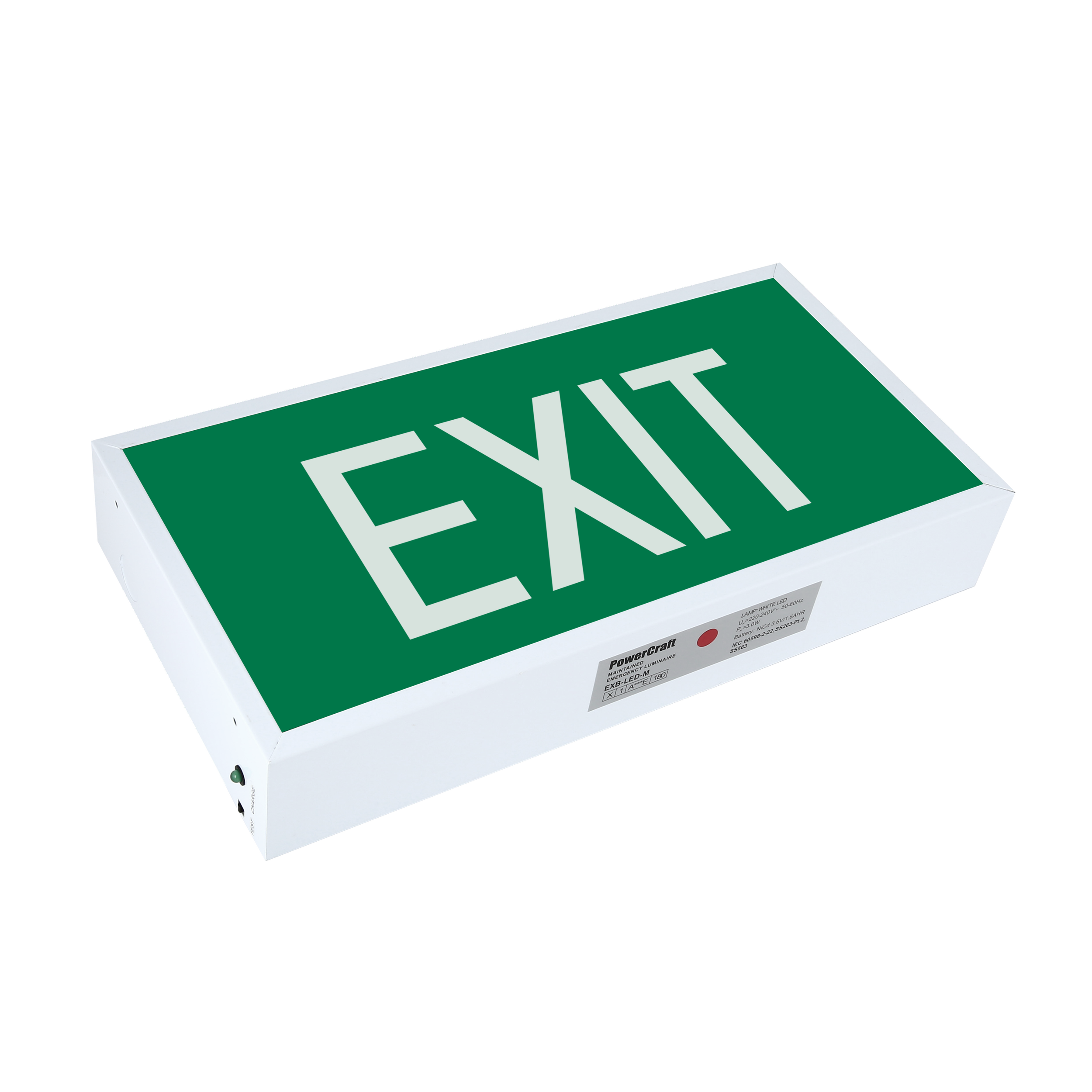

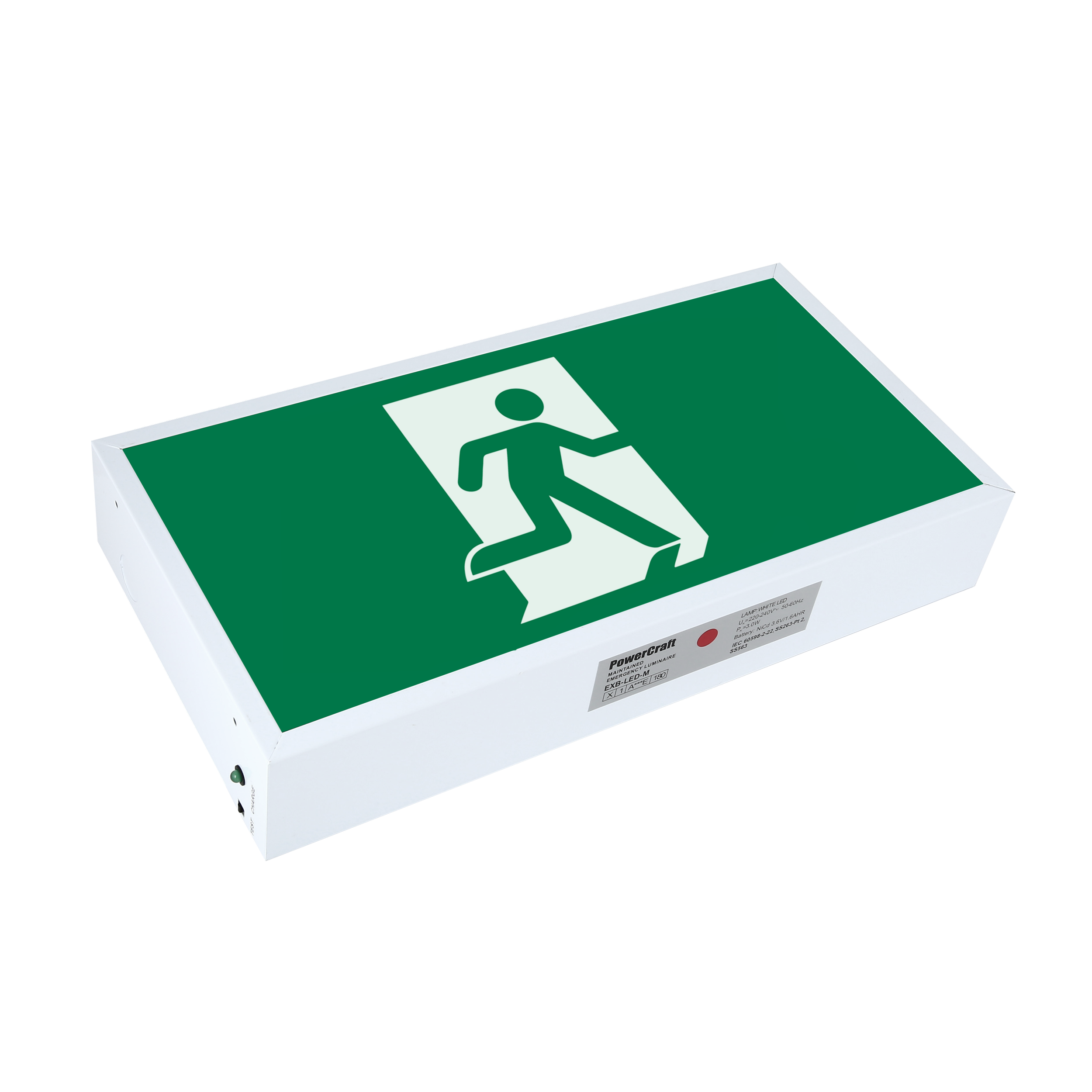

EXB-LED-M

Surface Box LED

Datasheet

Compact And Classic Box Exit Light

Ultra bright white LEDs meeting ISO safety colour requirements
Exceeds IEC 60598-2-22 and SS 563 brightness requirements
Extra low power consumption
High quality, Long Life SMD LED module
Series connection of LEDs provides equal biasing of all LEDs ensures maximum LED life span and uniform light distribution
Low battery voltage cut-off with latch function, to elimate battery over discharge
High efficiency charger and LED converter
Charge indicator and test switch

Mode of Operation	Maintained
Lamp	1.2W White LED module with burning life-span > 50,000 hours
Rated Duration	3 Hours
Mains Supply	220-240 Volts, 50-60Hz
Power Consumption	3W (Total standby power inclusive of LED converter)
Battery	High Temperature Nickel Cadmium
Charger	Regulated variable rate
Charge Monitor	LED
Test Facility	Micro switch
Mounting	Suspended / Surface ceiling / Surface wall
Safety Features	Low battery voltage cut off to prevent over discharge
Diffuser	Acrylic plate (fire retardant)
Fitting Construction	Electro galvanized steel. Epoxy powder coating for casing and gear tray
Weight	Approximately 1.5 Kg

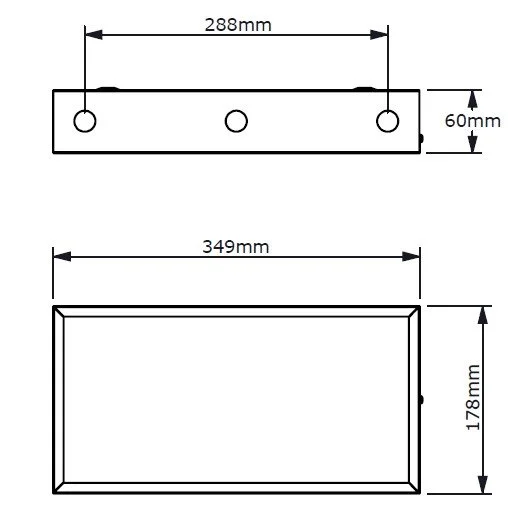

Dimensions	178mm (H) x 348mm (W) x 60mm (D)
Standards / Compliance	SS IEC 60598-2-22, SS 563
