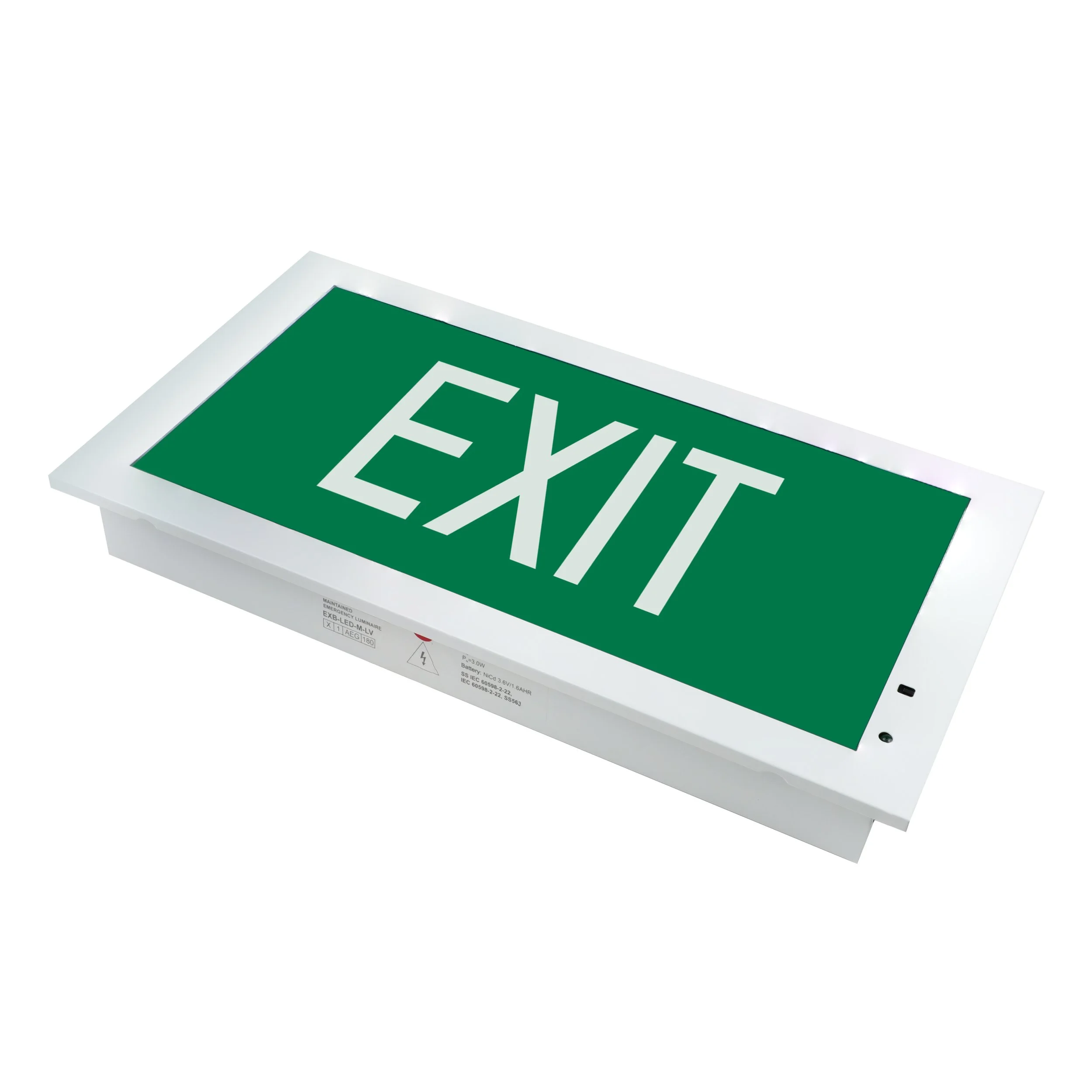

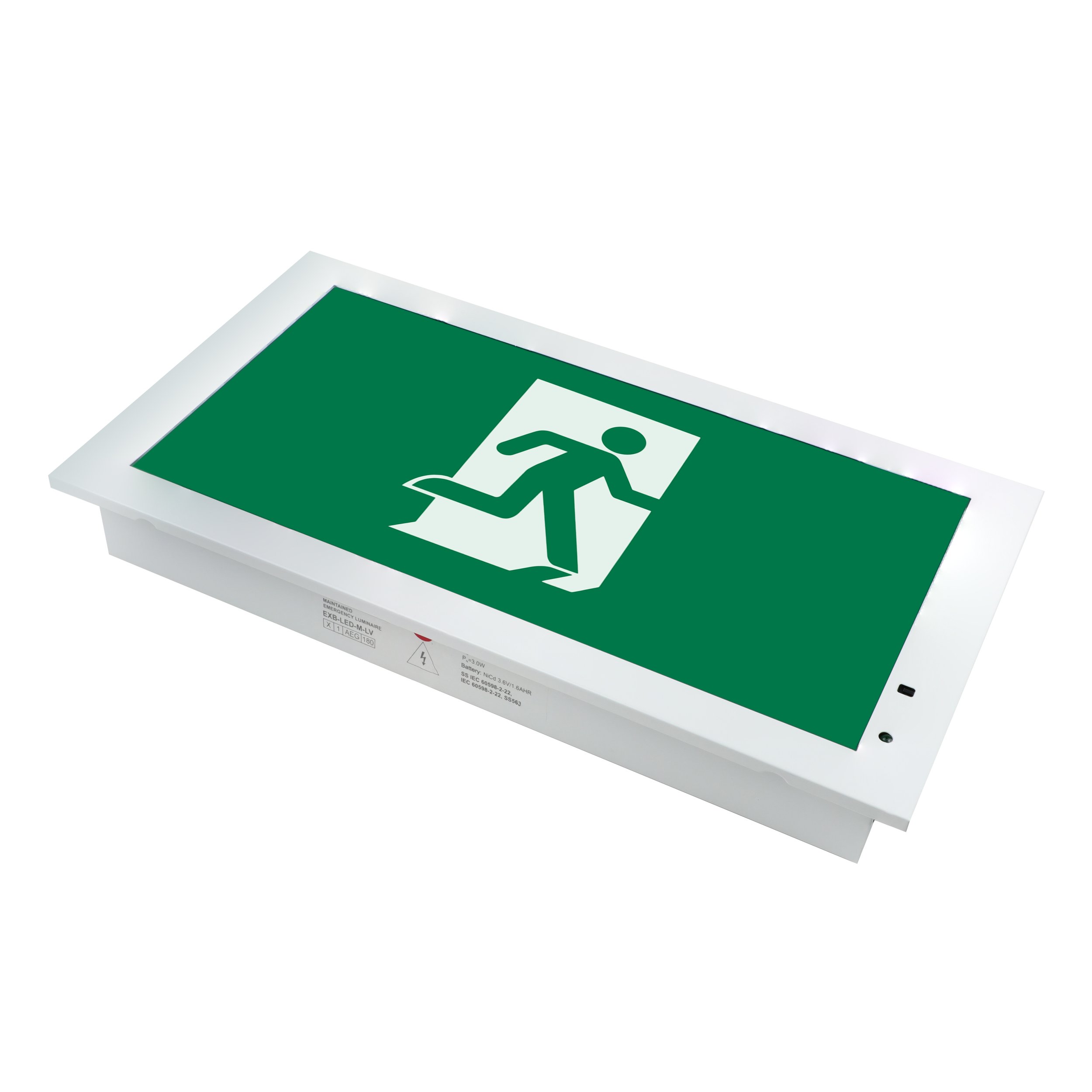

EXB-LED-M-LV
Recess Box LED
Screwless cover
Suitable for recess mounting at low level escape routes or above doors
Ultra bright white LEDs meeting ISO safety colour requirements
Exceeds SS IEC 60598-2-22 and SS 563 brightness requirements
Extra low power consumption
High Quality, Long life SMD LED module
Series connection of LEDs provides equal biasing of all LEDs ensures maximum LED life span and uniform light distribution
Low battery voltage cut-off with latch function, to eliminate battery over discharge
High efficiency charger and LED converter
Charge indicator and test switch
LOW LEVEL EXIT LIGHT IMPROVE SAFETY WHEN SMOKE OBSCURE EXIT LIGHT
Screwless cover
Suitable for recess mounting at low level escape routes or above doors
Ultra bright white LEDs meeting ISO safety colour requirements
Exceeds SS IEC 60598-2-22 and SS 563 brightness requirements
Extra low power consumption
High Quality, Long life SMD LED module
Series connection of LEDs provides equal biasing of all LEDs ensures maximum LED life span and uniform light distribution
Low battery voltage cut-off with latch function, to eliminate battery over discharge
High efficiency charger and LED converter
Charge indicator and test switch
LOW LEVEL EXIT LIGHT IMPROVE SAFETY WHEN SMOKE OBSCURE EXIT LIGHT
TECHNICAL SPECIFICATIONS
Model No:
EXB-LED-M-LV
Mode of Operation:
Maintained
Lamp:
Rated Duration:
White LED module with life-span > 100,000 hours
3 Hours
Mains Supply:
Power Consumption:
220-240 Volts, 50-60Hz
2.5W (Total standby power inclusive of LED converter)
Battery:
Charger:
High Temperature Lithium LiFePO4 / High Temperature Nickel Cadmium
Regulated variable rate
Charge Monitor:
LED
Micro switch
Test Facility:
Recessed wall mount
Mounting:
Safety Features:
Diffuser:
Low battery voltage cut off to prevent over discharge
Acrylic plate (fire retardant)
Fitting Construction:
Weight:
Electro galvanized steel. Epoxy powder coating for casing and gear tray
Approx. 1.5kg

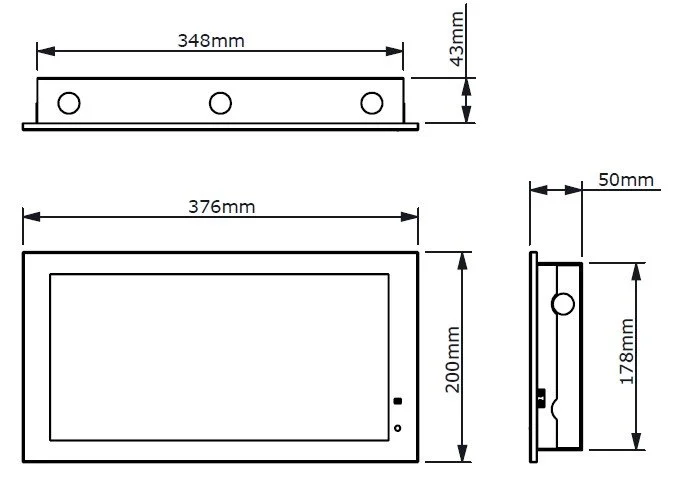

Recess mount: 200mm (H) x 376mm (W) x 50mm (D)
Dimensions:
Standards / Compliance:
SS IEC 60598-2-22, SS 563
