EXB-LED-M-WP
IP65 Double-Sided LED
Ultra bright white LEDs meeting ISO safety colour requirements
Exceeds SS IEC 60598-2-22 and SS 563 brightness requirements
Extra low power consumption
High Quality, Long Life SMD LED module
Series connection of LEDs achieve a high level of uniform light distribution and ensuring maximum lifespan
Low battery voltage cut-off with latch function, to eliminate battery over discharge
WELL EQUIPPED EXIT LIGHT THAT DEFIES HARSH ENVIRONMENTAL CONDITIONS.
WELL EQUIPPED EXIT LIGHT THAT DEFIES HARSH ENVIRONMENTAL CONDITIONS.
Ultra bright white LEDs meeting ISO safety colour requirements.
Exceeds SS IEC 60598-2-22 and SS 563 brightness requirements.
Extra low power consumption
High Quality, Long Life SMD LED module
Series connection of LEDs provides equal biasing of all LEDs ensures maximum LED life span and uniform light distribution
Low battery voltage cut-off with latch function to eliminate battery over discharge.
Add-on plate for recess mounting.
TECHNICAL SPECIFICATIONS
Model No:
EXB-LED-M-WP
Mode of Operation:
Maintained
Lamp:
Rated Duration:
White LED module with life-span > 100,000 hours
3 Hours
Mains Supply:
Power Consumption:
220-240 Volts, 50-60Hz
2.5W (Total standby power inclusive of LED converter)
Battery:
Charger:
High Temperature Lithium LiFePO4 / High Temperature Nickel Cadmium
Regulated variable rate
Charge Monitor:
LED
Micro switch
Test Facility:
Mounting:
Safety Features:
Surface wall / Semi-recessed wall
Low battery voltage cut off to prevent over discharge
Injection moulded with fire retardant (UL94), high impact material
Diffuser:
Clear polycarbonate (fire retardant)
Fitting Construction:
Approx. 1kg
Weight:

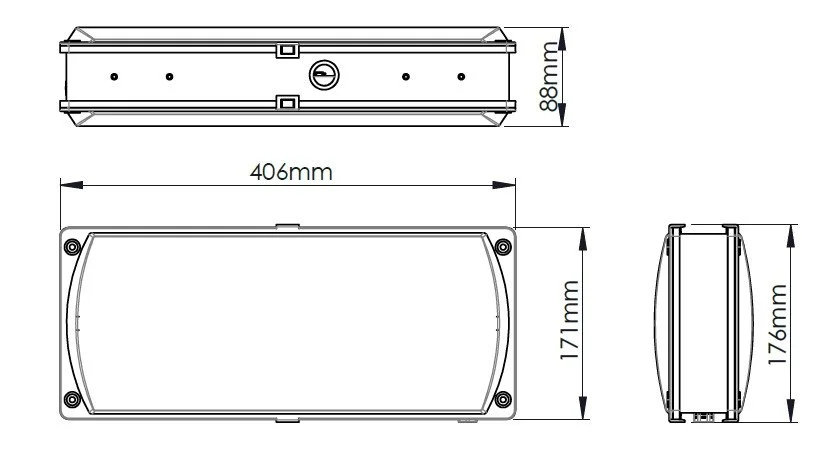

171mm (H) x 406mm (W) x 88mm (D)
Dimensions:
SS IEC 60598-2-22, SS 563
Standards / Compliance:
