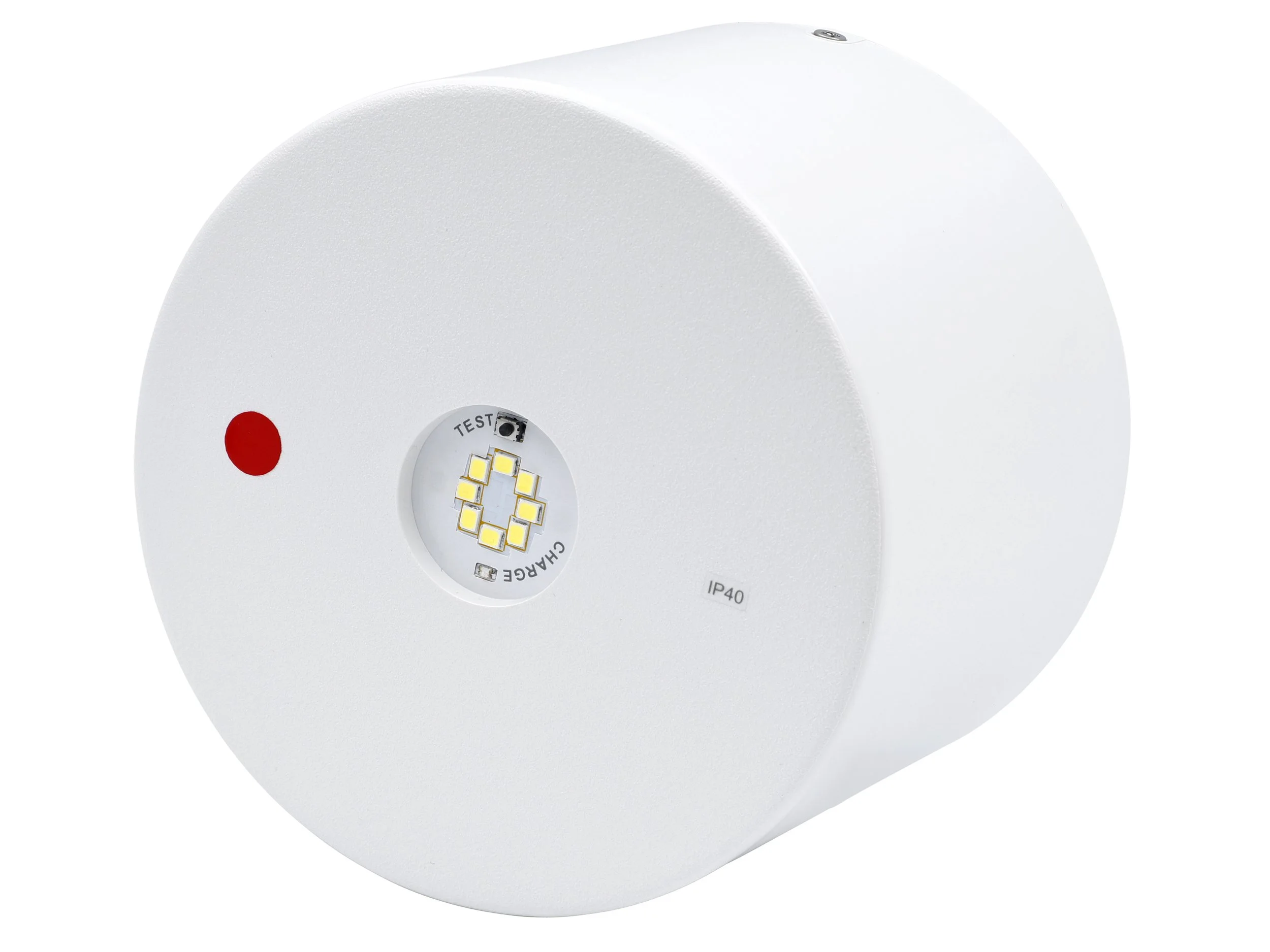

REL10NM-CY
Surface LED
NON-MAINTAINED SURFACE MOUNT CYLINDRICAL EMERGENCY LUMINAIRE
Quick fit, cylindrical design for fast installation and maintenance
Long life, environmental friendly Lithium Iron Phosphate (LiFeP04) battery
Optimal for anti-panic (open area) and escape route
lighting applications
Surface mount
Maximum efficiency and perfect light distribution that result to very wide spacing thus lesser number of emergency luminaires are needed in conformity with relevant standards
NON-MAINTAINED SURFACE MOUNT CYLINDRICAL EMERGENCY LUMINAIRE
Quick fit, cylindrical design for fast installation and maintenance
Long life, environmental friendly Lithium Iron Phosphate (LiFeP04) battery
Optimal for anti-panic (open area) and escape route
lighting applications
Surface mount
Maximum efficiency and perfect light distribution that result to very wide spacing thus lesser number of emergency luminaires are needed in conformity with relevant standards
TECHNICAL SPECIFICATIONS
REL10NM-CY
Model No:
Non-Maintained
Mode of Operation:
6W White LED
Lamp:
Rated Duration:
3 Hours
220-240 Volts, 50-60Hz
Mains Supply:
<0.5W
Power Consumption:
High Temperature Lithium LiFePO4
Battery:
Constant current / Constant voltage, short circuit protected
Charger:
LED
Charge Monitor:
Momentary Test Switch
Test Facility:
Safety Features:
Fitting Construction:
Low battery voltage cut off to prevent over discharge
Injection moulded with fire retardant (UL94), high impact PC material
Weight:
Approx. 0.4kg
SS IEC 60598-2-22, SS 563, CB,IEC 61347-2-7, IEC 61347-2-13,IEC 62384, IEC 60598-1
Standards / Compliance:
