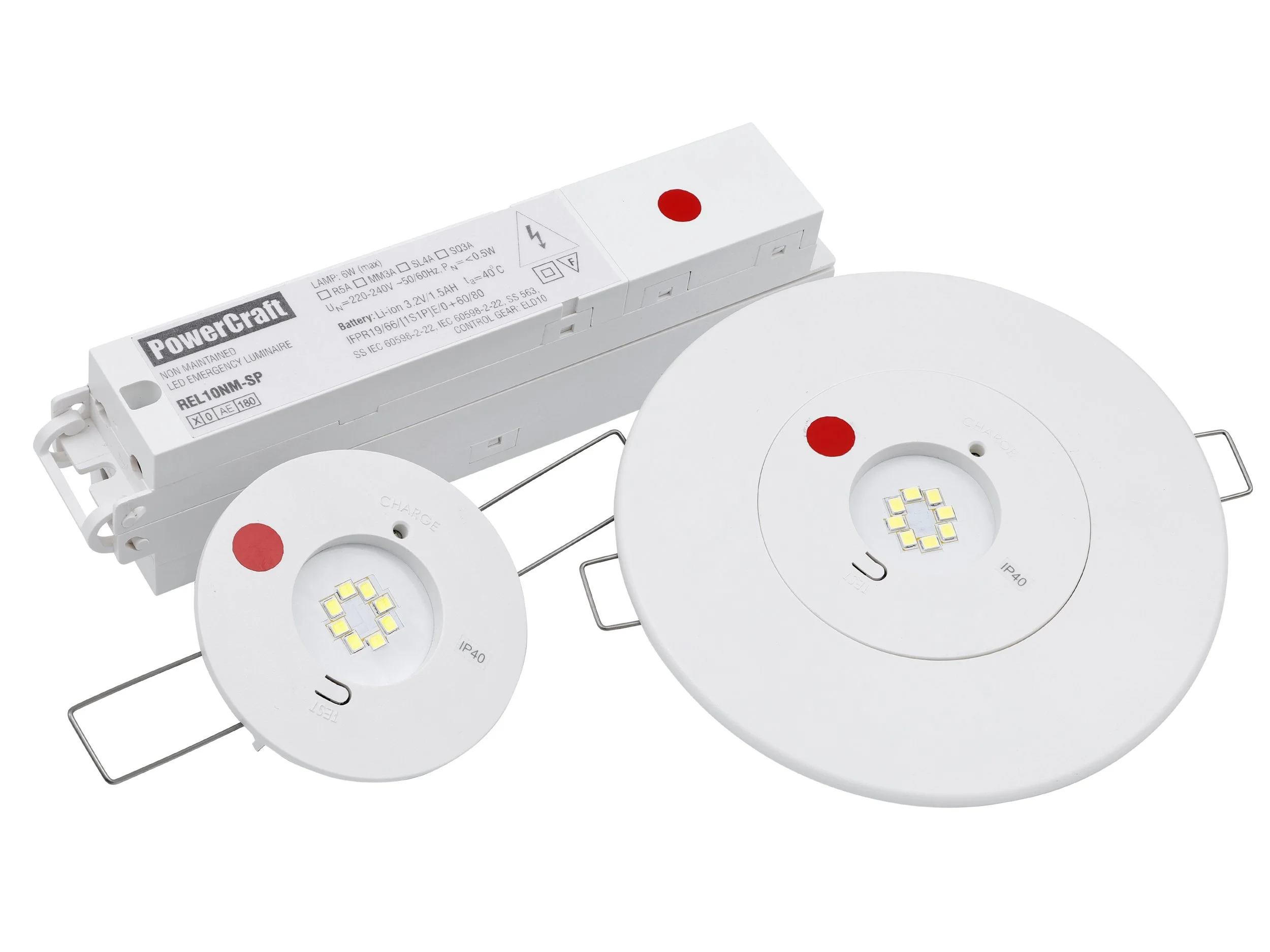

REL10NM-SP
Recess LED
NON-MAINTAINED RECESS EMERGENCY LUMINAIRE
Long life, environmental friendly Lithium Iron Phosphate
(LiFeP04) battery
Low heat generation, ensure long and reliable service life
Low battery voltage cut-off with latch function, to eliminate battery over discharge
Charge LED indicator and test switch
Optimal for anti-panic (open area) and escape route lighting applications
High quality, long life LED module.
Energy savings, extra low standby power consumption
Slim casing, fit through 55-60cm cut hole
Easy installation and low maintenance
Recess mount
NON-MAINTAINED RECESS EMERGENCY LUMINAIRE
Long life, environmental friendly Lithium Iron Phosphate
(LiFeP04) battery
Low heat generation, ensure long and reliable service life
Low battery voltage cut-off with latch function, to eliminate battery over discharge
Charge LED indicator and test switch
Optimal for anti-panic (open area) and escape route lighting applications
High quality, long life LED module.
Energy savings, extra low standby power consumption
Slim casing, fit through 55-60cm cut hole
Easy installation and low maintenance
Recess mount

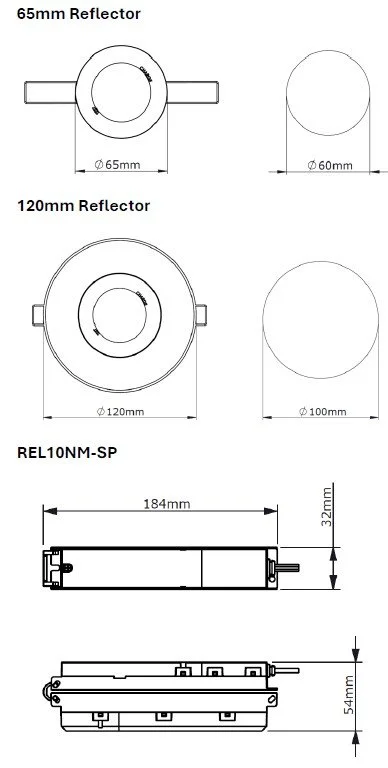

Cut Out
Cut Out
TECHNICAL SPECIFICATIONS
REL10NM-SP
Model No:
Non-Maintained
Mode of Operation:
6W White LED
Lamp:
Rated Duration:
3 Hours
220-240 Volts, 50-60Hz
Mains Supply:
≤0.5W (on standby)
Power Consumption:
High Temperature Lithium LiFePO4
Battery:
Charger:
Charge Monitor:
Constant current / Constant voltage, short circuit protected
LED
Test Facility:
Momentary Test Switch
Low battery voltage cut off to prevent over discharge
Safety Features:
Fitting Construction:
Weight:
Injection moulded with fire retardant (UL94), high impact PC material
Approx. 0.2kg
32mm (H) x 184mm (W) x 54mm (D)
Dimensions:
SS IEC 60598-2-22, SS 563, CB,IEC 61347-2-7, IEC 61347-2-13,IEC 62384, IEC 60598-1
Standards / Compliance:
