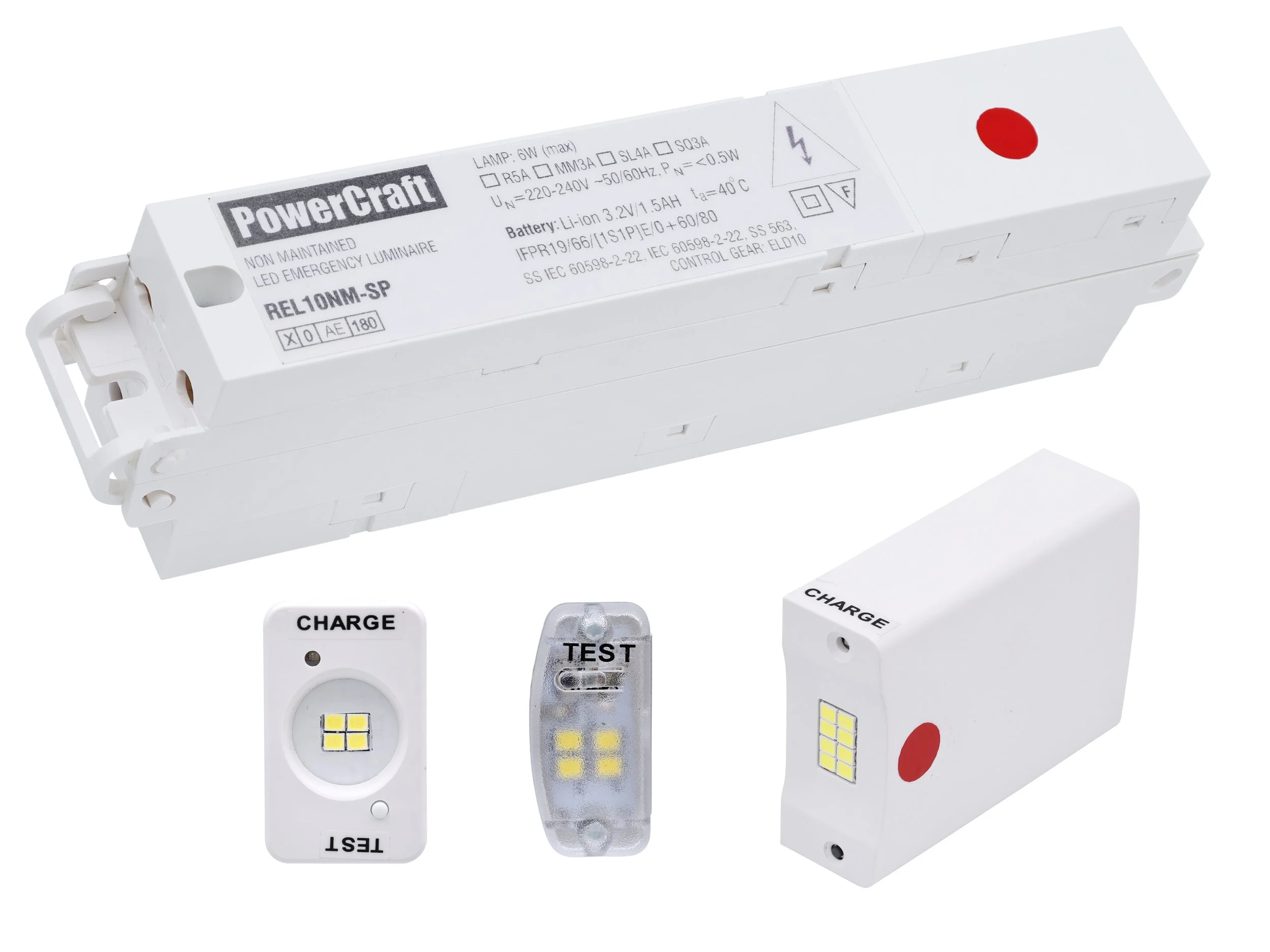

REL10NM-SP
Self-Contained LED
Prevent damage to fluorescent or LED lamps as it is independent from voltage and output from general lighting
Optimal and uniform light point spacing for anti-panic luminaires and escape route luminaires can be achieved
Reliability of the emergency modules is increased as the LED modules are addressed separately from the general lighting therefore aging effects are avoided
Easy wiring and full compatibility
DESIGNED TO DISCREETLY BLEND IN WITH YOUR GENERAL LIGHTING
DESIGNED TO DISCREETLY BLEND IN WITH YOUR GENERAL LIGHTING
Prevent damage to fluorescent or LED lamps as it is independent from voltage and output from general lighting
Optimal and uniform light point spacing for anti-panic luminaires and escape route luminaires can be achieved
Reliability of the emergency modules is increased as the LED modules are addressed separately from the general lighting therefore aging effects are avoided
Easy wiring and full compatibility

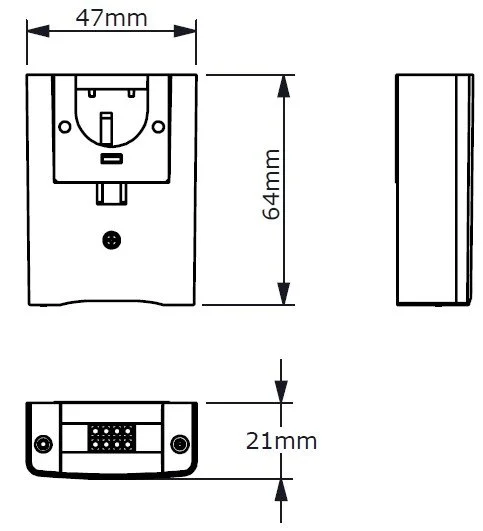

SL4A
TECHNICAL SPECIFICATIONS
REL10NM-SP
Model No:
Non-Maintained
Mode of Operation:

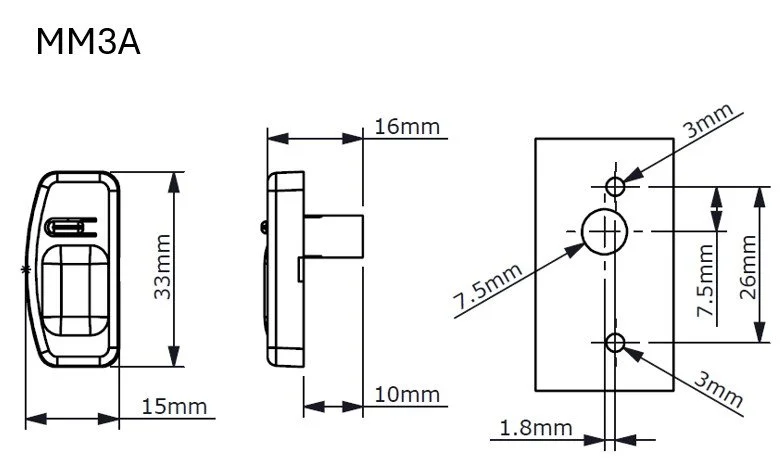

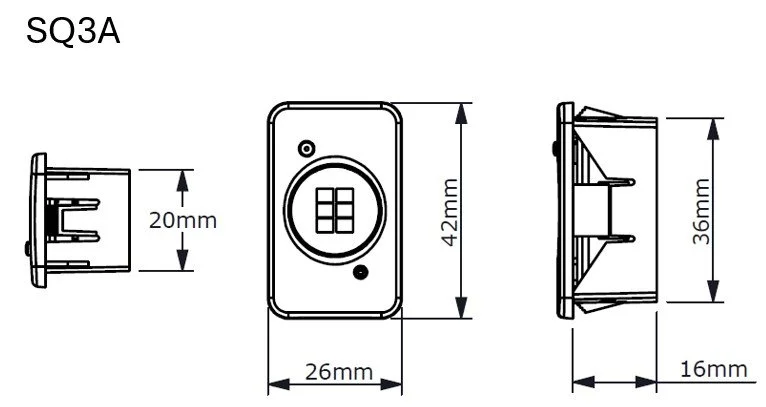

MM3A: 3W, SQ3A: 3W, SL4A: 4W
Lamp:
Rated Duration:
3 Hours
220-240 Volts, 50-60Hz
Mains Supply:
≤0.5W (on standby)
Power Consumption:
High Temperature Lithium LiFePO4
Battery:
Constant current / Constant voltage, short circuit protected
Charger:
LED
Charge Monitor:
Test Facility:
Momentary Test Switch
Low battery voltage cut off to prevent over discharge
Safety Features:
Fitting Construction:
Weight:
Injection moulded with fire retardant (UL94), high impact PC material
Approx. 0.2kg

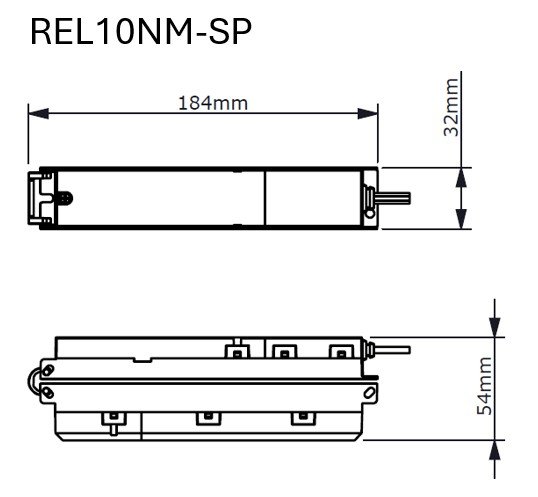

32mm (H) x 184mm (W) x 54mm (D)
Dimensions:
SS IEC 60598-2-22, SS 563, CB,IEC 61347-2-7, IEC 61347-2-13,IEC 62384, IEC 60598-1
Standards / Compliance:
