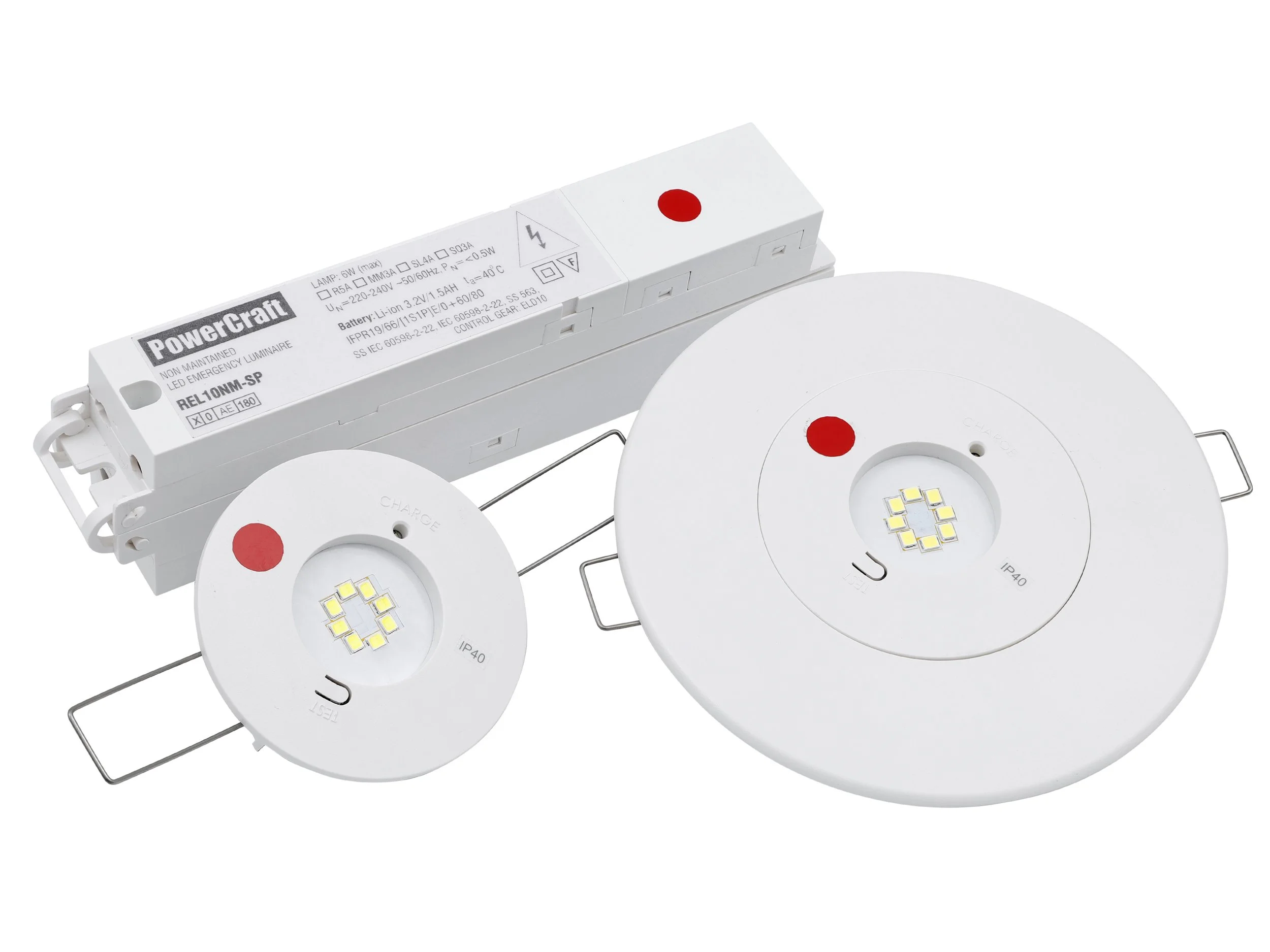

REL10NM-SP-SMART
Smart Recess LED
Eliminates the manpower cost to manually test and monitor the emergency lights
Real-time view of all the maintenance activities
Tracking failure in the LEDs or Backup batteries
Timely tests are executed on each maintenance routines
Dynamic online reporting via Visualization Chart are used or Trending of the performance of the different zones of emergency lighting
Test results are stored online for easy verification of the maintenance testing
Long life, environmental friendly Lithium Iron Phosphate (LiFeP04) battery
Low heat generation, ensures long and reliable service life
NON-MAINTAINED RECESS EMERGENCY LUMINAIRE WITH SELF TEST FUNCTION AND WIRELESS MONITORING SYSTEM
NON-MAINTAINED RECESS EMERGENCY LUMINAIRE WITH SELF TEST FUNCTION AND WIRELESS MONITORING SYSTEM
Eliminates the manpower cost to manually test and monitor the emergency lights
Real-time view of all the maintenance activities
Tracking failure in the LEDs or Backup batteries
Timely tests are executed on each maintenance routines
Dynamic online reporting via Visualization Chart are used or Trending of the performance of the different zones of emergency lighting
Test results are stored online for easy verification of the maintenance testing
Long life, environmental friendly Lithium Iron Phosphate (LiFeP04) battery
Low heat generation, ensures long and reliable service life
Cut Out
Cut Out
TECHNICAL SPECIFICATIONS
REL10NM-SP-SMART
Model No:
Non-Maintained
Mode of Operation:
6W White LED
Lamp:
Rated Duration:
3 Hours
220-240 Volts, 50-60Hz
Mains Supply:
≤0.5W (on standby)
Power Consumption:
High Temperature Lithium LiFePO4
Battery:
Charger:
Constant current / Constant voltage, short circuit protected
LED
Charge Monitor:
Momentary Test Switch / Wireless Self Test
Test Facility:
Low battery voltage cut off to prevent over discharge
Safety Features:
Fitting Construction:
Weight:
Injection moulded with fire retardant (UL94), high impact PC material
Approx. 0.2kg

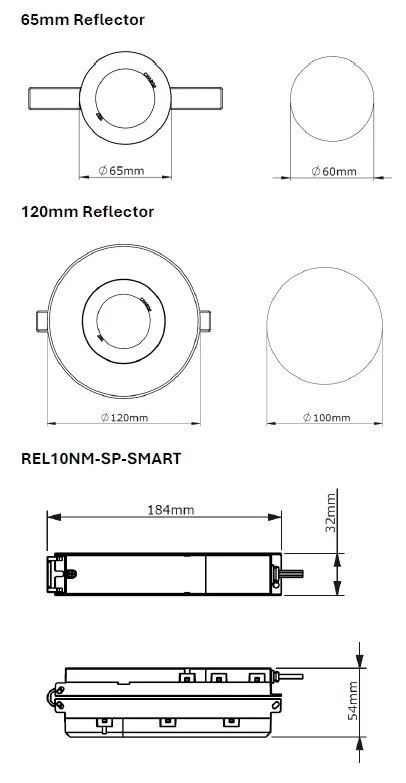

32mm (H) x 184mm (W) x 54mm (D)
Dimensions:
SS IEC 60598-2-22, SS 563, CB,IEC 61347-2-7, IEC 61347-2-13,IEC 62384, IEC 60598-1
Standards / Compliance:
