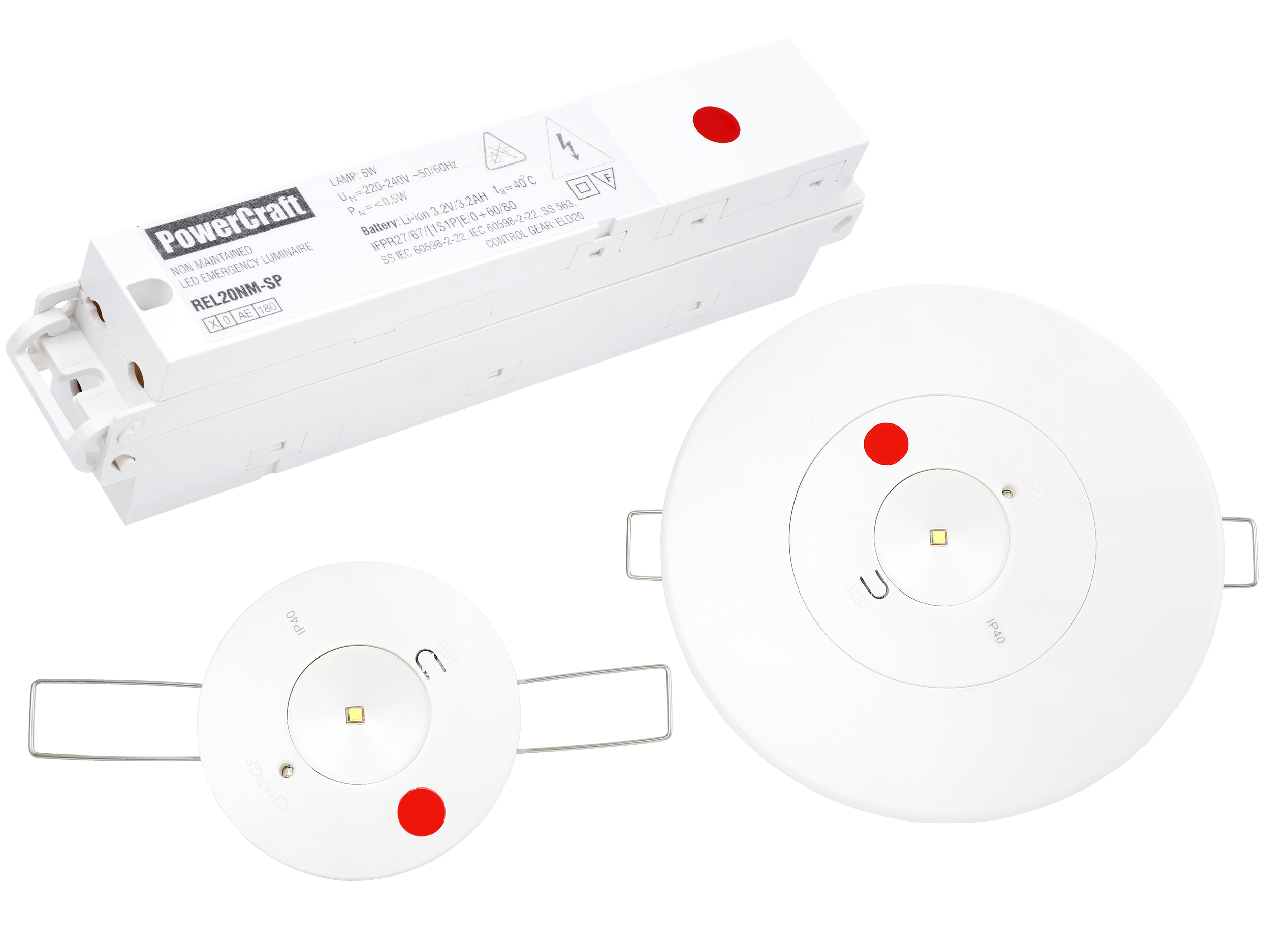

REL20NM-SP
Recess LED
STYLISH AND HIGH PERFORMANCE RECESS EMERGENCY LUMINAIRE ALLOWS INCREASED LUMINAIRE SPACING
Long life, environmental friendly Lithium Iron Phosphate (LiFeP04) battery
Low heat generation, ensures long and reliable service life
Optimal for anti-panic (open area) and escape route lighting applications
High brightness, wide angle LED
Slim casing, fits through 55-60mm cut hole
Recess mount
STYLISH AND HIGH PERFORMANCE RECESS EMERGENCY LUMINAIRE ALLOWS INCREASED LUMINAIRE SPACING
Long life, environmental friendly Lithium Iron Phosphate (LiFeP04) battery
Low heat generation, ensures long and reliable service life
Optimal for anti-panic (open area) and escape route lighting applications
High brightness, wide angle LED
Slim casing, fits through 55-60mm cut hole
Recess mount

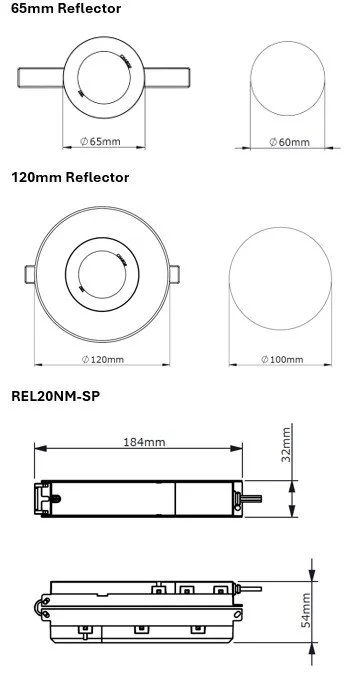

Cut Out
Cut Out
TECHNICAL SPECIFICATIONS
REL20NM-SP
Model No:
Non-Maintained
Mode of Operation:
5W Wide Angle LED
Lamp:
Rated Duration:
3 Hours
220-240 Volts, 50-60Hz
Mains Supply:
≤0.5W (on standby)
Power Consumption:
High Temperature Lithium LiFePO4
Battery:
Constant current / Constant voltage, short circuit protected
Charger:
LED
Charge Monitor:
Test Facility:
Momentary Test Switch
Low battery voltage cut off to prevent over discharge
Safety Features:
Fitting Construction:
Weight:
Injection moulded with fire retardant (UL94), high impact PC material
Approx. 0.3kg
32mm (H) x 184mm (W) x 54mm (D)
Dimensions:
SS IEC 60598-2-22, SS 563, CB,IEC 61347-2-7, IEC 61347-2-13,IEC 62384, IEC 60598-1
Standards / Compliance:
