REL50NM-CU
Recess LED
NON-MAINTAINED COMPACT RECESS EMERGENCY LUMINAIRE
Ideal for ceiling height which is above 10 meters
All in One Compact design for fast installation and easy maintenence
Long life, environmental friendly Lithium Iron Phosphate (LiFeP04) battery
Low battery voltage cut-off with latch function, to eliminate battery over-discharge
Optimal for anti-panic (open area) and escape route lighting applications
Recess mount
NON-MAINTAINED COMPACT RECESS EMERGENCY LUMINAIRE
Ideal for ceiling height which is above 10 meters
All in One Compact design for fast installation and easy maintenence
Long life, environmental friendly Lithium Iron Phosphate (LiFeP04) battery
Low battery voltage cut-off with latch function, to eliminate battery over-discharge
Optimal for anti-panic (open area) and escape route lighting applications
Recess mount

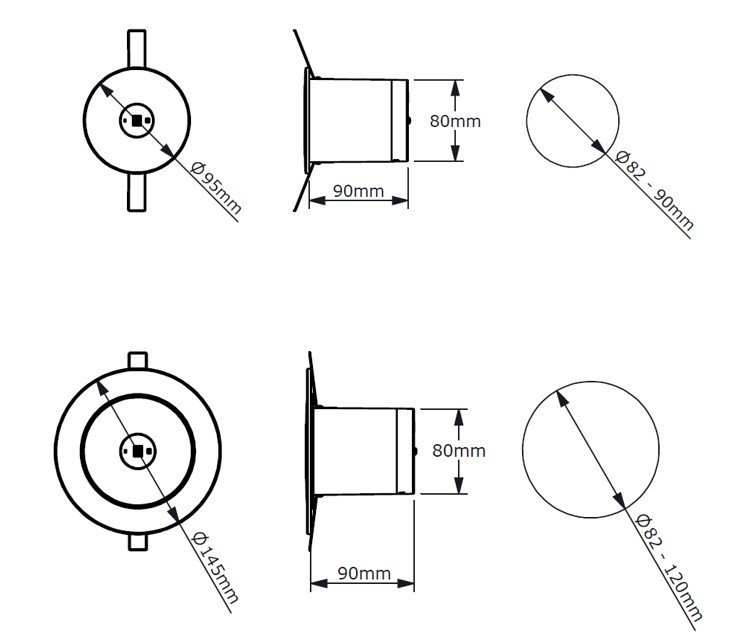

Cut Out
Cut Out
TECHNICAL SPECIFICATIONS
REL50NM-CU
Model No:
Non-Maintained
Mode of Operation:
12W White LED
Lamp:
Rated Duration:
3 Hours
220-240 Volts, 50-60Hz
Mains Supply:
<0.5W
Power Consumption:
High Temperature Lithium LiFePO4
Battery:
Constant current / Constant voltage, short circuit protected
Charger:
LED
Charge Monitor:
Test Facility:
Momentary Test Switch
Low battery voltage cut off to prevent over discharge
Safety Features:
Fitting Construction:
Weight:
Injection moulded with fire retardant (UL94), high impact PC material
Approx. 0.3kg
SS IEC 60598-2-22, SS 563, CB,IEC 61347-2-7, IEC 61347-2-13,IEC 62384, IEC 60598-1
Standards / Compliance:
