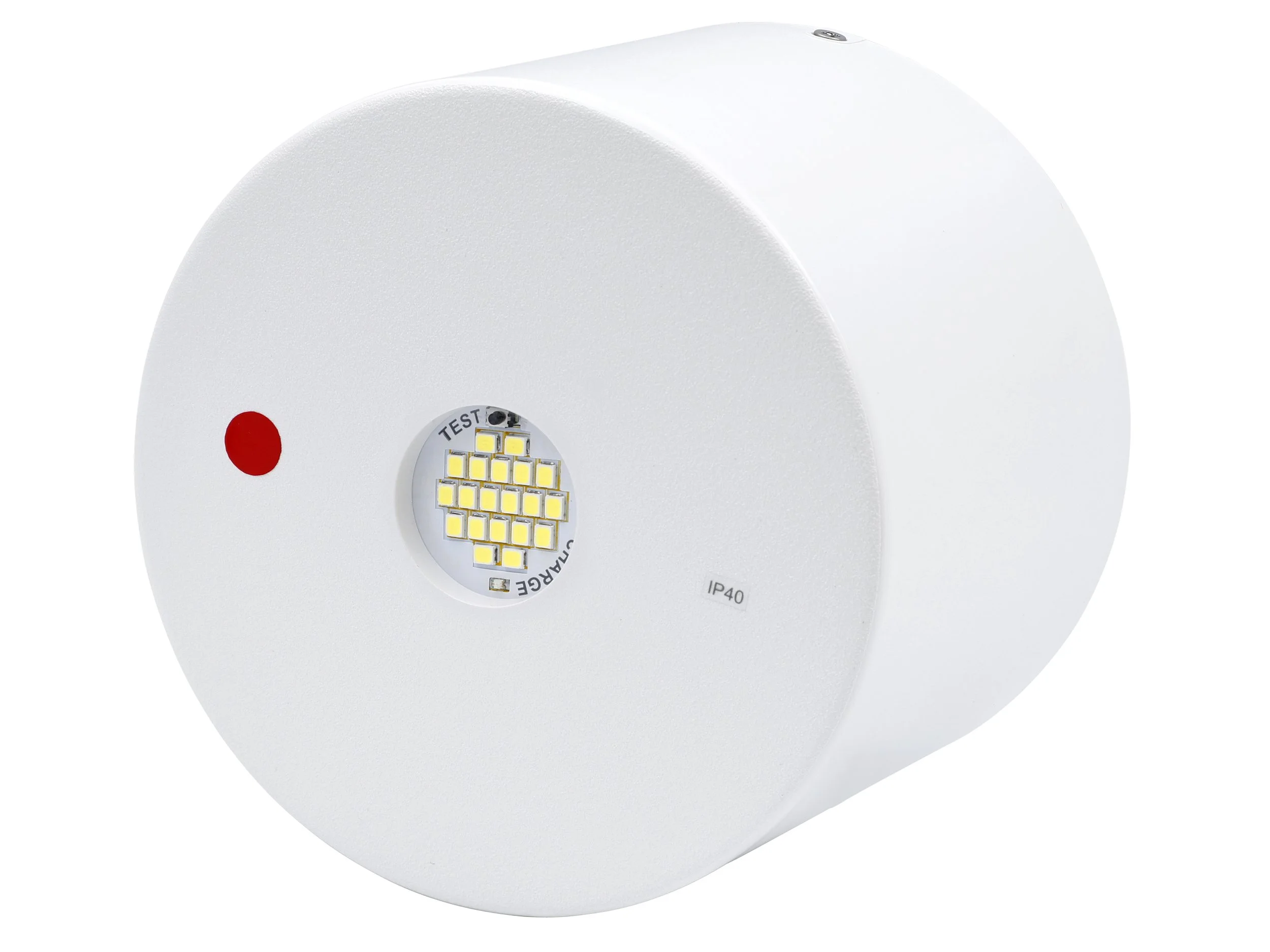

REL50NM-CY
Surface LED
NON-MAINTAINED SURFACE MOUNT CYLINDRICAL EMERGENCY LUMINAIRE
Ideal for ceiling height which is above 10 meters
Quick fit, cylindrical design for fast installation and maintenence
Long life, environmental friendly Lithium Iron Phosphate (LiFeP04) battery
High Quality, Long Life LED module
Surface mount
Maximum efficiency and perfect light distribution that result to very wide spacing thus lesser number of emergency luminaires are needed in conformity with relevant standards
NON-MAINTAINED SURFACE MOUNT CYLINDRICAL EMERGENCY LUMINAIRE
Ideal for ceiling height which is above 10 meters
Quick fit, cylindrical design for fast installation and maintenence
Long life, environmental friendly Lithium Iron Phosphate (LiFeP04) battery
High Quality, Long Life LED module
Surface mount
Maximum efficiency and perfect light distribution that result to very wide spacing thus lesser number of emergency luminaires are needed in conformity with relevant standards
TECHNICAL SPECIFICATIONS
REL50NM-CY
Model No:
Non-Maintained
Mode of Operation:
12W White LED
Lamp:
Rated Duration:
3 Hours
220-240 Volts, 50-60Hz
Mains Supply:
<0.5W
Power Consumption:
High Temperature Lithium LiFePO4
Battery:
Constant current / Constant voltage, short circuit protected
Charger:
LED
Charge Monitor:
Test Facility:
Momentary Test Switch
Low battery voltage cut off to prevent over discharge
Safety Features:
Fitting Construction:
Weight:
Injection moulded with fire retardant (UL94), high impact PC material
Approx. 0.5kg
SS IEC 60598-2-22, SS 563, CB, IEC 61347-2-7, IEC 61347-2-13, IEC 62384, IEC 60598-1
Standards / Compliance:
