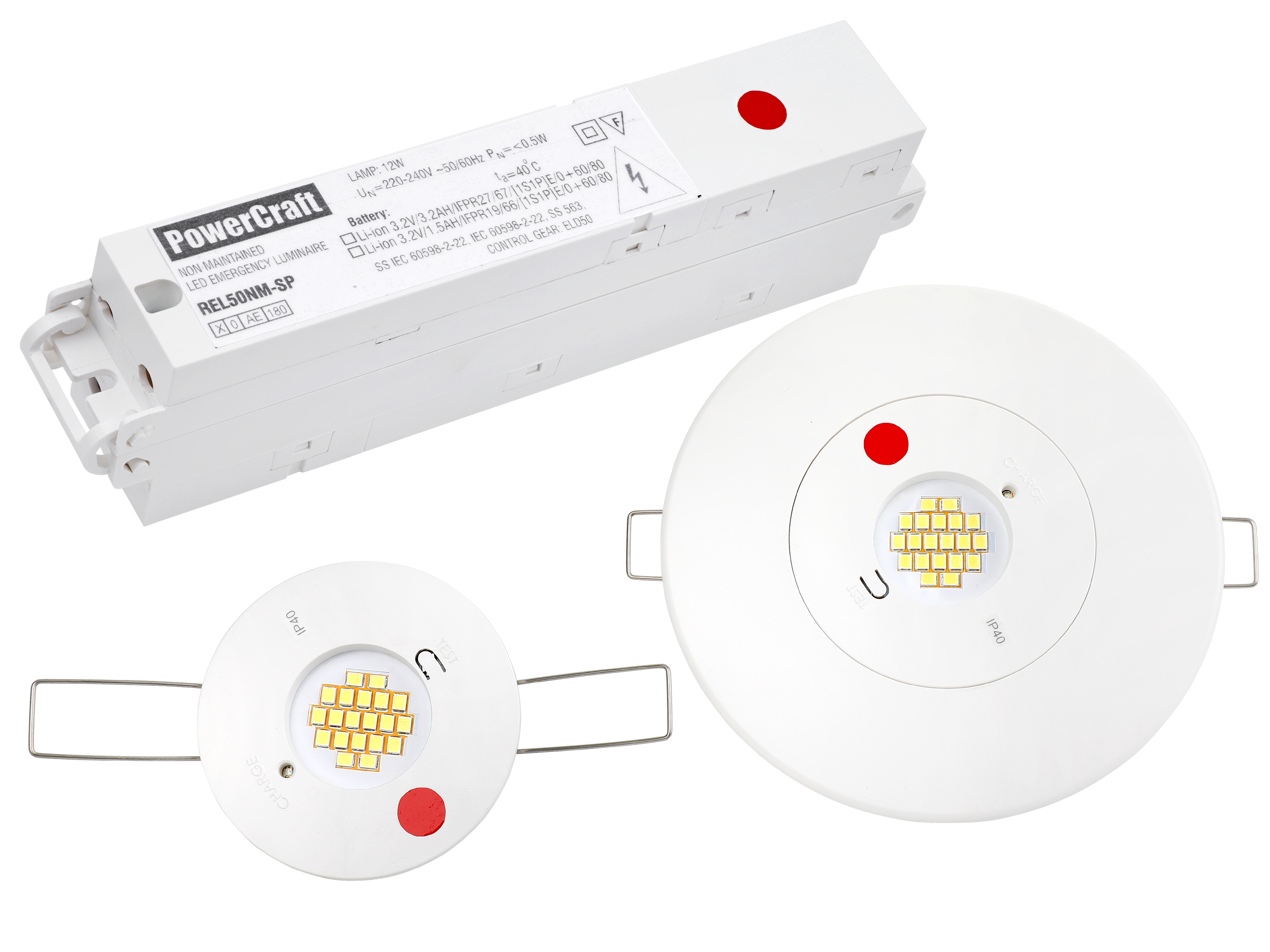

REL50NM-SP
Recess LED
Ideal for ceiling height which is above 10 meters
Long life, environmental friendly Lithium Iron Phosphate
(LiFeP04) battery
Optimal for anti-panic (open area) and escape route lighting applications
High lumen output
Slim casing, fits through 55-60mm cut hole
Recess mount
NON-MAINTAINED RECESS EMERGENCY LUMINAIRE
NON-MAINTAINED RECESS EMERGENCY LUMINAIRE
Ideal for ceiling height which is above 10 meters
Long life, environmental friendly Lithium Iron Phosphate
(LiFeP04) battery
Optimal for anti-panic (open area) and escape route lighting applications
High lumen output
Slim casing, fits through 55-60mm cut hole
Recess mount

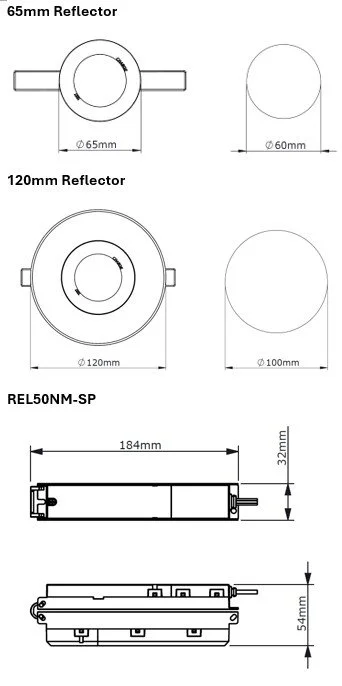

Cut Out
Cut Out
TECHNICAL SPECIFICATIONS
REL50NM-SP
Model No:
Non-Maintained
Mode of Operation:
12W White LED
Lamp:
Rated Duration:
3 Hours
220-240 Volts, 50-60Hz
Mains Supply:
≤0.5W (on standby)
Power Consumption:
High Temperature Lithium LiFePO4
Battery:
Charger:
Constant current / Constant voltage, short circuit protected
LED
Charge Monitor:
Test Facility:
Momentary Test Switch
Low battery voltage cut off to prevent over discharge
Safety Features:
Fitting Construction:
Weight:
Injection moulded with fire retardant (UL94), high impact PC material
Approx. 0.3kg
32mm (H) x 184mm (W) x 54mm (D)
Dimensions:
SS IEC 60598-2-22, SS 563, CB, IEC 61347-2-7, IEC 61347-2-13,IEC 62384, IEC 60598-1
Standards / Compliance:
