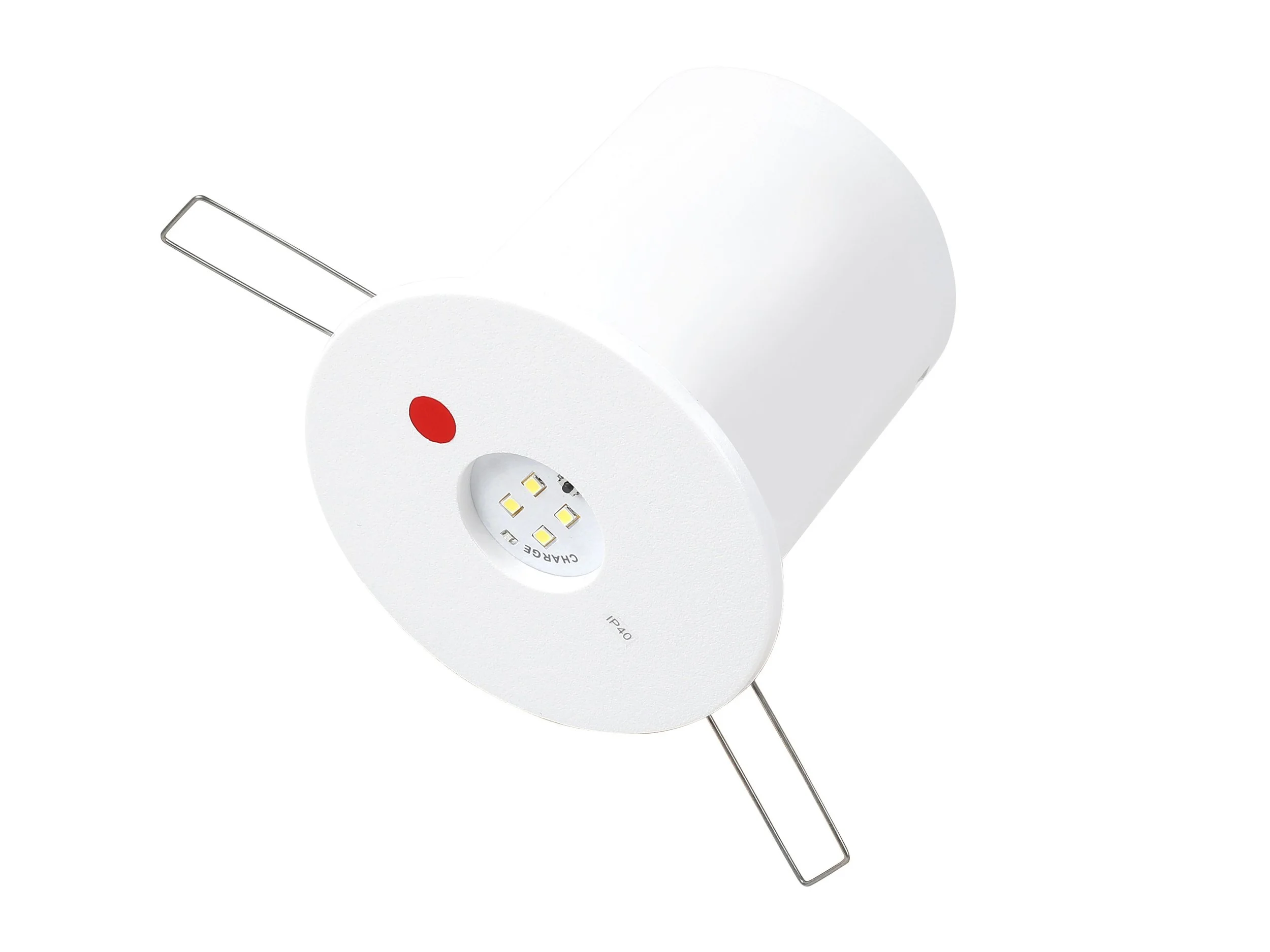

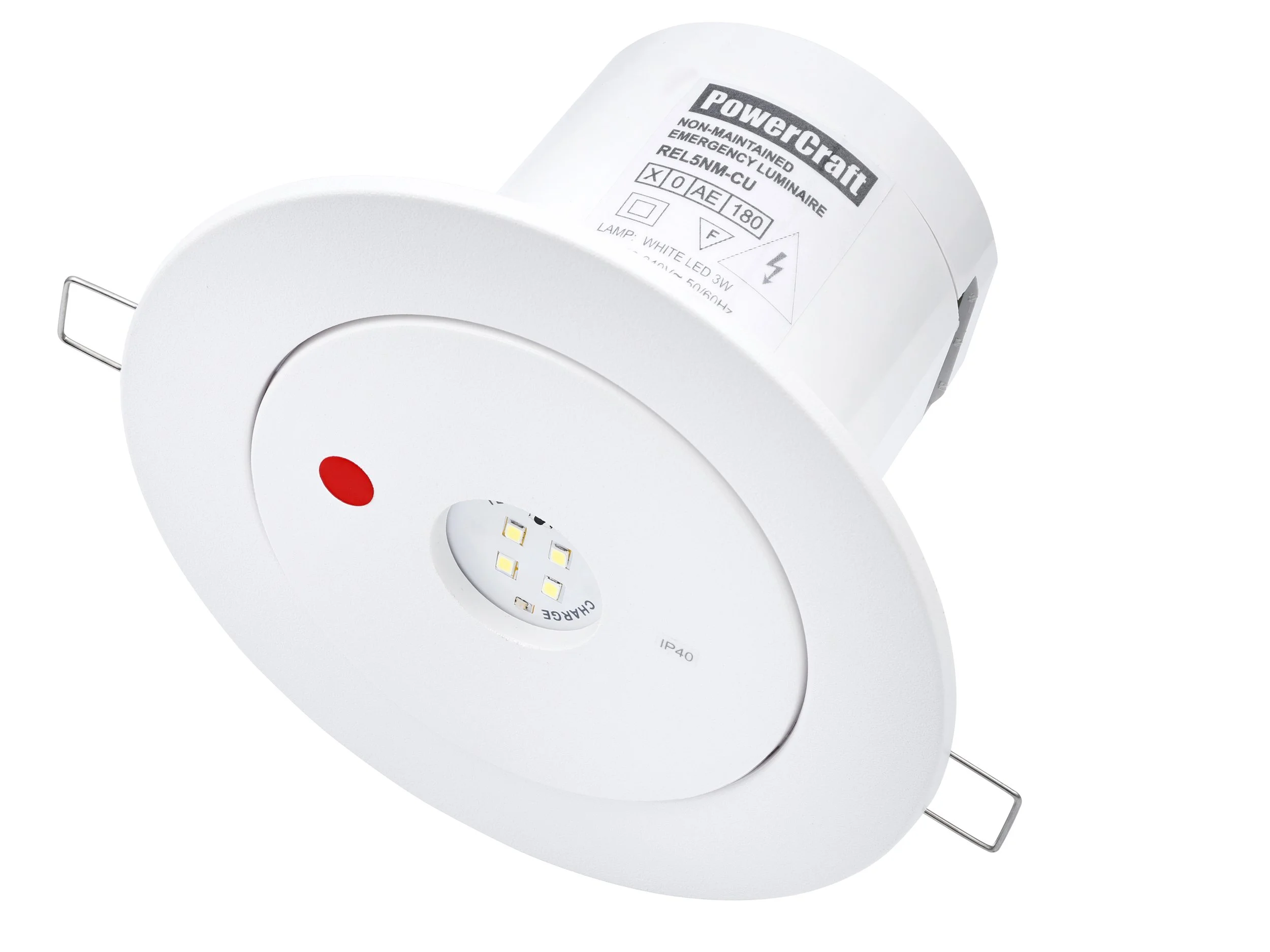

REL5NM-CU
Compact Recess LED
NON-MAINTAINED COMPACT RECESS EMERGENCY LUMINAIRE
All in One Compact design for fast installation and easy maintenance
Long life, environmental friendly Lithium Iron Phosphat (LiFePO4) battery
Low heat generation, ensures long and reliable service life
Low battery voltage cut-off with latch function, to elimate battery
over discharge
Charge LED indicator and test switch
Optimal for anti-panic (open area) and escape route lighting applications
High Quality, Long Life LED module
Energy savings, extra low standby power consumption
Recess mount
NON-MAINTAINED COMPACT RECESS EMERGENCY LUMINAIRE
All in One Compact design for fast installation and easy maintenance
Long life, environmental friendly Lithium Iron Phosphat (LiFePO4) battery
Low heat generation, ensures long and reliable service life
Low battery voltage cut-off with latch function, to elimate battery
over discharge
Charge LED indicator and test switch
Optimal for anti-panic (open area) and escape route lighting applications
High Quality, Long Life LED module
Energy savings, extra low standby power consumption
Recess mount

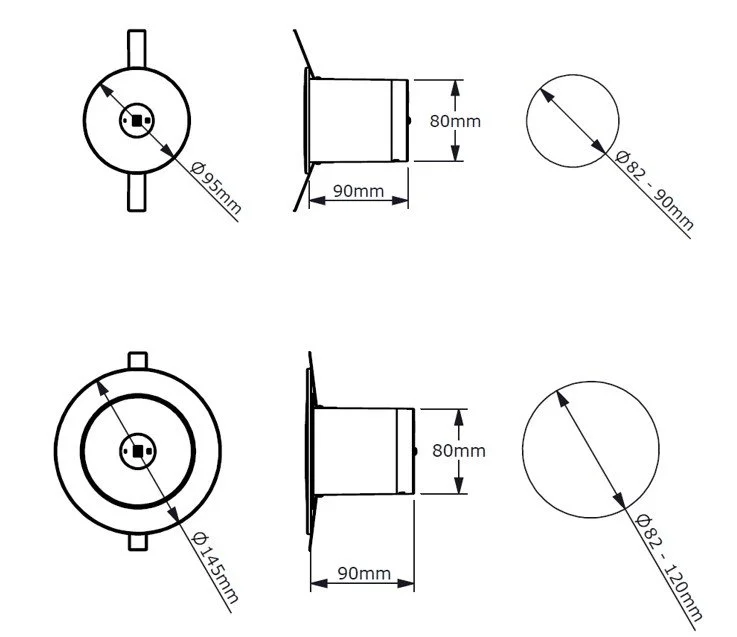

Cut Out
Cut Out
TECHNICAL SPECIFICATIONS
REL5NM-CU
Model No:
Non-Maintained
Mode of Operation:
3W White LED
Lamp:
Rated Duration:
3 Hours
220-240 Volts, 50-60Hz
Mains Supply:
≤0.5W
Power Consumption:
High Temperature Lithium LiFePO4 / High Temperature Nickel Cadmium
Battery:
Constant current / Constant voltage, short circuit protected
Charger:
LED
Charge Monitor:
Momentary Test Switch
Test Facility:
Low battery voltage cut off to prevent over discharge
Safety Features:
Fitting Construction:
Weight:
Injection moulded with fire retardant (UL94), high impact PC material
Approx. 0.2kg
SS IEC 60598-2-22, SS 563, CB, IEC 61347-2-7, IEC 61347-2-13, IEC 62384, IEC 60598-1
Standards / Compliance:
