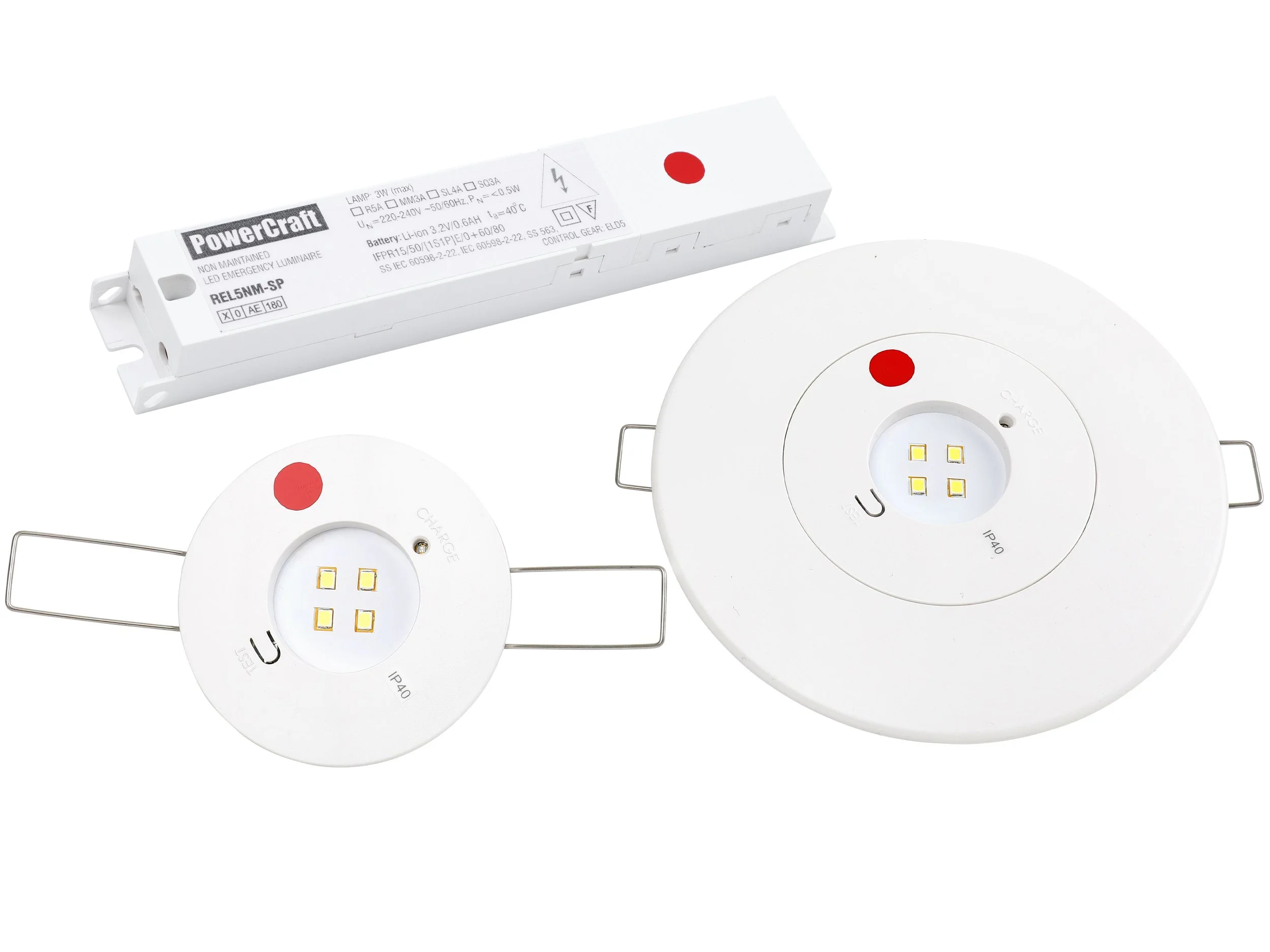

REL5NM-SP
Recess LED
Long life, environmental friendly Lithium Iron
Phosphate (LiFePO4) battery.
Low Heat generation, ensures long and reliable service life
Low battery voltage cut-off with latch function, to eliminate battery over discharge
Charge LED indicator and test switch
Optimal for anti-panic (open area) and escape route lighting applications
High Quality, Long life LED module
Energy saving, extra low standby power consumption
Slim casing, fit through 55-60mm hole
Easy installation and low maintenance
Recess mount
NON-MAINTAINED RECESS EMERGENCY LUMINAIRE
NON-MAINTAINED RECESS EMERGENCY LUMINAIRE
Long life, environmental friendly Lithium Iron
Phosphate (LiFePO4) battery.
Low Heat generation, ensures long and reliable service life
Low battery voltage cut-off with latch function, to eliminate battery over discharge
Charge LED indicator and test switch
Optimal for anti-panic (open area) and escape route lighting applications
High Quality, Long life LED module
Energy saving, extra low standby power consumption
Slim casing, fit through 55-60mm hole
Easy installation and low maintenance
Recess mount
Cut Out
Cut Out
TECHNICAL SPECIFICATIONS
REL5NM-SP
Model No:
Non-Maintained
Mode of Operation:
3W White LED
Lamp:
Rated Duration:
3 Hours
220-240 Volts, 50-60Hz
Mains Supply:
≤0.5W (on standby)
Power Consumption:
High Temperature Lithium LiFePO4
Battery:
Charger:
Constant current / Constant voltage,short circuit protected
LED
Charge Monitor:
Momentary Test Switch
Test Facility:
Low battery voltage cut off to prevent over discharge
Safety Features:
Fitting Construction:
Weight:
Injection moulded with fire retardant (UL94), high impact PC material
Approx. 0.2kg
30mm (H) x 178mm (W) x 22mm (D)
Dimensions:
SS IEC 60598-2-22, SS 563, CB, IEC 61347-2-7, IEC 61347-2-13, IEC 62384, IEC 60598-1
Standards / Compliance:
