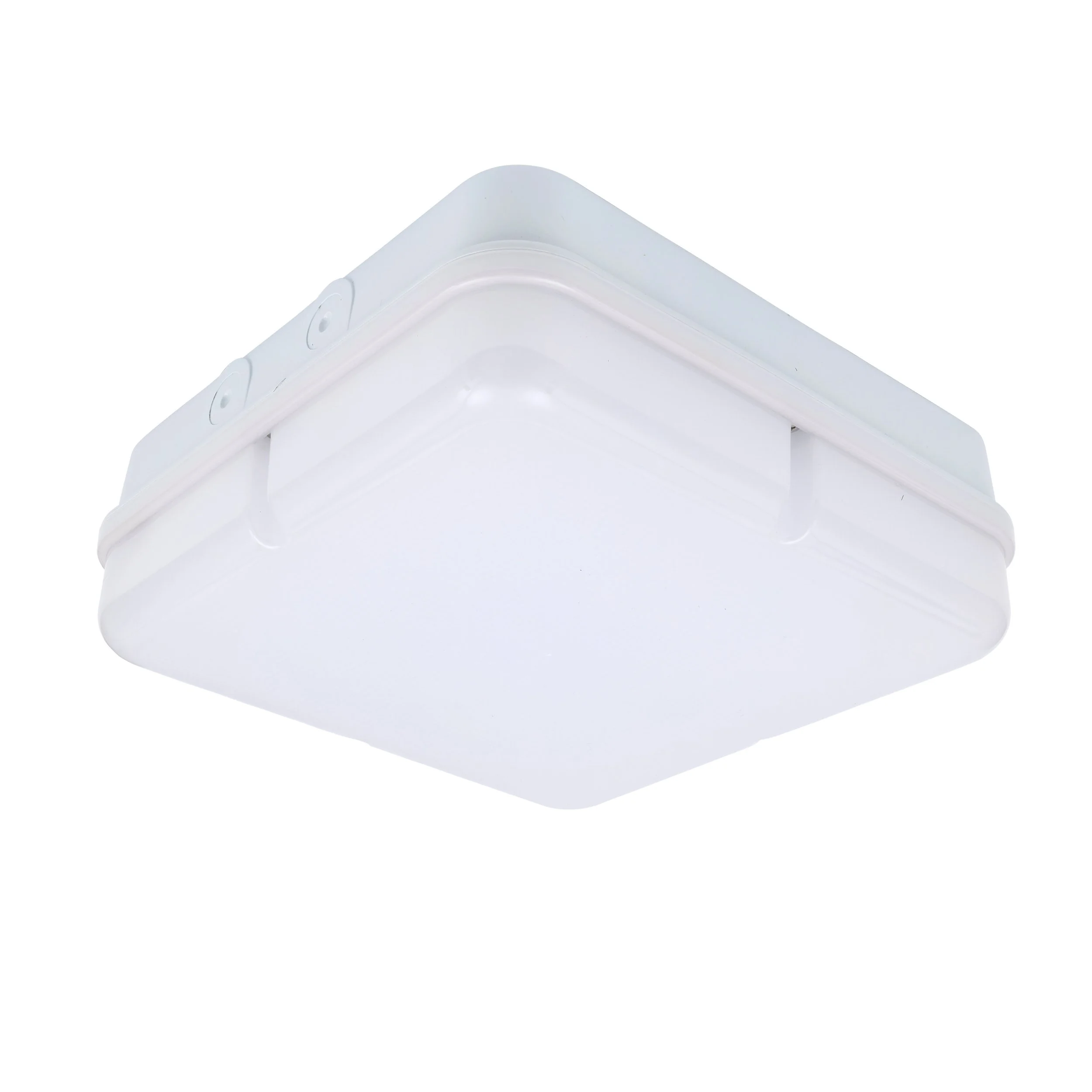

SQ340
IP65 Square Series
Moisture resistant, IP65 Square light ideal for installations in stairwells and walkways
Durable polycarbonate body and opal PC diffuser
Power selectable and/or CCT selectable options on request
Sensor ON/OFF or Step Dim available
Emergency light model available
SQUARE SURFACE LUMINAIRE WITH HIGH PERFORMANCE LED
SQUARE SURFACE LUMINAIRE WITH HIGH PERFORMANCE LED
Moisture resistant, IP65 Square light ideal for installations in stairwells and walkways
Durable polycarbonate body and opal PC diffuser
Power selectable and/or CCT selectable options on request
Sensor ON/OFF or Step Dim available
Emergency light model available
TECHNICAL SPECIFICATIONS
Model No:
Maintained Emergency SQ340EM xxW
Non-Emergency SQ340EM xxW
Mode of Operation:
Maintained
CRI:
>80
White LED
Lamp Type:
White LED
220-240 Volts, 50-60Hz
Mains Supply:
220-240 Volts, 50-60Hz
17W / 20W / 23W / 25W
Power Rating:
17W / 20W / 23W / 25W
Ingress Protection:
IP65
IP65
Colour Temperature:
3000K, 4000K, 6000K (Selectable)
3000K, 4000K, 6000K (Selectable)
>80
White polycarbonate body with an opal PC diffuser
Fitting Construction:
White polycarbonate body with an opal PC diffuser
High Temperature Nickel Cadmium / High Temperature Lithium LiFePO4
Battery:
2 Hours / 3 Hours
Rated Duration:
24 Hours
Recharge Period:
IEC 60598-1
ON/OFF Motion Sensor or Step Dim Sensor
Sensor Option:
IEC 60598-2-22
Standards / Compliance:
ON/OFF Motion Sensor or Step Dim Sensor
MAINTAINED EMERGENCY TECHNICAL SPECIFICATIONS
Model No:
Mode of Operation:
MAINTAINED EMERGENCY SQ340EM xxW
Maintained
Lamp Type:
Mains Supply:
White LED
220-240 Volts, 50-60Hz
Power Rating:
Ingress Protection:
<17W / 20W / 23W / 25W
IP65
Colour Temperature:
3000K, 4000K, 6000K (Selectable)
CRI:
Fitting Construction:
>80
White polycarbonate body with an opal PC diffuser
High Temperature Nickel Cadmium / High Temperature Lithium LiFePO4
Battery:
Rated Duration:
Recharge Period:
2 Hours / 3 Hours
24 Hours
IEC 60598-2-22
Sensor Option:
ON/OFF Motion Sensor or Step Dim Sensor
Standards / Compliance:
NON-EMERGENCY TECHNICAL SPECIFICATIONS
Model No:
Lamp Type:
NON-EMERGENCY SQ340 xxW
White LED
Mains Supply:
Power Rating:
220-240 Volts, 50-60Hz
<17W / 20W / 23W / 25W
Ingress Protection:
Colour Temperature:
IP65
3000K, 4000K, 6000K (Selectable)
CRI:
Fitting Construction:
>80
White polycarbonate body with an opal PC diffuser
IEC 60598-2-22
Sensor Option:
ON/OFF Motion Sensor or Step Dim Sensor
Standards / Compliance:
