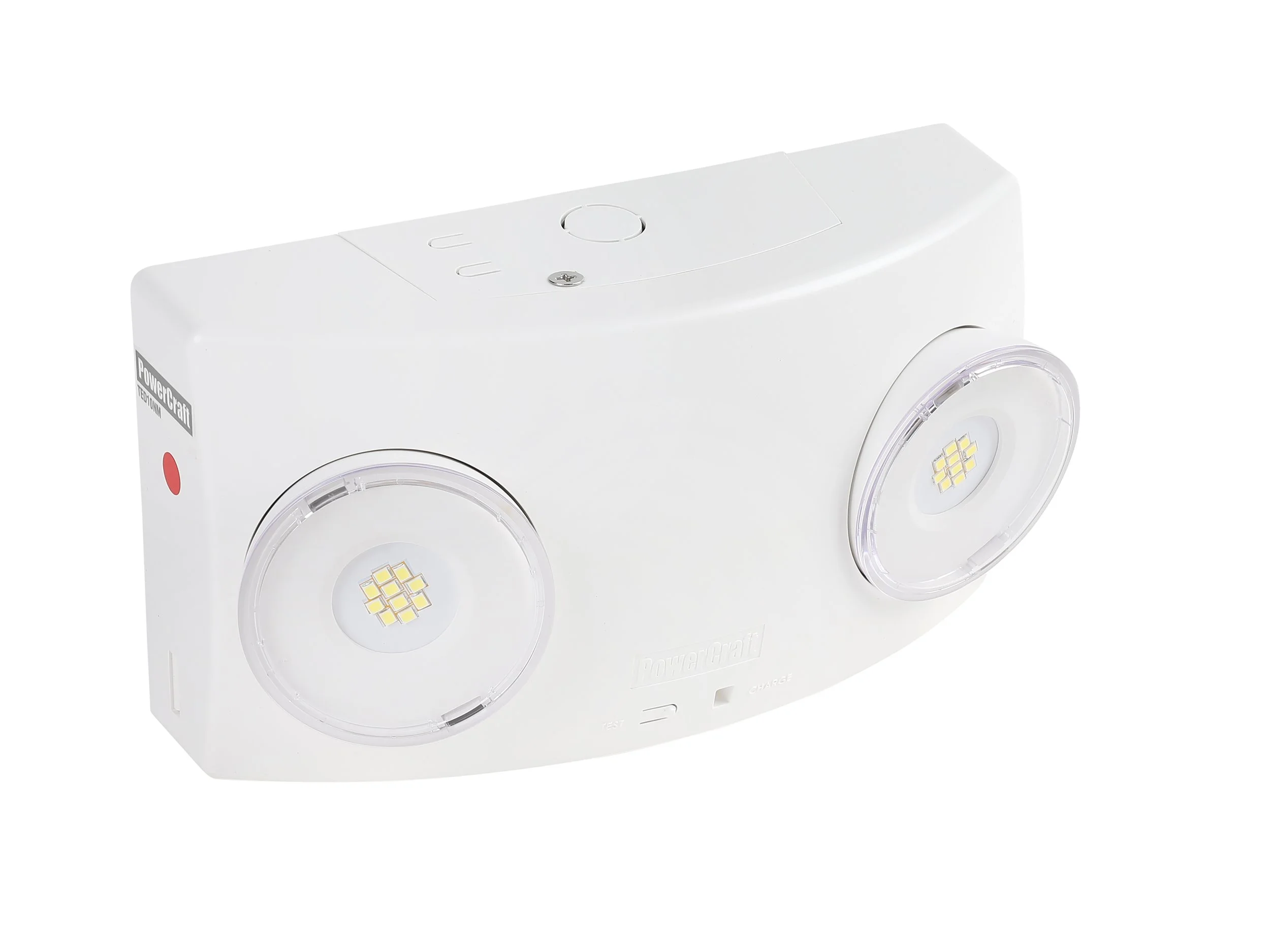

TED10NM-SMART
Smart Twin-Spot LED
ADJUSTABLE OPTICS FOR PERFECT ILLUMINATION WITH SMART SELF TEST AND MONITORING
Eliminates the manpower cost to manually test and monitor the
emergency lights
Real-time view of all the maintenance activities
Tracking failure in the LEDs or Backup batteries
Timely tests are executed on each maintenance routines
Dynamic Online Reporting via Visualization Chart are used for Trending of the performance of the different Zones of emergency lighting
Test results are stored online for easy verification of the maintenance testing.
ADJUSTABLE OPTICS FOR PERFECT ILLUMINATION WITH SMART SELF TEST AND MONITORING
Eliminates the manpower cost to manually test and monitor the
emergency lights
Real-time view of all the maintenance activities
Tracking failure in the LEDs or Backup batteries
Timely tests are executed on each maintenance routines
Dynamic Online Reporting via Visualization Chart are used for Trending of the performance of the different Zones of emergency lighting
Test results are stored online for easy verification of the maintenance testing.
TECHNICAL SPECIFICATIONS
TED10NM-SMART
Model No:
Non-Maintained
Mode of Operation:
2 x 3W Power LED Module
Lamp:
Rated Duration:
3 Hours
220-240 Volts, 50-60Hz
Mains Supply:
<1.5W
Power Consumption:
High Temperature Lithium LiFePO4
Battery:
Charger:
Constant current / Constant voltage, short circuit protected
LED
Charge Monitor:
Momentary Test Switch / Wireless Self Test
Test Facility:
Low battery voltage cut off to prevent over discharge
Safety Features:
Fitting Construction:
Weight:
Injection moulded with fire retardant (UL94), high impact PC material
Approx. 0.9kg

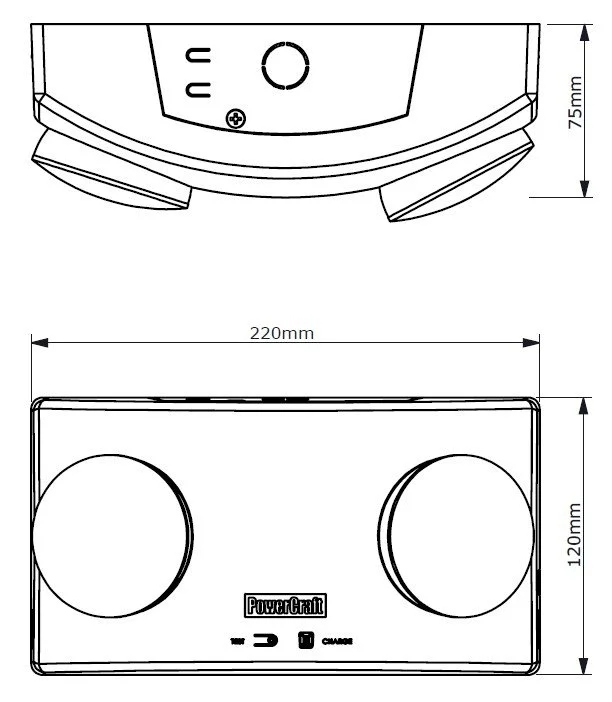

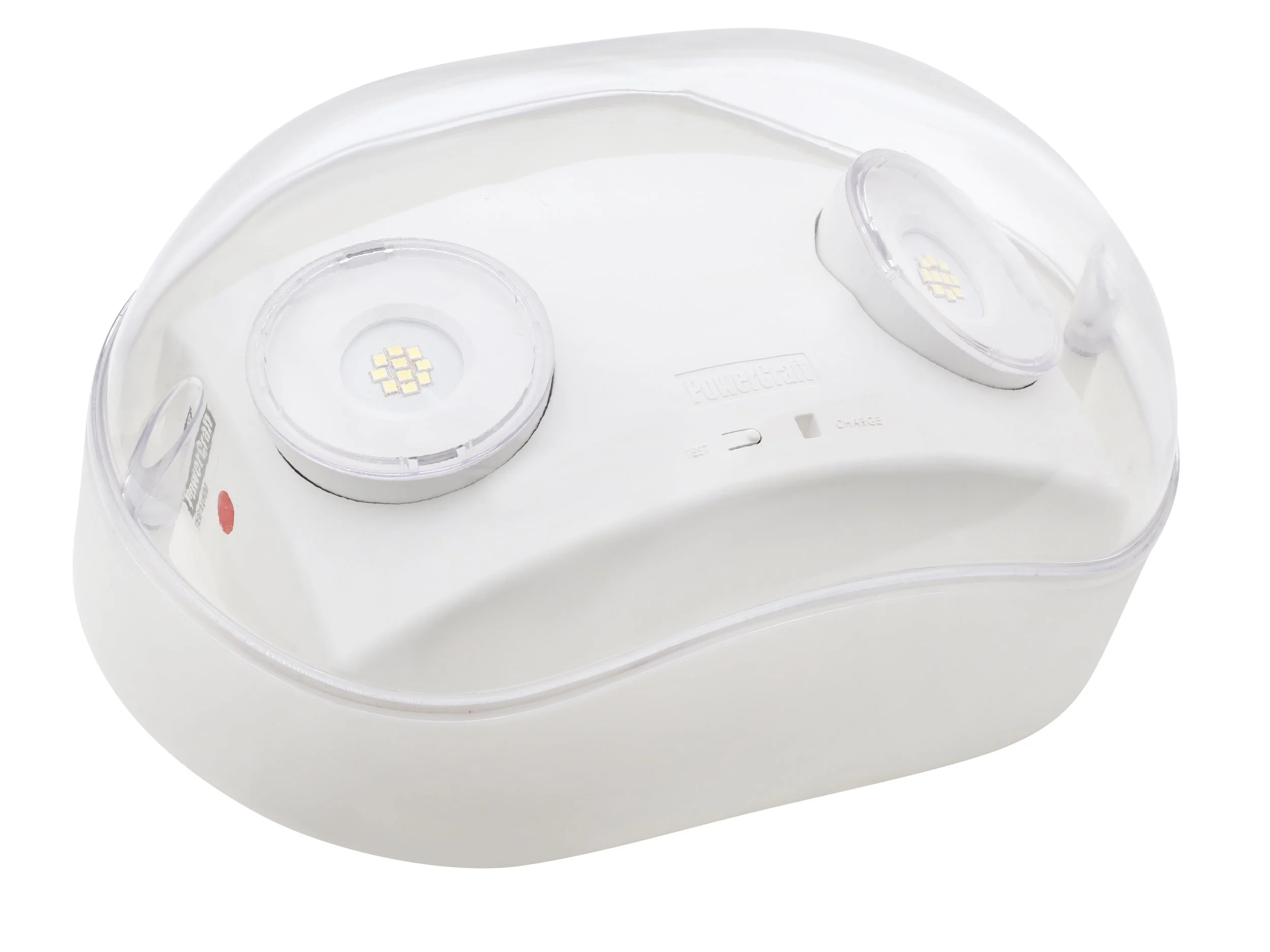

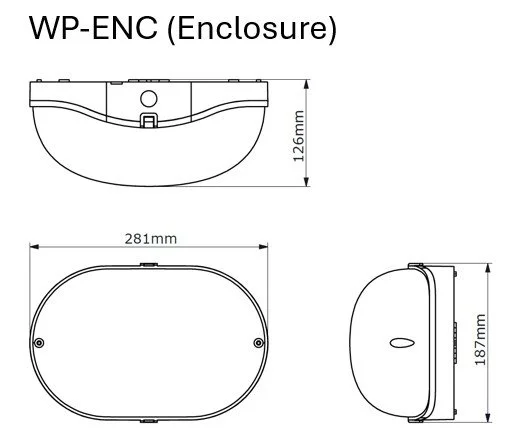

120mm (H) x 220mm (W) x 75mm (D)WP-ENC: 187mm (H) x 281mm (W) x 126mm (D)
Dimensions:
SS IEC 60598-2-22, SS 563
Standards / Compliance:
