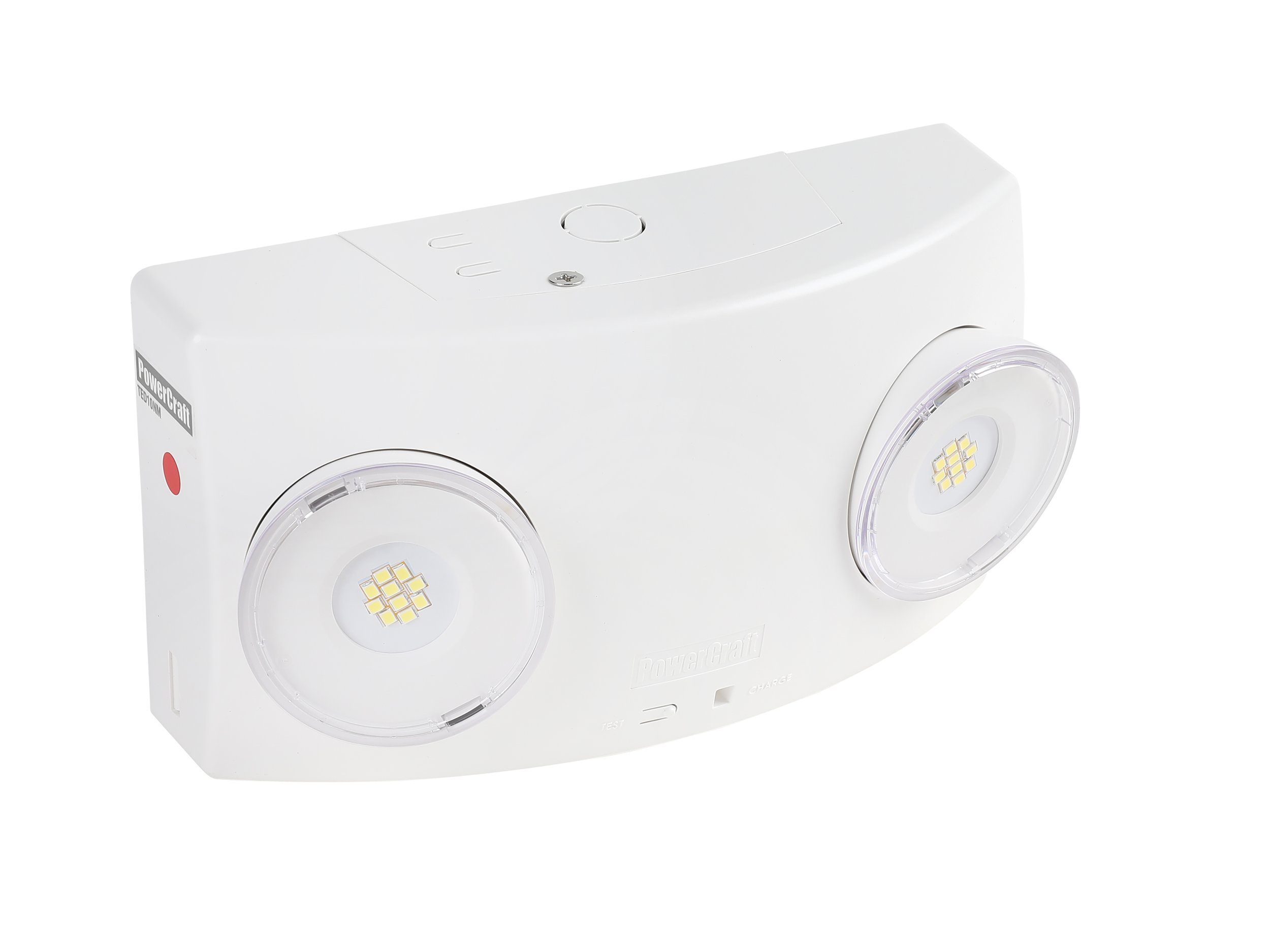

TED20NM
Twin-Spot LED
Snap in design ensures fast installation and easy maintenence
Low heat generation, ensures long and reliable service life
Low battery voltage cut-off with latch function, to eliminate battery over discharge
Perfect to use in large open areas and high risk task areas
Adjustable lens optimum for matching light output to applications
HIGHER LUMEN OUTPUT ALLOWING FOR WIDER COVERAGE AND GREATER SPACING
HIGHER LUMEN OUTPUT ALLOWING FOR WIDER COVERAGE AND GREATER SPACING
Snap in design ensures fast installation and easy maintenence
Low heat generation, ensures long and reliable service life
Low battery voltage cut-off with latch function, to eliminate battery over discharge
Perfect to use in large open areas and high risk task areas
Adjustable lens optimum for matching light output to applications
TECHNICAL SPECIFICATIONS
TED20NM
Model No:
Non-Maintained
Mode of Operation:
2 x 5W Power LED Module
Lamp:
Rated Duration:
3 Hours
220-240 Volts, 50-60Hz
Mains Supply:
<1.5W
Power Consumption:
High Temperature Lithium LiFePO4
Battery:
Charger:
Charge Monitor:
Constant current / Constant voltage, short circuit protected
LED
Test Facility:
Momentary Test Switch
Low battery voltage cut off to prevent over discharge
Safety Features:
Fitting Construction:
Weight:
Injection moulded with fire retardant (UL94), high impact PC material
Approx. 0.9kg

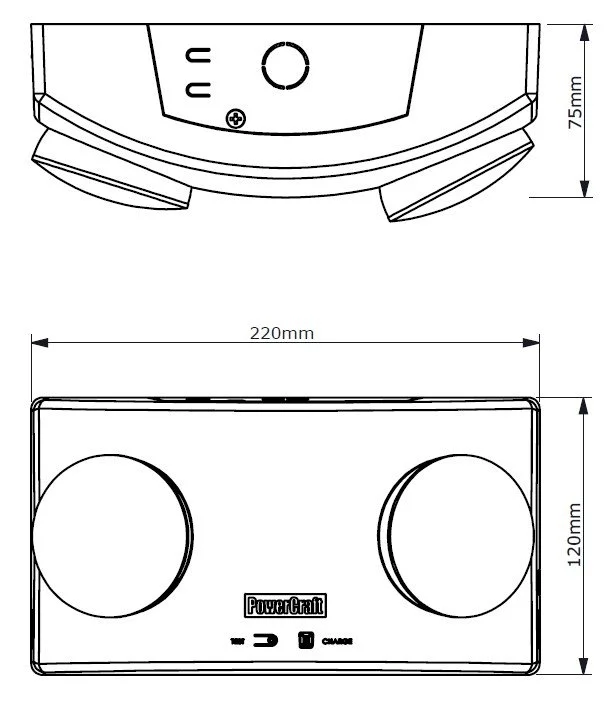

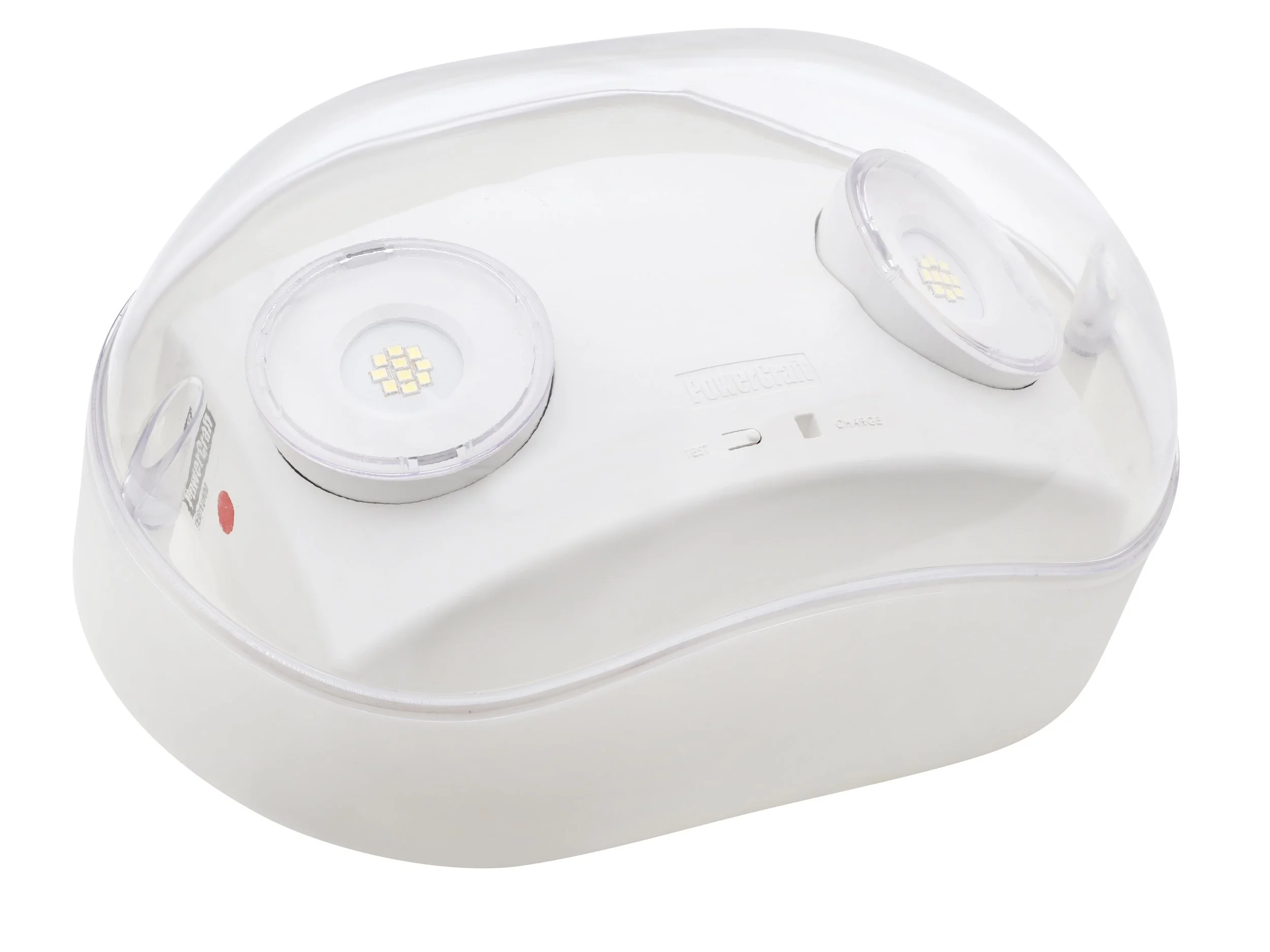

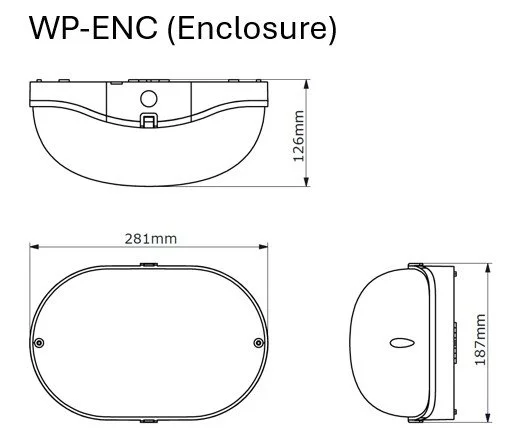

120mm (H) x 220mm (W) x 75mm (D)WP-ENC: 187mm (H) x 281mm (W) x 126mm (D)
Dimensions:
SS IEC 60598-2-22, SS 563
Standards / Compliance:
