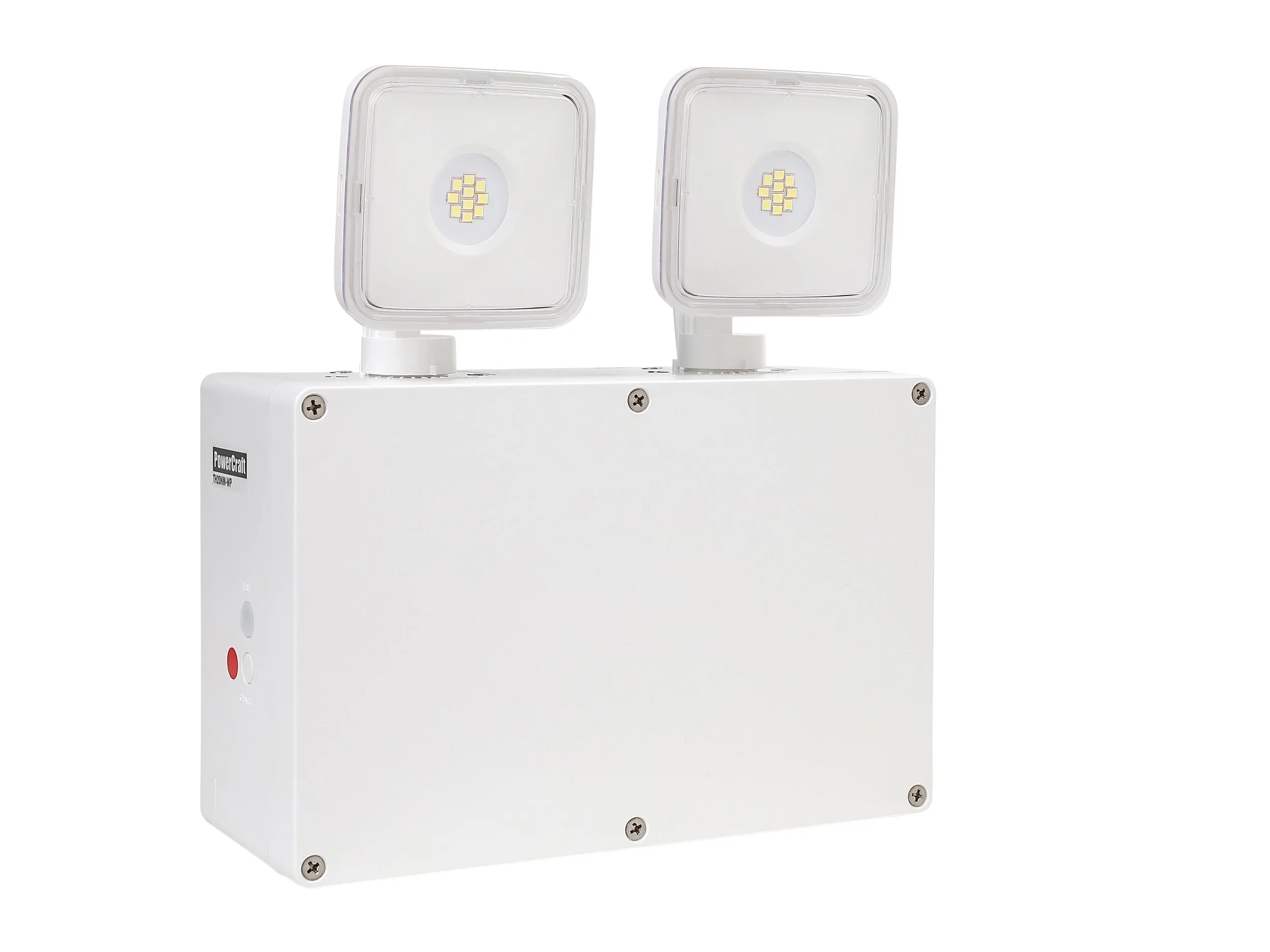

TH20NM-WP
Weatherproof Twin-Spot LED
OUR WEATHERPROOF TWIN-SPOT IS WELL PREPARED IN HARSH ENVIRONMENTAL CONDITIONS
Low Heat generation, ensures long and reliable service life.
Low battery voltage cut-off with latch function, to eliminate battery over discharge.
Charge LED indicator and test switch available
Weatherproof IP65 design suitable for indoor and outdoor applications
Adjustable lens optimum for matching light output to applications.
OUR WEATHERPROOF TWIN-SPOT IS WELL PREPARED IN HARSH ENVIRONMENTAL CONDITIONS
Low Heat generation, ensures long and reliable service life.
Low battery voltage cut-off with latch function, to eliminate battery over discharge.
Charge LED indicator and test switch available
Weatherproof IP65 design suitable for indoor and outdoor applications
Adjustable lens optimum for matching light output to applications.
TECHNICAL SPECIFICATIONS
TH20NM-WP
Model No:
Mode of Operation:
Lamp:
Non-Maintained
2 x 5W Power LED Module
Rated Duration:
3 Hours
220-240 Volts, 50-60Hz
Mains Supply:
Power Consumption:
<1.5W
Battery:
Charger:
High Temperature Lithium LiFePO4
Constant current / Constant voltage, short circuit protected
Charge Monitor:
Test Facility:
LED
Momentary Test Switch
Safety Features:
Low battery voltage cut off to prevent over discharge
Fitting Construction:
Injection moulded with fire retardant (UL94), high impact PC material
Weight:
Approx. 1.6kg
Dimensions:
Standards / Compliance:
230mm (H) x 250mm (W) x 85mm (D)
SS IEC 60598-2-22, SS 563
