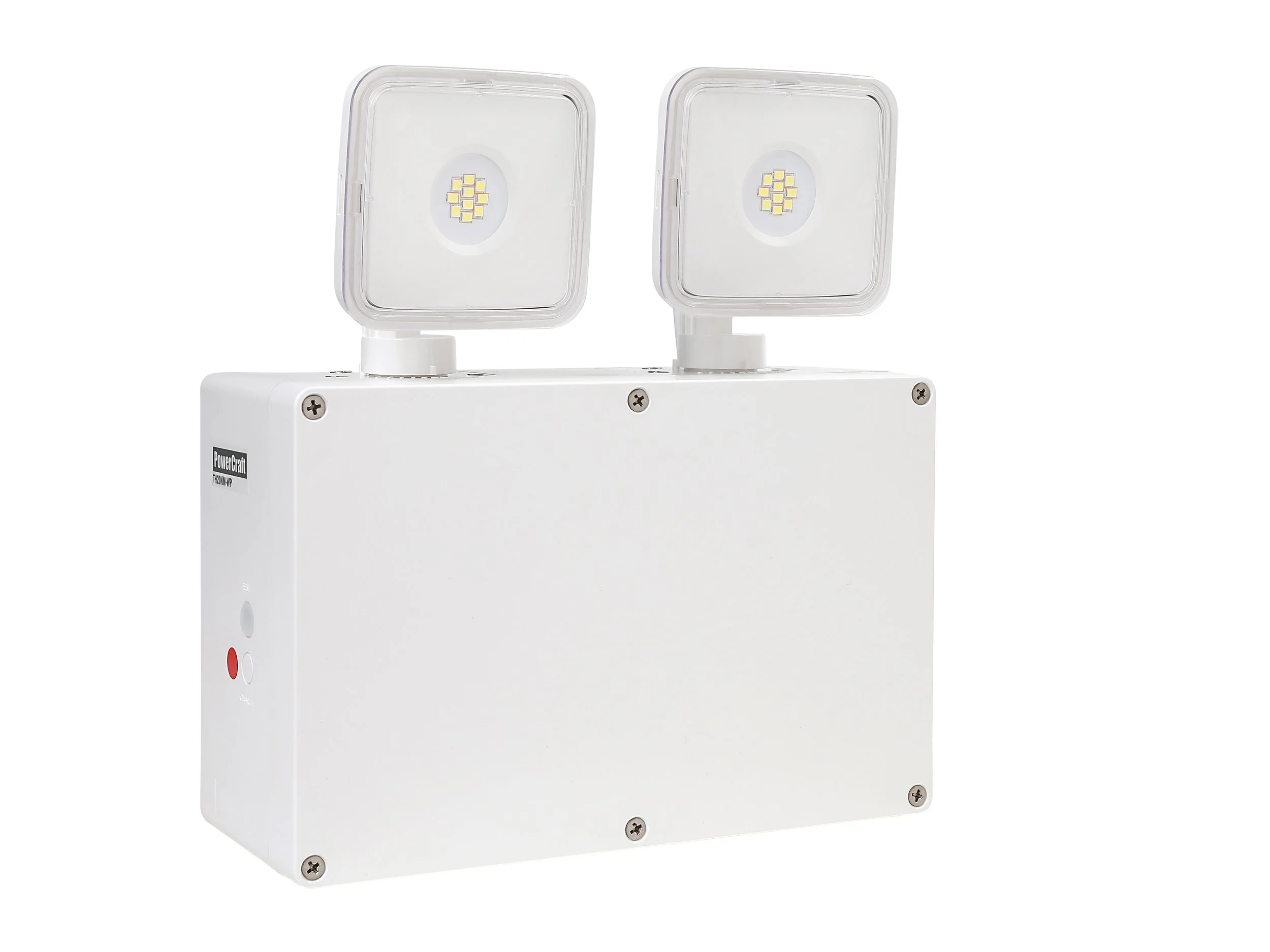

TH50NM-WP
Weatherproof Twin-Spot LED
HIGHER LUMEN OUTPUT ALLOWING FOR WIDER COVERAGE AND GREATEST SPACING
Low Heat generation, ensures long and reliable service life
Low battery voltage cut-off with latch function, to eliminate battery over discharge
Charge LED indicator and test switch available
Weatherproof IP65 design suitable for indoor and outdoor applications
Adjustable lens optimum for matching light output to applications
HIGHER LUMEN OUTPUT ALLOWING FOR WIDER COVERAGE AND GREATEST SPACING
Low Heat generation, ensures long and reliable service life
Low battery voltage cut-off with latch function, to eliminate battery over discharge
Charge LED indicator and test switch available
Weatherproof IP65 design suitable for indoor and outdoor applications
Adjustable lens optimum for matching light output to applications
TECHNICAL SPECIFICATIONS
TH50NM-WP
Model No:
Non-Maintained
Mode of Operation:
2 x 10W Power LED Module
Lamp:
Rated Duration:
3 Hours
220-240 Volts, 50-60Hz
Mains Supply:
<3W
Power Consumption:
High Temperature Lithium LiFePO4
Battery:
Constant current / Constant voltage, short circuit protected
Charger:
LED
Charge Monitor:
Test Facility:
Momentary Test Switch
Low battery voltage cut off to prevent over discharge
Safety Features:
Fitting Construction:
Weight:
Injection moulded with fire retardant (UL94), high impact PC material
Approx. 1.6kg

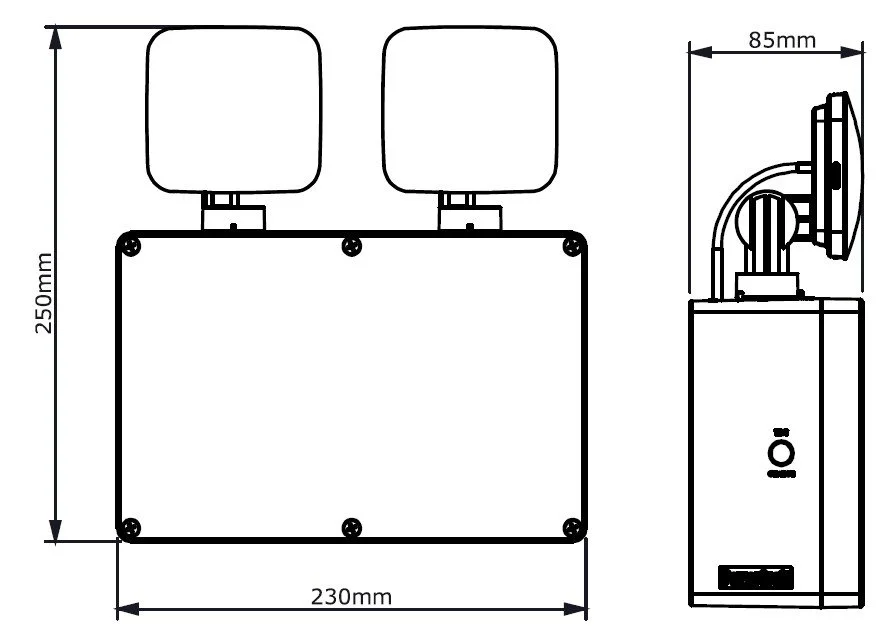

230mm (H) x 250mm (W) x 85mm (D)
Dimensions:
SS IEC 60598-2-22, SS 563
Standards / Compliance:
